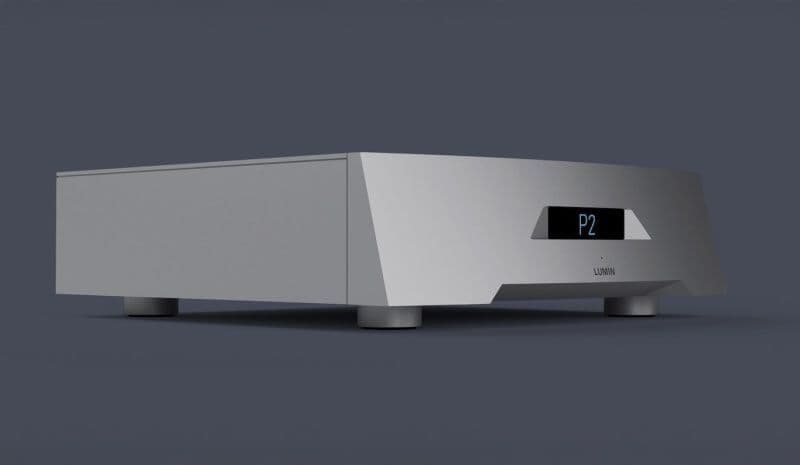

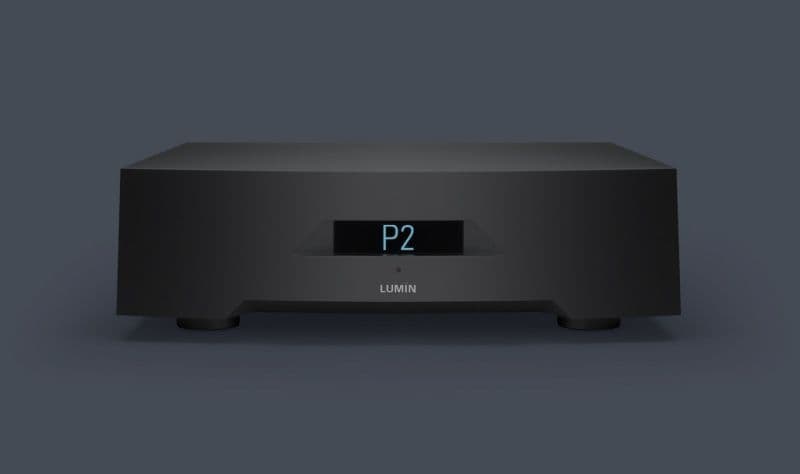

Lumin P2 Network Music Hub
Lumin P2 Network Music Hub
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
Engineered for complete digital and analogue system integration, the hub incorporates an SFP optical network connection for total isolation from Ethernet noise, alongside HDMI 2.0 switching with ARC support for 2-channel TV integration. Volume control is handled by Leedh Processing—an innovative, mathematically lossless digital volume algorithm—allowing the unit to drive power amplifiers directly without dynamic compression or bit-depth degradation.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Dual ESS SABRE ES9038PRO DACs: True dual-mono digital-to-analogue conversion utilizing a dedicated ES9038PRO DAC per channel for maximum dynamic range and crosstalk separation.
- Leedh Processing Volume Control: Lossless digital volume adjustment algorithm that eliminates rounding errors and dynamic compression when driving power amps directly.
- Optical Network Interface (SFP): Optical Fibre networking capability eliminates ground loops and electrical network noise transmitted over standard RJ45 copper connections.
- HDMI 2.0 & ARC Integration: Features 3x HDMI inputs and 1x HDMI output with ARC, 4K passthrough, and Dolby Vision / DTS passthrough for seamless 2-channel AV integration.
- Dual-Toroidal Linear Power Supply: Internal power supply section featuring independent toroidal transformers and linear regulation for analogue and digital stages.
- Lundahl Output Transformers: Fully balanced output stage coupled with premium Lundahl transformers to preserve signal purity and acoustic warmth.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Reference Network Streamer, DAC & Preamplifier Hub |
| DAC Architecture | Dual ESS SABRE ES9038PRO DACs (Dual-Mono Configuration) |
| Output Stage | Fully Balanced Circuitry with Dual Lundahl Output Transformers |
| Volume Control Engine | Leedh Processing (Lossless Digital Volume Algorithm) |
| Digital Audio Inputs | 1x USB Type-B (XMOS Controller), 1x AES/EBU (XLR), 1x Coaxial S/PDIF (RCA), 1x TOSLink Optical |
| AV Inputs & Outputs | 3x HDMI 2.0 Inputs | 1x HDMI Output (ARC, 4K Passthrough, Dolby Vision / Atmos Passthrough) |
| Analogue Inputs | 1x Stereo Pair Balanced XLR, 1x Stereo Pair Unbalanced RCA (With Pass-Through Mode) |
| Digital Audio Outputs | 1x USB (Native DSD512 / PCM 384kHz), 1x BNC S/PDIF (PCM 192kHz / DoP64) |
| Analogue Audio Outputs | 1x Stereo Pair Balanced XLR, 1x Stereo Pair Unbalanced RCA |
| Network Connections | 1x Gigabit RJ45 Ethernet, 1x SFP Optical Network Port |
| Max Resolution Support | Native DSD512 | PCM 384 kHz / 32-bit | MQA Full Decoding |
| Master Clocking | Femto Clock System with Custom FPGA Signal Distribution |
| Power Supply Section | Dual-Toroidal Internal Linear Power Supply (Separated Digital & Analogue Rails) |
| Included Accessories | Premium Infrared Remote Control (Acrylic & Zinc Housing) |
| Dimensions (W x D x H) | 350 x 380 x 107 mm |
| Net Weight | 12.0 kg |
