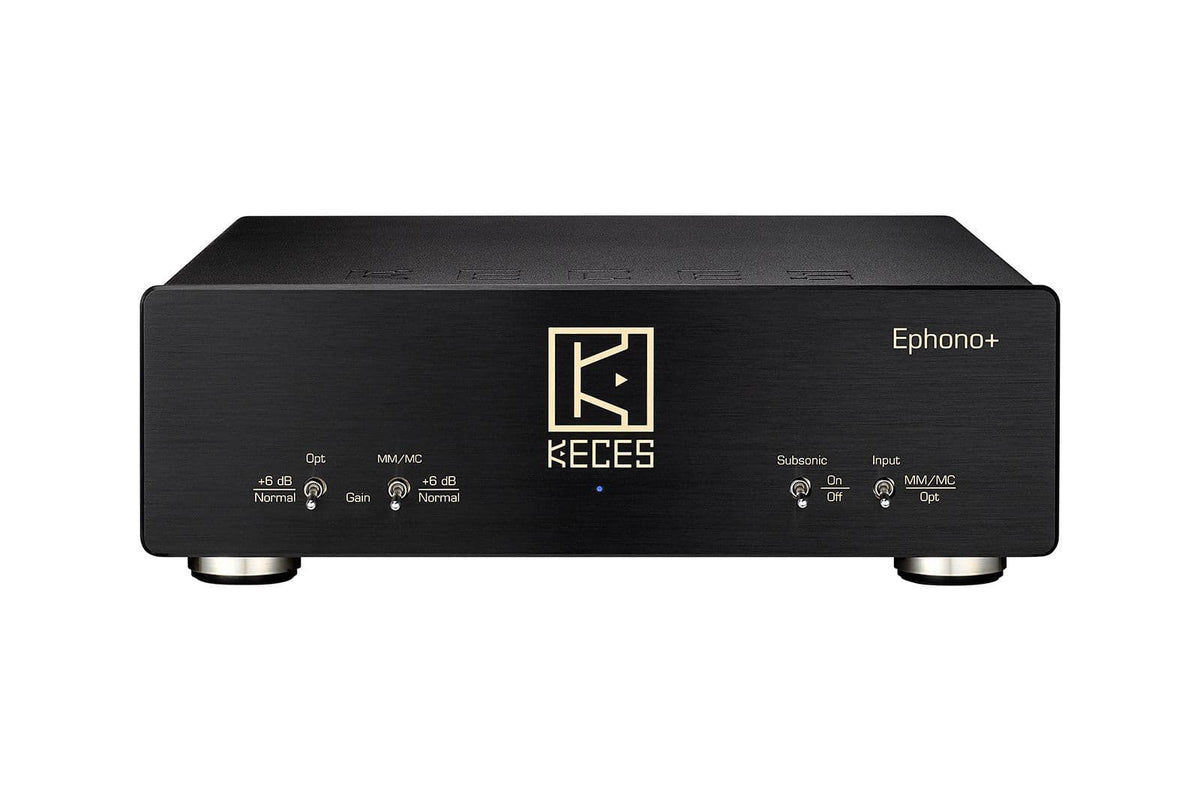

The KECES ePhono+ is a high-performance two-box phono preamplifier engineered to accommodate Moving Magnet (MM), Moving Coil (MC), and DS Audio optical cartridges within a single analogue control platform. Built around a clean signal architecture, the ePhono+ addresses noise contamination by separating its mains power transformer into an external linear power supply enclosure. Operating on a ±24V DC feed from the companion PSU, the main phono stage applies up to 72 dB of gain while isolating delicate low-level cartridge signals from electromagnetic interference.

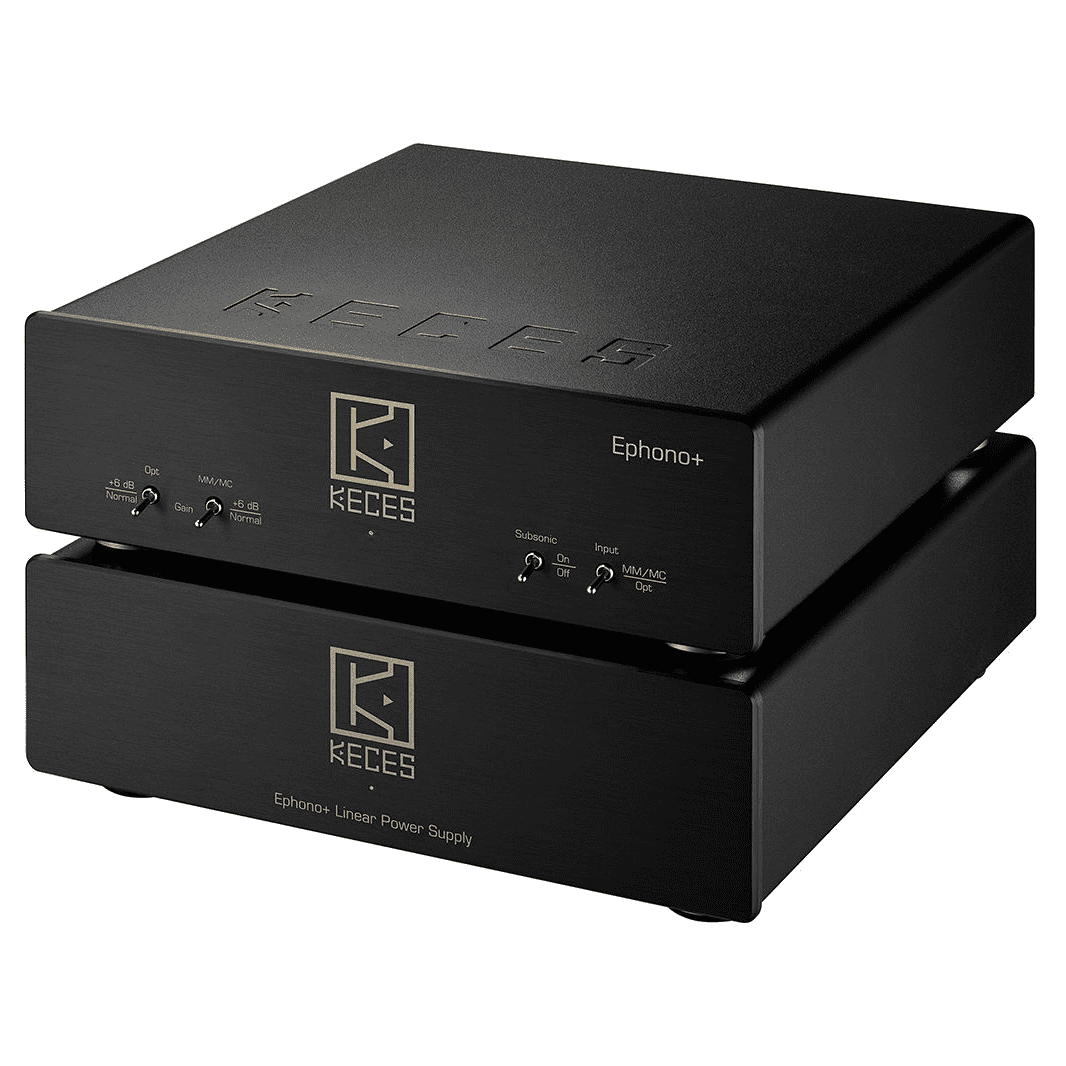

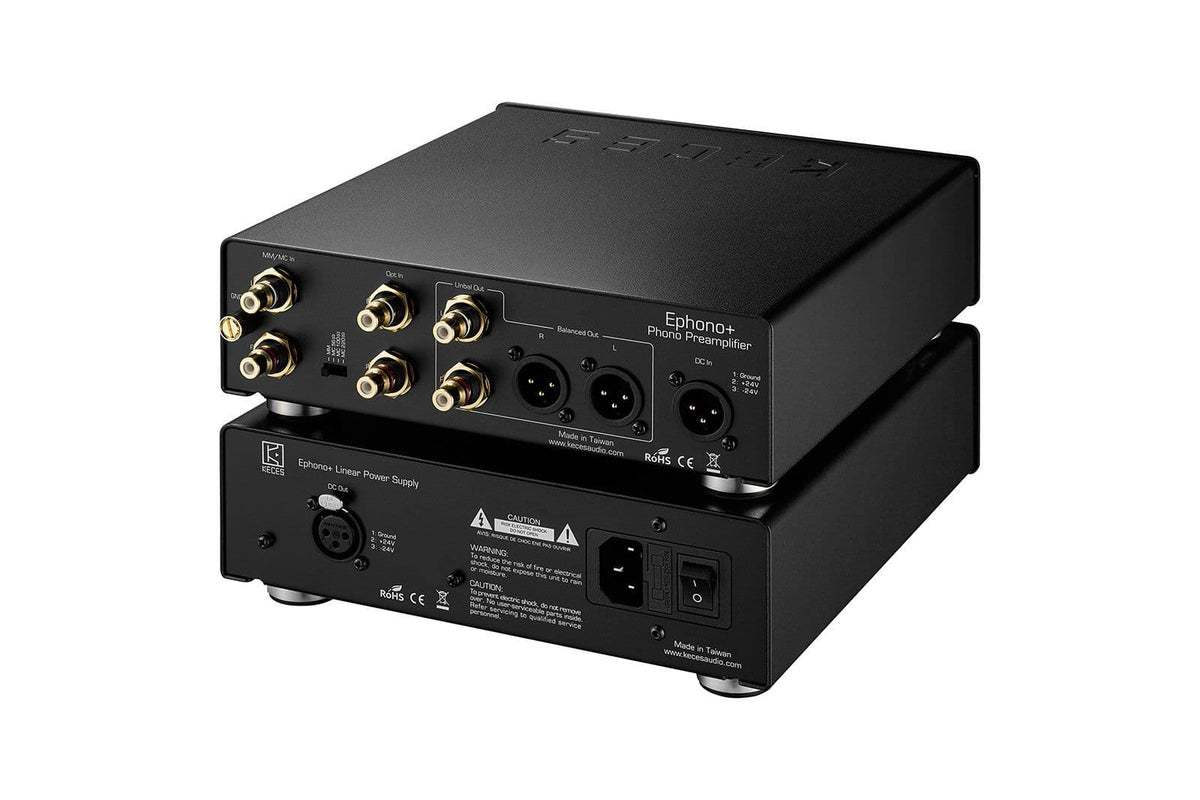

Housed in two matching, compact aluminium enclosures weighing a combined 5 kg, the system features an in-house developed H-Sonic™ toroidal transformer and high-grade componentry throughout. The ePhono+ provides customizable cartridge matching, including selectable gain, adjustable MC loading, and a switchable subsonic filter to eliminate ultra-low-frequency warp resonance. Output connectivity includes gold-plated RCA single-ended jacks alongside balanced XLR outputs using Neutrik locking connectors for low-noise long-distance cable runs.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Universal Three-Technology Compatibility: Dedicated input stages engineered to support standard Moving Magnet (MM), low-output Moving Coil (MC), and DS Audio optical cartridges.

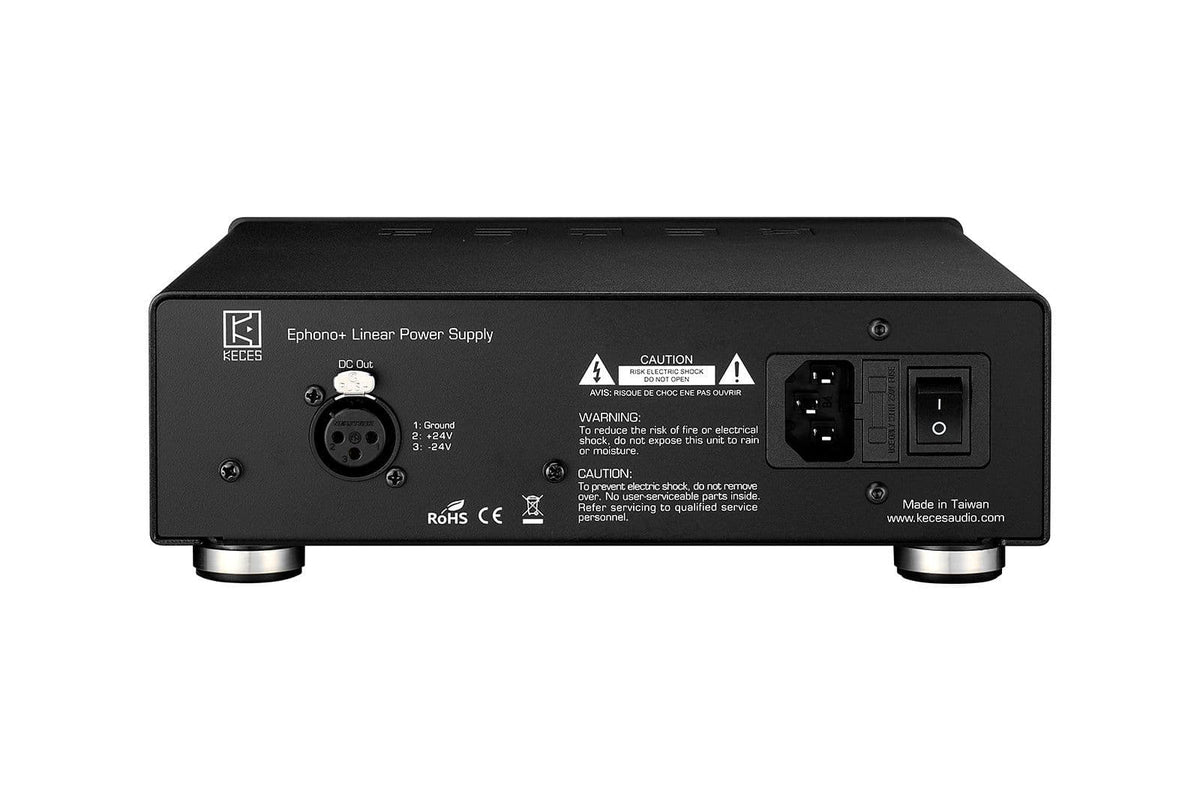

- Two-Box Isolated Architecture: External linear power supply physically removes the mains transformer and high-voltage circuitry from the sensitive phono preamplification stages.
- Proprietary H-Sonic™ Toroidal Transformer: In-house manufactured low-noise toroidal transformer provides a stable, ripple-free ±24V DC rail to the main phono module.
- Comprehensive Gain & Load Matching: Offers adjustable gain profiles (MM: 46dB/52dB; MC: 66dB/72dB; Optical: 24dB/30dB) and selectable MC load impedance (56Ω, 100Ω, 220Ω).
- True Balanced & Single-Ended Connectivity: Equipped with Neutrik locking XLR balanced outputs alongside 24K gold-plated RCA single-ended connectors.
- Switchable Subsonic Filter: Selectable low-frequency filter cuts mechanical turntable rumble and record warp energy to prevent low-frequency amplifier overload.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Two-Box Multi-Technology Phono Preamplifier |
| Brand / Model | KECES Audio — ePhono+ (with ePhono+ Power) |
| Supported Cartridge Types | Moving Magnet (MM) / Moving Coil (MC) / DS Audio Optical |
| Power Supply Architecture | External Dedicated Linear Power Supply (±24V DC Output) |
| Internal Mains Transformer | Proprietary Low-Noise KECES H-Sonic™ Toroidal Transformer |
| MM Gain & Input Loading | Gain: 46 dB / 52 dB | Load: 47 kΩ / 100 pF |
| MC Gain & Input Loading | Gain: 66 dB / 72 dB | Load: 56 Ω / 100 Ω / 220 Ω |
| DS Audio Optical Gain | Gain: 24 dB / 30 dB |
| Frequency Response | 20 Hz – 20,000 Hz |
| Signal-to-Noise Ratio (SNR) | MM: 78 dB | MC: 70 dB | Optical: 75 dB |
| Total Harmonic Distortion (THD) | MM: < 0.02% | MC: < 0.05% | Optical: < 0.04% |

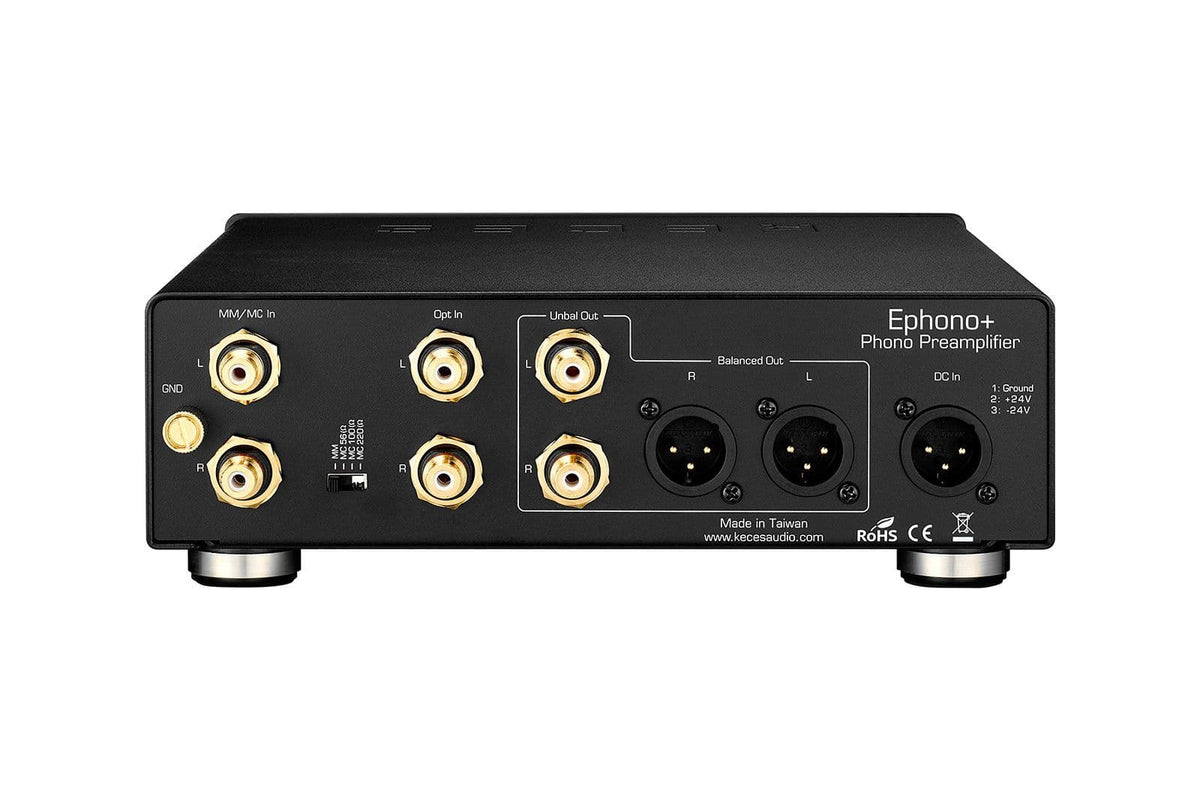

| Analogue Outputs | 1x Stereo Single-Ended RCA Pair (24K Gold-Plated) | 1x Stereo Balanced XLR Pair (Neutrik Locking) |
| Low-Frequency Control | Switchable Subsonic / Rumble Filter |
| AC Input Voltage (Power Supply) | 110V–120V (60Hz) / 220V–240V (50Hz), Switchable |
| Power Consumption | 36 W Max |
| Phono Unit Dimensions & Weight | 220 x 220 x 66 mm | 2.0 kg |
| Power Supply Dimensions & Weight | 220 x 220 x 66 mm | 3.0 kg |
| Combined Total System Weight | 5.0 kg |
