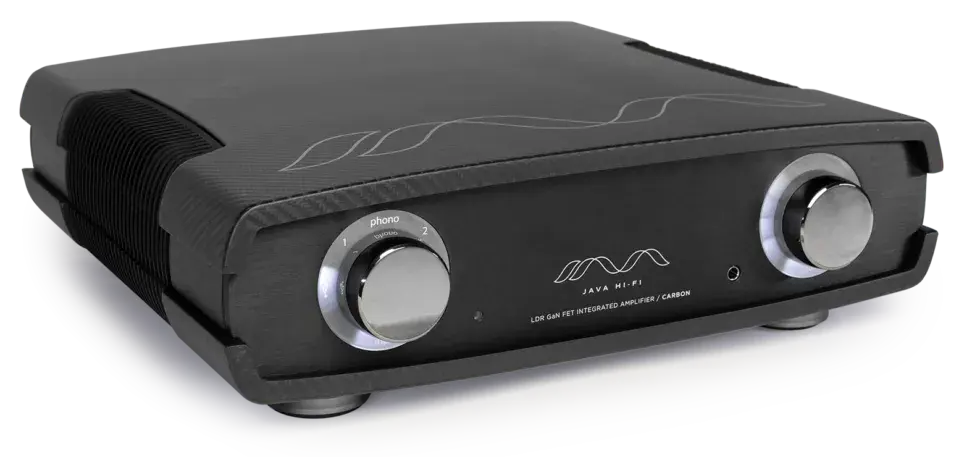

Java Hi-Fi 'Single Shot' Integrated Amplifier - Carbon Edition

More than ever, the act of listening to music is one of life's simple pleasures. A chance to escape from information overload and the distractive digital noise of our cluttered contemporary world. Against this backdrop, JAVA Hi-Fi has created a range of audio separates that deliver a deeply immersive listening experience, to capture the intangible, soulful essence of music.

The JAVA Hi-Fi range of audio components reproduce music with extraordinary realism. Subtle new details are revealed in familiar pieces of music, while voices and instruments are presented with a rich and life-like tone. Music flows effortlessly from the speakers, enveloping the listener in a broad and deep soundstage that takes you direct to the heart of the musical performance.

Exceptional audio performance is at the core of the JAVA Hi-Fi range. But the unique combination of cutting-edge technology and clean uncluttered aesthetics sets JAVA Hi-Fi apart.

With a feature-set perfectly tailored to the demands of the discerning audio enthusiast, the six-strong range of JAVA Hi-Fi amplifiers is available in Single Shot or Double Shot strengths.

• 200 watts/8 ohms (400 watts/4 ohms)

• LDR pre-amp stage and GaN FET power amp stage

• 2 x pairs of RCA line-level inputs

• 1 x pair of RCA outputs (pre-out)

• High-resolution DAC (USB input)

• MM phono stage (RCA inputs)

• Bluetooth aptX

• 1 x headphone output

• Remote control for volume and source selection

• ETI Research RCA connectors

• ETI Research speaker binding posts

• Solid 4mm anodised aluminium front panel

• CNC-machined birch ply outer case with luxury real wood veneers

• Innovative inverted PCB assembly for vibration and resonance control of audio circuit

• Dimensions: 32.5 cm x 35.3 cm x 11 cm (w/d/h)

• Weight: 7.25kgs (16 lbs)

DAC Specification :

• DAC Chips: Dual flagship Burr-Brown PCM1794As in monaural mode.
• Sampling Rates: PCM up to 192kHz inc DSD.
• Bit Rates: Up to 24-bit.
• Formats: Supports all formats inc DSD.

Measurements:

• Signal-to-Noise Ratio (SNR): 124dB (A-weighted).
• Residual Noise: 1.6uV (A-weighted).
• Dynamic Range (DNR): 122dB.
• Total Harmonic Distortion + Noise (THD+N): -110dB or 0.0003%.
• Frequency Response: DC (0Hz) to 22kHz @ 48kHz sample rate.
• Frequency Response: DC (0Hz) to 44kHz @ 96kHz sample rate.
• Frequency Response: DC (0Hz) to 88kHz @ 192kHz sample rate.
• Output Voltage: 2.5Vrms (+10.2dBu).

Other:

• Re-clocking: Crystek CCHD-575 oscillator -- ultra-low clock jitter of 82fSec.

DAC Output stage:

• Uses OPA1612s.
• Low Noise Panasonic Resistors.
• Proprietary filtering topology.

MM Phono Specification :

• Input Impedance - 47K ohm.
• Input Capacitance - 200pf load.
• Gain - 45dB signal gain (at 1KHz).
• The RIAA equalisation is achieved using a passive filter network.
• It achieves the RIAA curve to within 1dB throughout the audio band, with the addition of an anti rumble filter.
• High tolerance Japanese thin film resistors and German film capacitors are used throughout the design.
