Product Overview & Specifications

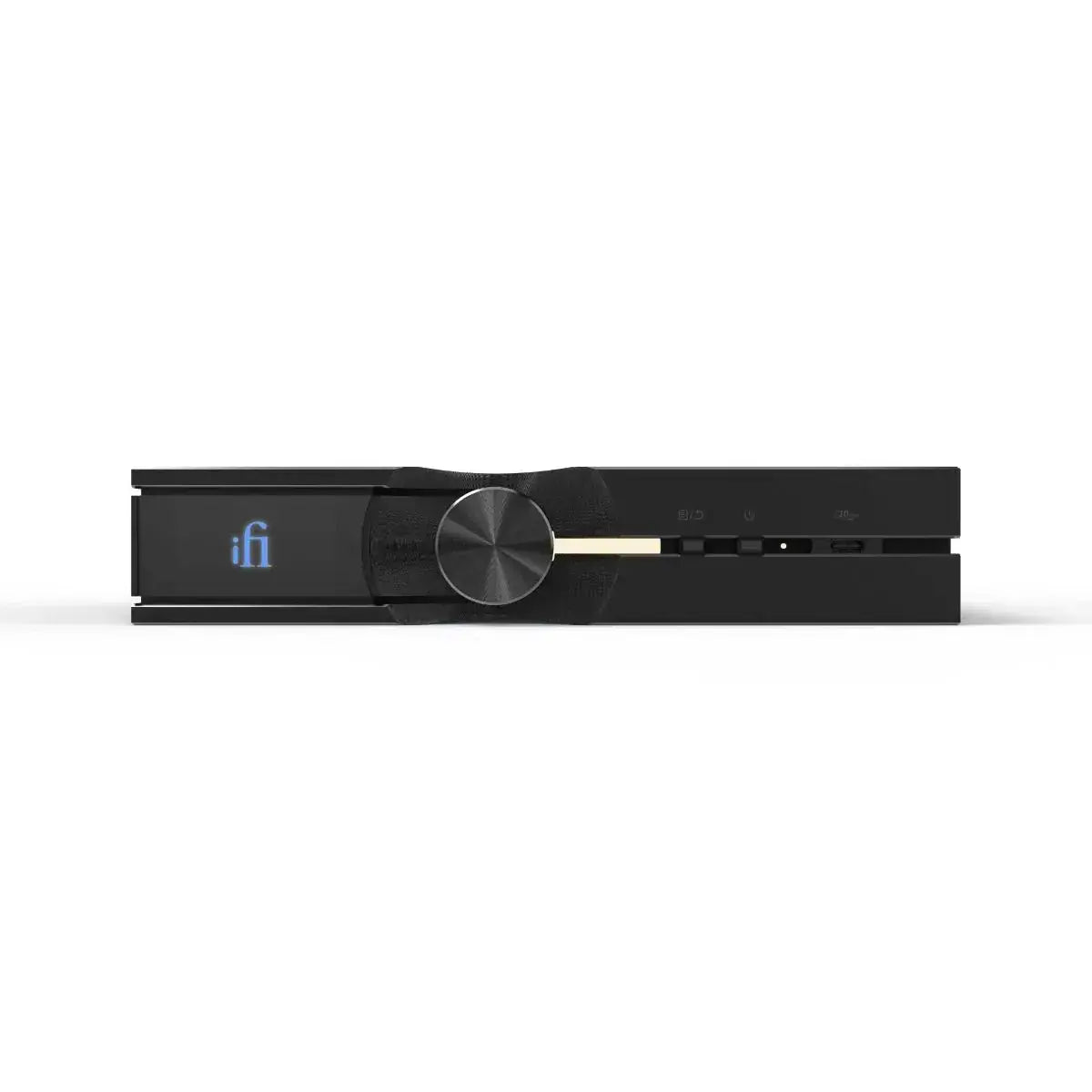

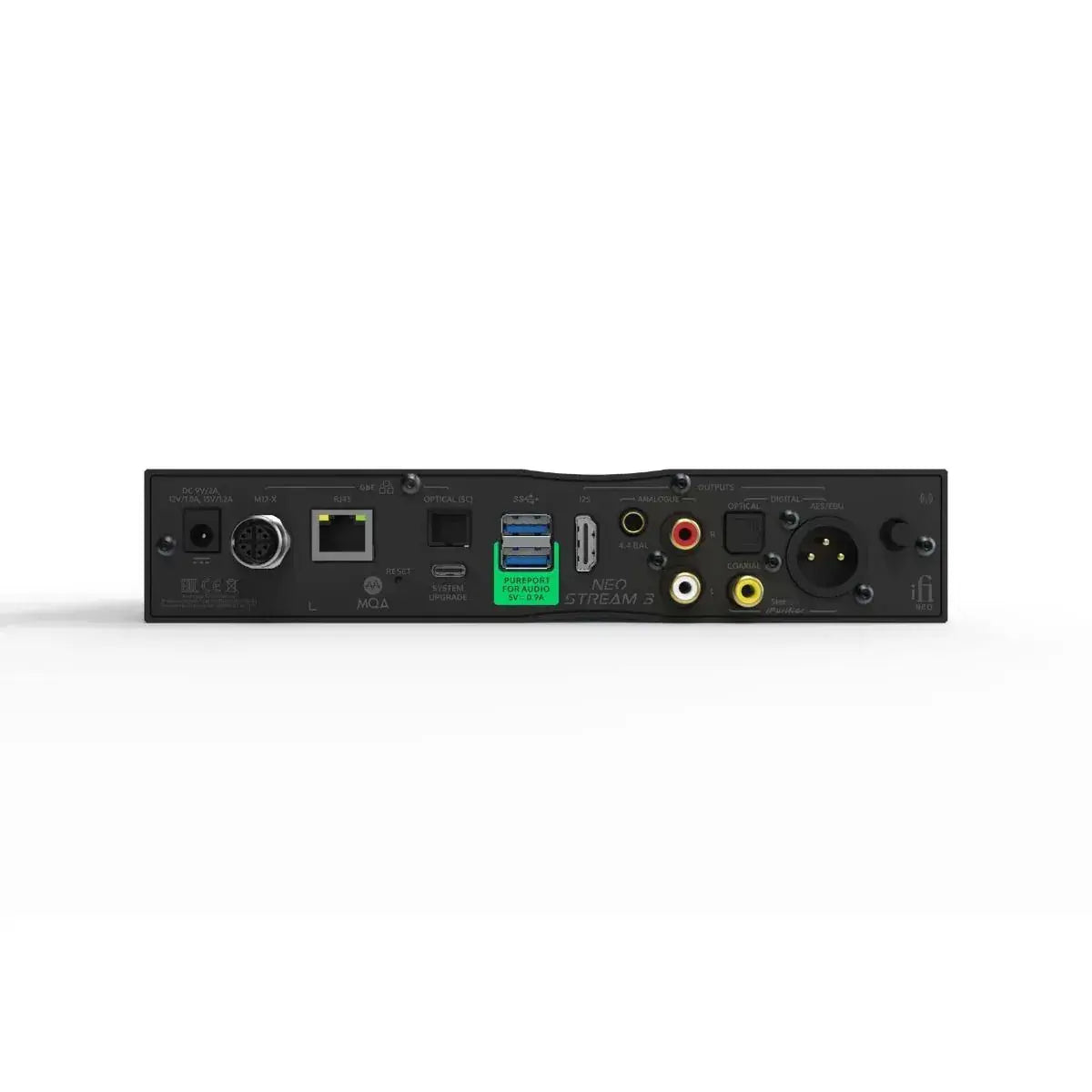

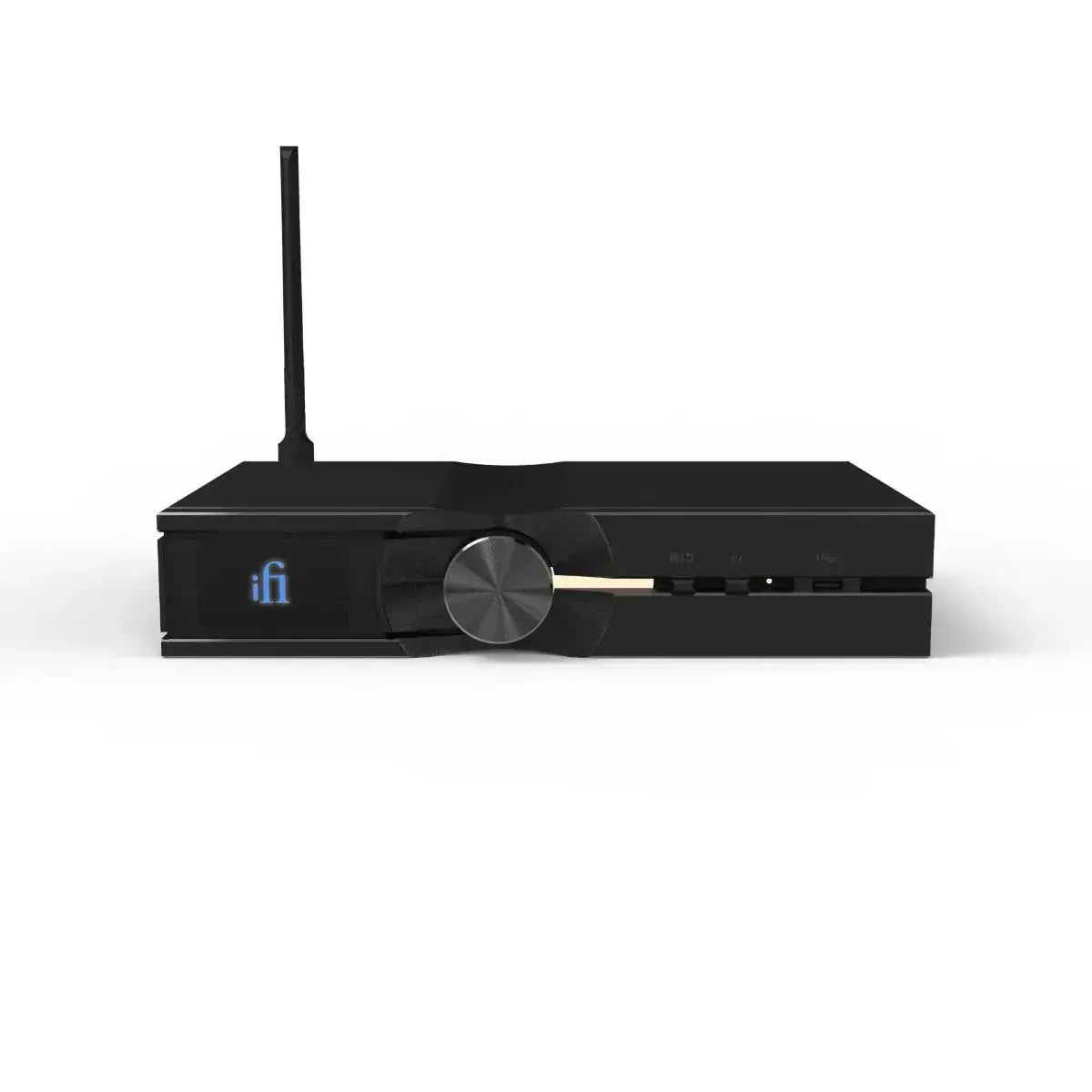

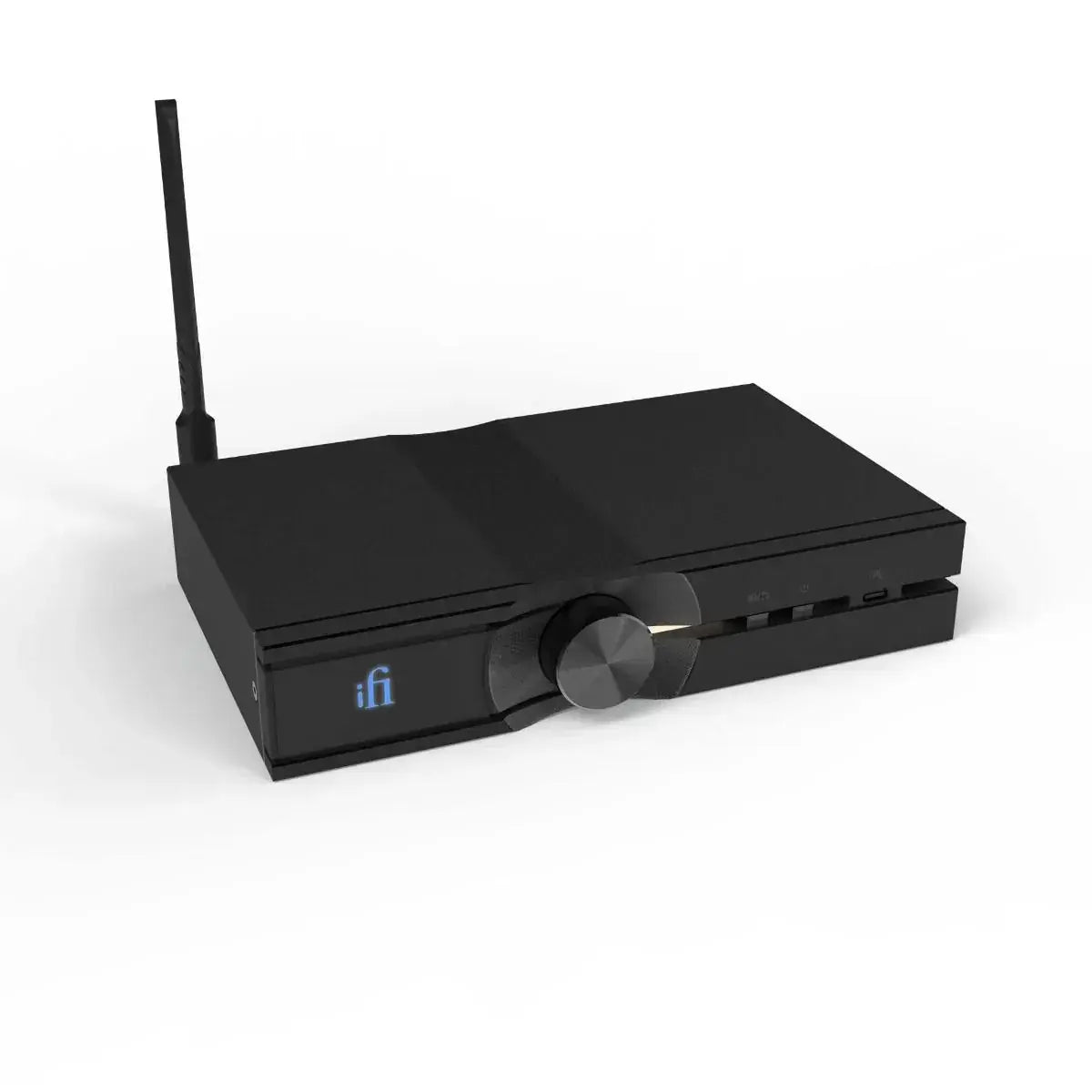

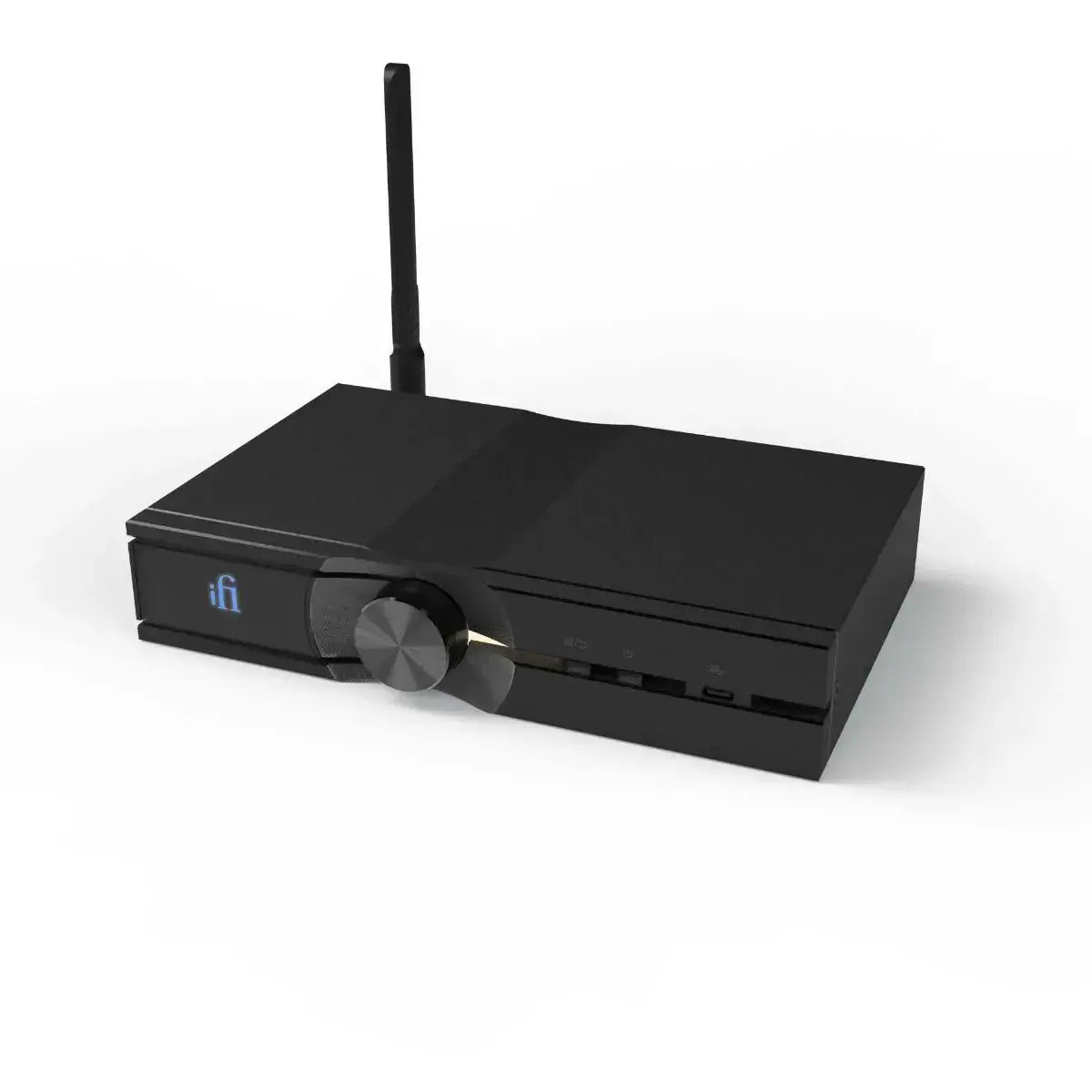

NEO Stream 3 Just Add Speakers A truly complete solution for adding modern streaming options to your home setup, the NEO Stream takes the award-winning DAC stage from the NEO iDSD 2 and incorporates the latest generation of our network streaming engine. With built-in native support for Spotify, Tidal, Qobuz, and more, the NEO Stream 3 is the centrepiece of an enthusiast's setup - their ultra-resolution digital audio hub. Just add your favourite active speakers and let the music take centre stage.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Analogue Outputs | 4.4mm Balanced, SE RCA |
| Analogue Output Voltage | Balanced 4V RMS |
| SE 2V RMS | Digital Inputs |
| Wi-Fi; Ethernet (RJ45, M12-X, Optical); 2x USB-A; USB-C (front) | Digital Output |
| 2x USB-A; S/PDIF Optical; S/PDIF Coaxial; AES/EBU; I2S | Dimensions |
| 214mm x 151mm x 41mm | Hi-Res Support |
| 768kHz PCM; DSD512 (22.6MHz) | Weight |
| 1kg | Output Impedance |
| Balanced 74Ω | SE 37Ω |
| Power Consumption | 0.5W idle; 14W max. |
| SNR | 106dBA @ 0dBFS |
| System Update | USB-C (back) |
| THD+N | 0.0025% @ 0dBFS |
| Power Supply Requirement | DC 9V/2A; 12V/1.8A; 15V/1.2A (centre +ve) |
