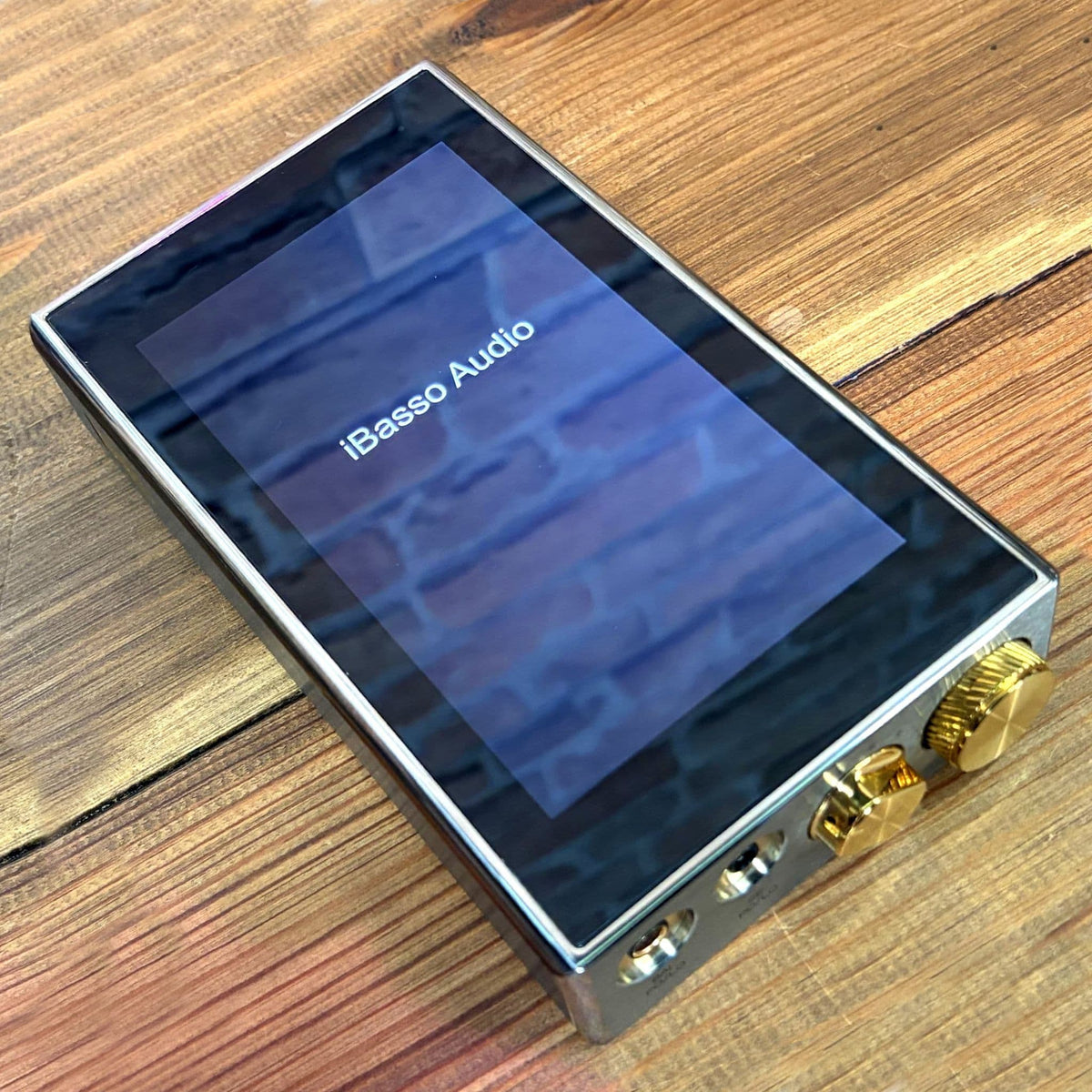

iBasso Audio DX320MAX Ti - Portable High-End Limited Digital Audio Player
iBasso Audio DX320MAX Ti - Portable High-End Limited Digital Audio Player
Estimated Shipping Widget will be displayed here!
Score: 4 / 5 Excellent

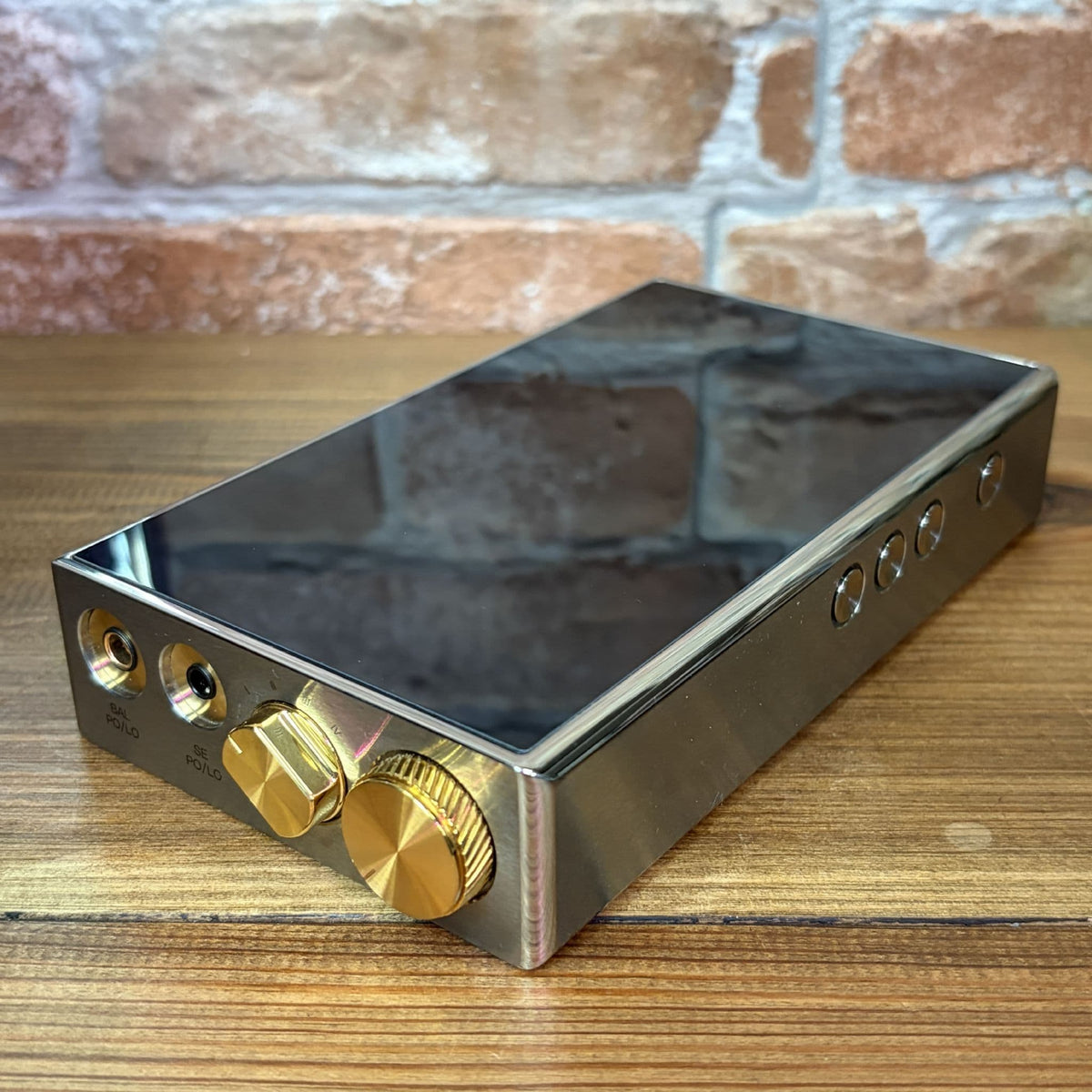

The iBasso DX320 MAX Ti is a flagship, limited-edition Digital Audio Player (DAP) crafted in a strict production run of only 888 individually numbered units worldwide. Housed in a precision CNC-machined titanium chassis, the DX320 MAX Ti builds upon iBasso's reference "MAX" platform, combining portable convenience with true desktop-grade amplification and conversion power.
At its digital heart, the player utilizes a quad-DAC matrix featuring 4 x ROHM BD34301EKV MUS-IC™ DAC chips operating alongside iBasso's proprietary FPGA-Master technology. To completely eliminate interference, the digital and analog sections are powered by independent, isolated battery systems. Controlled via a 5.0-inch Full HD IPS touchscreen running dual Android 11 and Linux-based Mango OS, the DX320 MAX Ti features a custom 24-step 4-wiper analog stepped attenuator volume wheel and a 4-position physical gain selector.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Quad ROHM BD34301EKV DAC Architecture: Four flagship MUS-IC™ series DAC chips operating in parallel deliver an ultra-low noise floor, 125 dB SNR, and exceptional spatial separation.
- Super Class A Discrete Amplification: Transistor-switched Class A discrete circuit delivers up to 9.0 Vrms via balanced output without step-up voltage boosters, eliminating crossover distortion.
- Patented Dual Independent Battery Power Supply: Completely isolated power rails feature a dedicated 4-cell +/-8.4V battery pack for the analog amp and a separate high-capacity cell for the digital processing board.

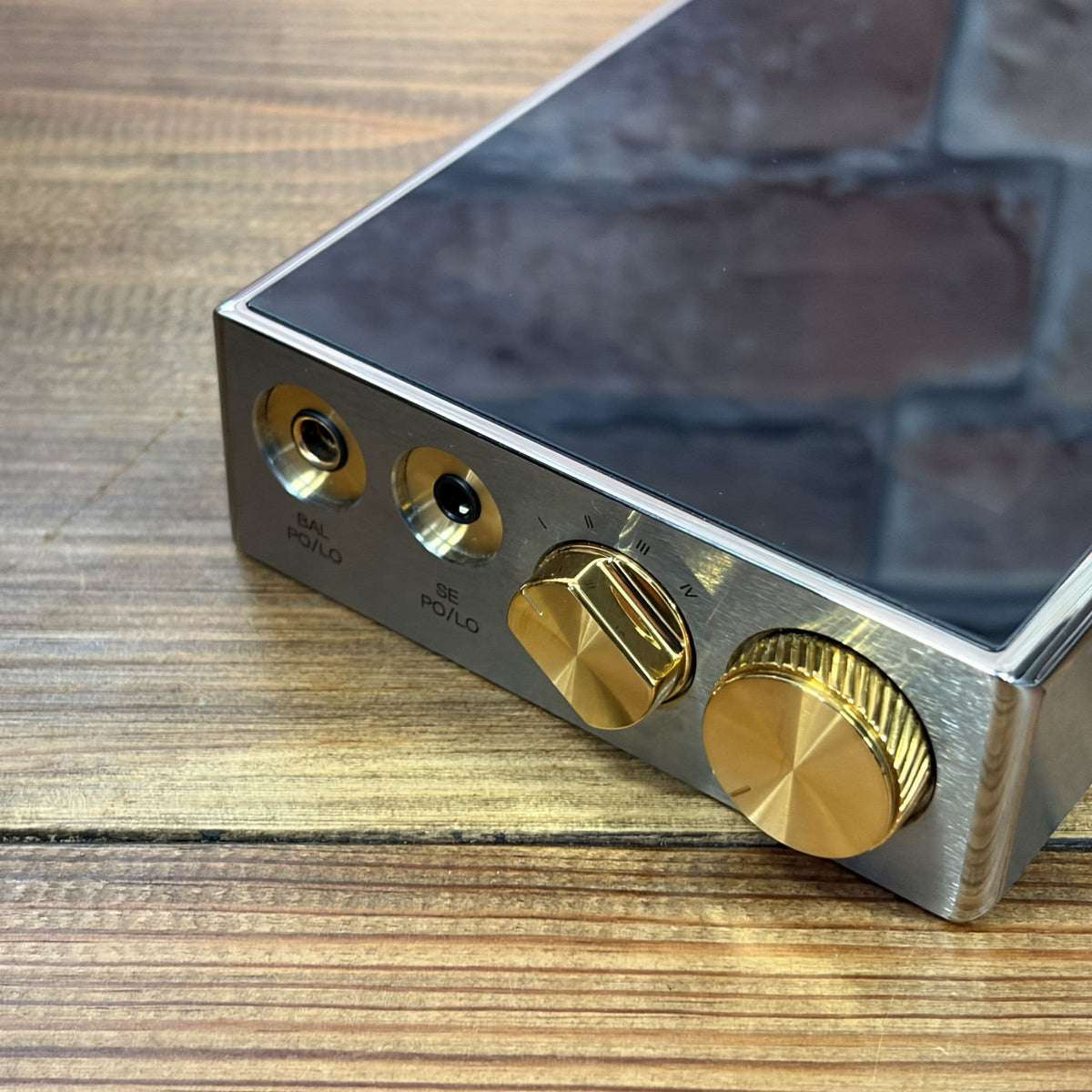

- 24-Step 4-Wiper Analog Stepped Attenuator: Physical custom analog volume attenuator with < +/-0.1dB channel imbalance ensures pristine signal purity at any listening level.
- 4-Position Physical Gain Switch: Rotary gain control allows precise power matching for ultra-sensitive IEMs up to demanding full-size planar magnetic headphones.

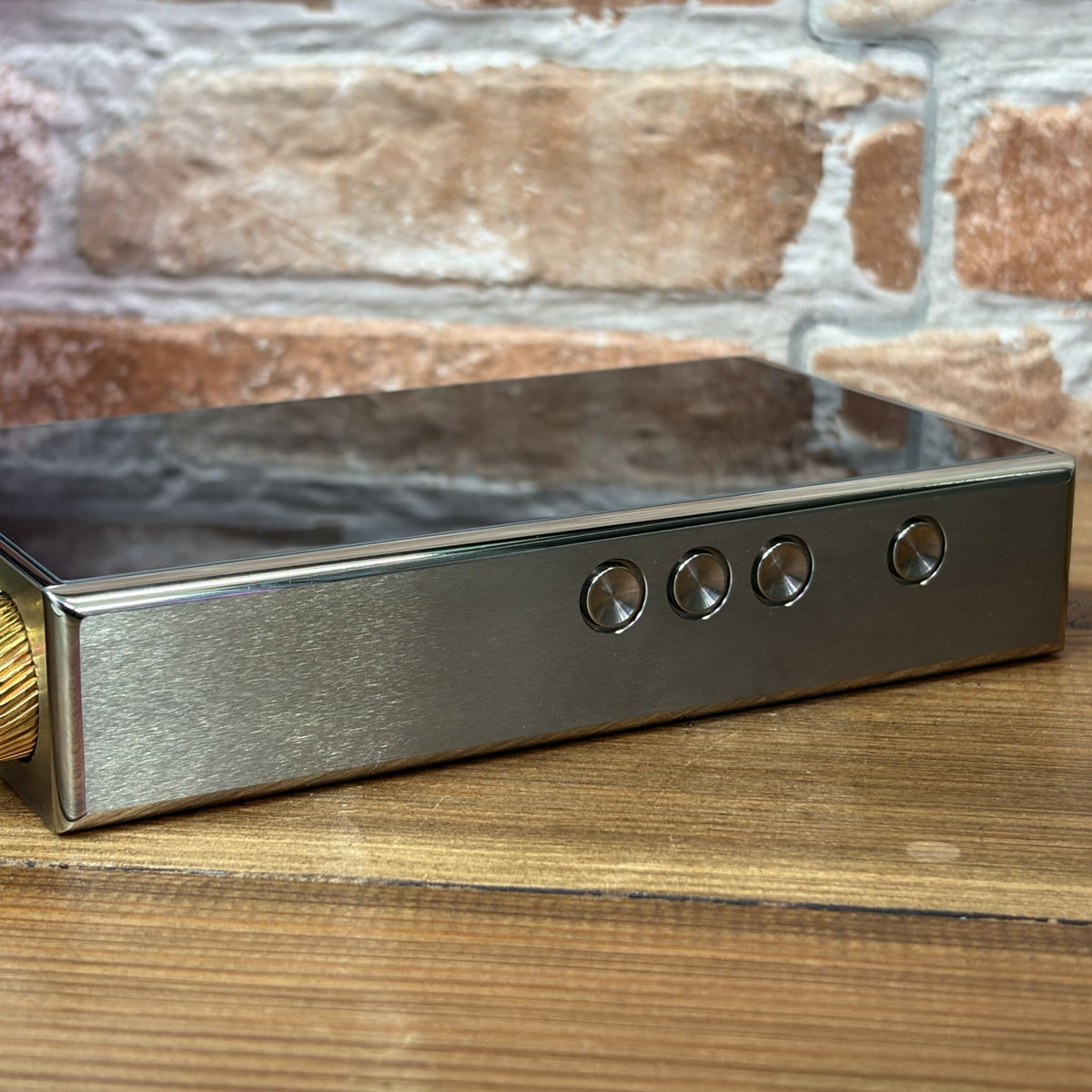

- Aerospace-Grade Titanium Chassis: High-rigidity titanium enclosure providing superior RF shielding, structural resonance damping, and lightweight durability.
- Dual Boot OS (Android 11 & Mango OS): Switch between open Android 11 for streaming apps and iBasso's dedicated Linux-based Mango OS for pure offline audio playback.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship Limited Edition Digital Audio Player (DAP) |
| Brand / Manufacturer | iBasso Audio |

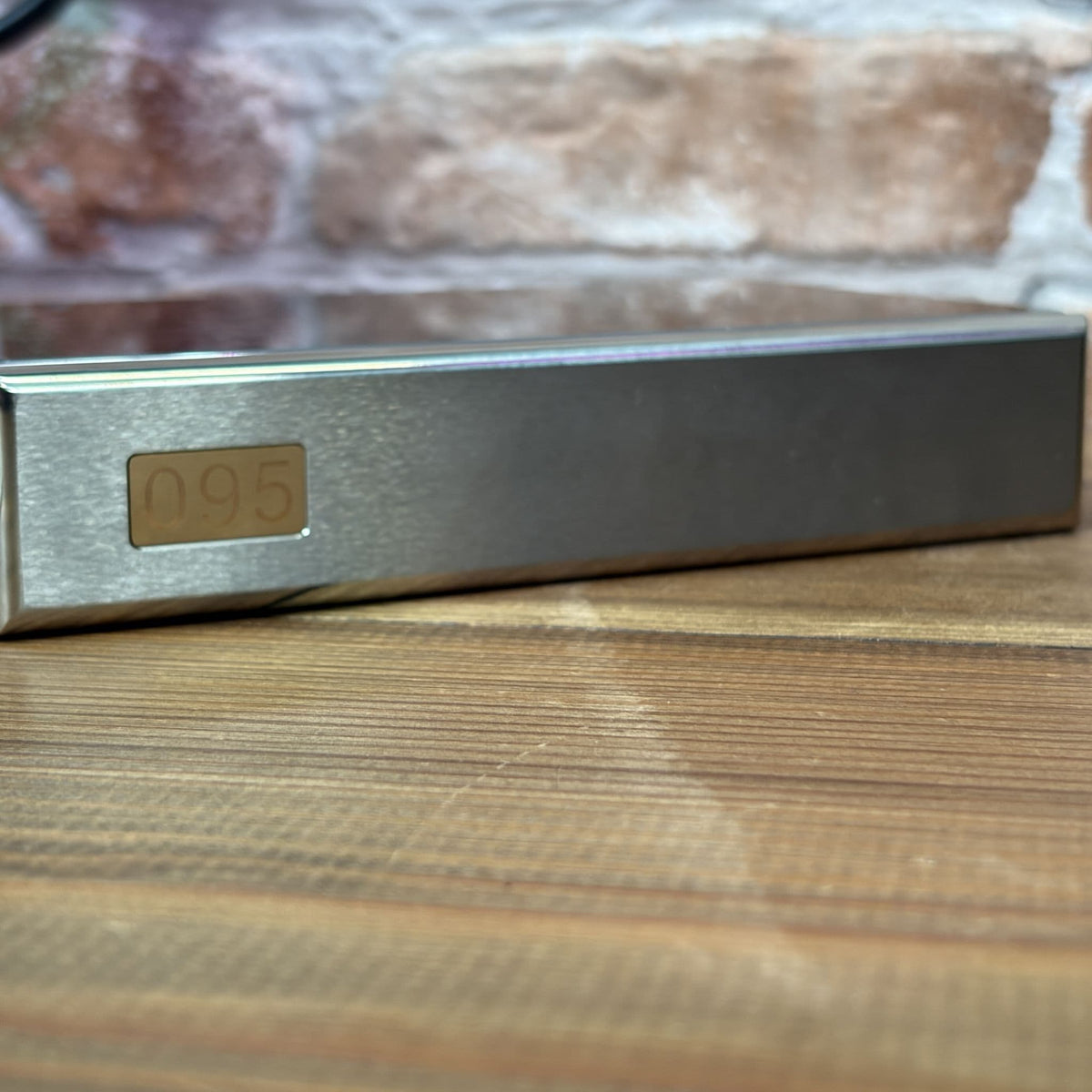

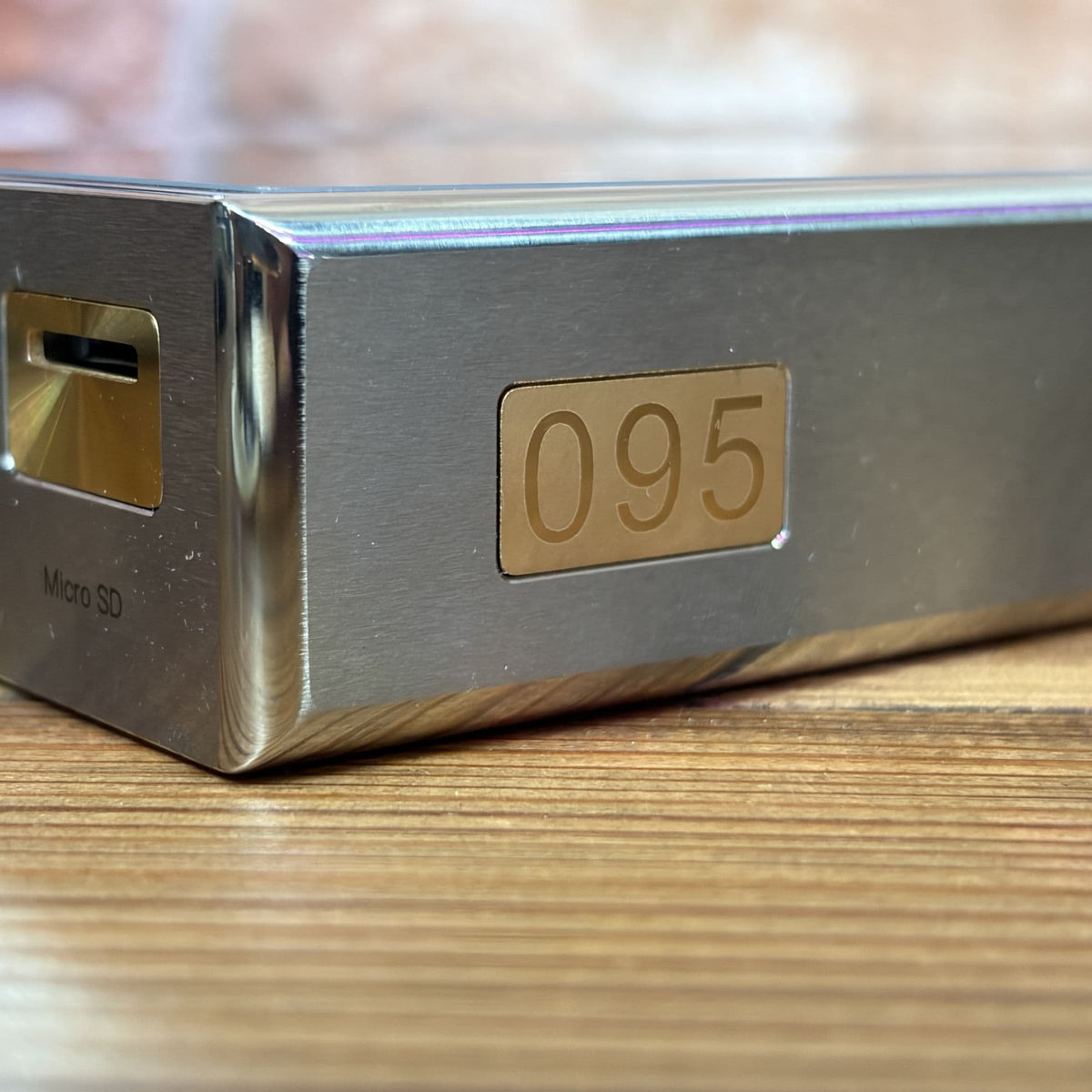

| Model Designation | DX320 MAX Ti (Limited Run of 888 Units) |
| Chassis Material | Aerospace-Grade Titanium with Gold-Plated Accents |
| Digital-to-Analog Converter (DAC) | 4 x ROHM BD34301EKV MUS-IC™ DAC Chips |
| System Processor (SoC) & Memory | Qualcomm Snapdragon 660 (Octa-Core 14nm) | 6GB LPDDR4X RAM | 128GB ROM |
| Operating System | Dual Boot: Android 11 + Linux-Based Mango OS |
| Audio Decoding Support | PCM up to 32-bit / 768 kHz | Native DSD up to DSD512 | Full MQA 16x Decoding |

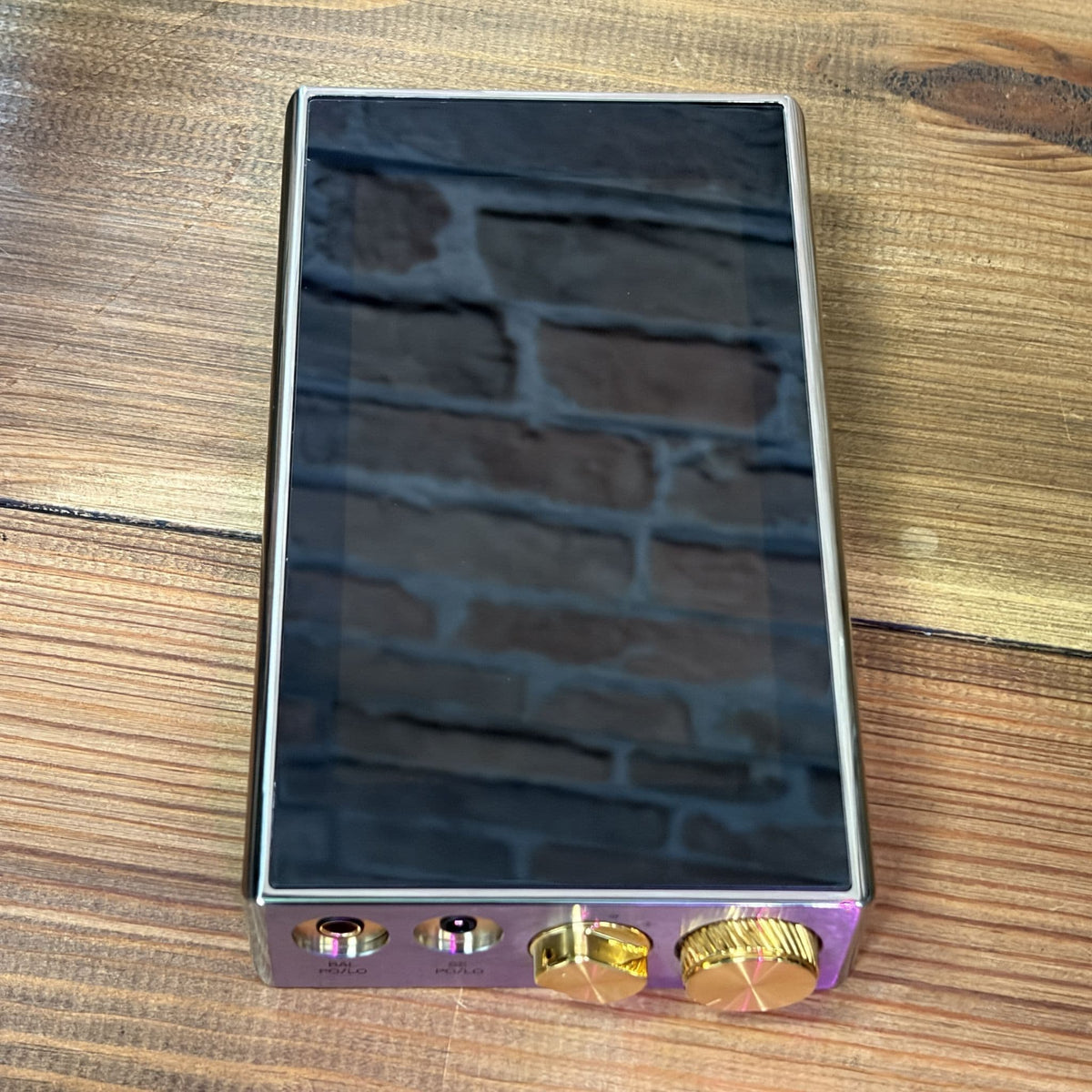

| Display Screen | 5.0-Inch Full HD (1080 x 1920) On-Cell Capacitive IPS Touchscreen |
| Balanced Headphone Output (4.4mm) | Output Level: 9.0 Vrms (@ 300 Ω) | SNR: 125 dB | THD+N: -114 dB |
| Single-Ended Headphone Output (3.5mm) | Output Level: 4.5 Vrms (@ 300 Ω) | SNR: 122 dB | THD+N: -112 dB |
| Analog Line Outputs | 4.4mm Balanced (4.5 Vrms) | 3.5mm Single-Ended (2.25 Vrms) |

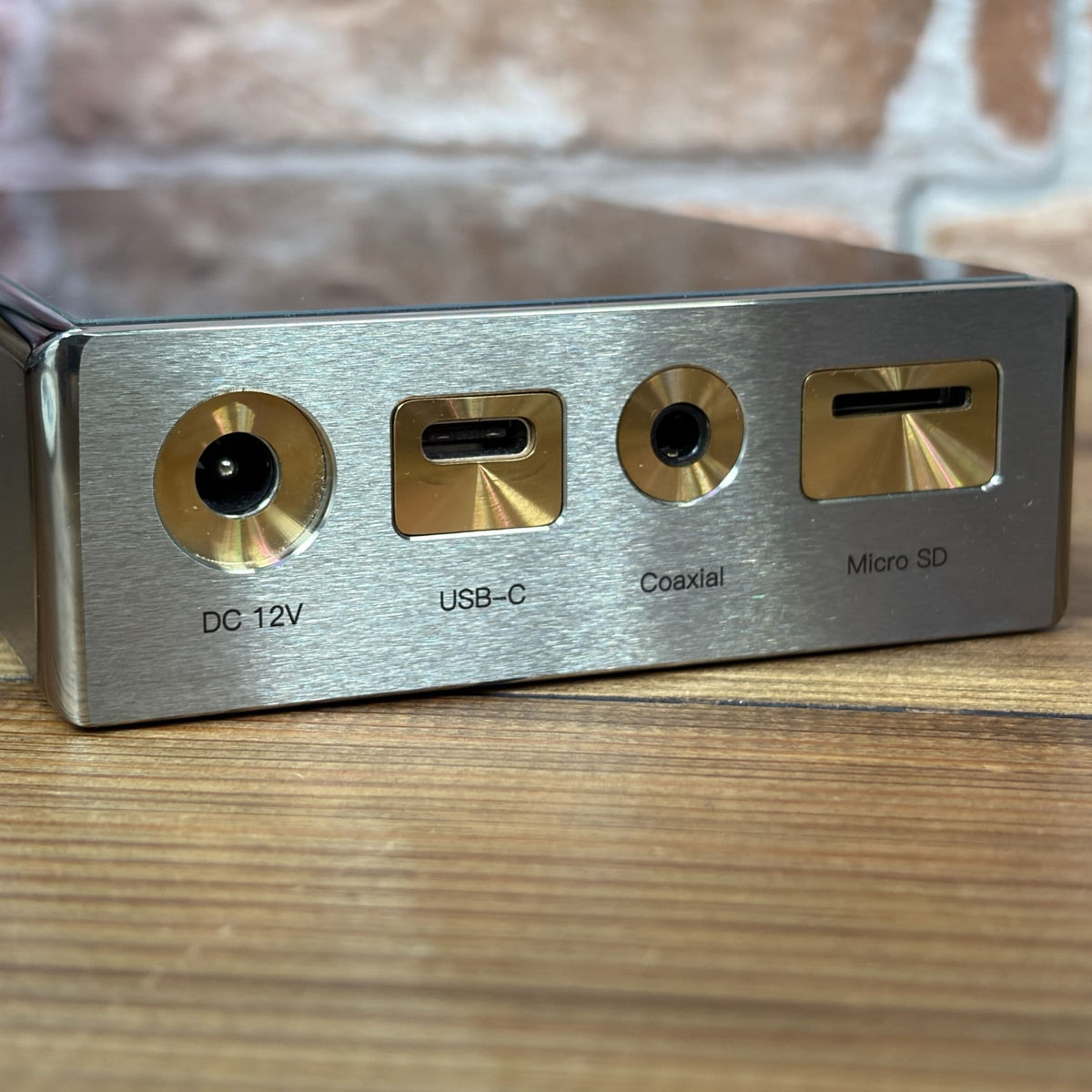

| Digital Audio Outputs | Mini Coaxial S/PDIF (up to 24-bit/384kHz, DoP DSD128) | USB Digital Out |
| Volume Controller & Gain | Custom 24-Step 4-Wiper Analog Stepped Attenuator | 4 Physical Gain Settings |
| Wireless Connectivity | Dual-Band Wi-Fi 5G (2.4GHz / 5GHz 2x2 MIMO) | Bluetooth 5.0 |
| Battery Architecture & Playtime | Dual Power System | Up to 17 Hours (Standard Mode) / 13 Hours (Ultimate Mode) |
| Storage Expansion | 1x MicroSD Card Slot (Supports SDHC / SDXC up to 2TB) |
| Dimensions (L x W x H) | 146 x 86 x 30 mm |
| Net Weight | 620 g (21.8 oz) |
Pre-owned Terms & Condition
Pre-owned Terms & Condition
Our Grading Guarantee
All equipment listed on this site undergoes a multi-point inspection by our staff. While we use a standardised 1–5 Grading Scale, please note that "pre-owned" implies some degree of previous life. We strive for transparency and use the following terms:
- Visual Inspection: Condition grades are subjective but applied conservatively. We provide high-resolution photography of the actual unit for sale (no stock photos). We encourage buyers to zoom in on all images as they constitute part of the formal product description.
- Functional Testing: Unless labelled Grade 1 , all units have been tested for power, input/output integrity, and basic mechanical operation. Vintage units (20+ years) are tested for "period-appropriate" functionality; unless specified, internal components like capacitors are original.
- "Fair" Exclusions: Items graded 1 (Fair) are sold strictly for parts or repair. These items are ineligible for returns, refunds, or "Item Not as Described" claims regarding their condition.
- Return Window: If a unit arrives in a condition significantly different than its assigned grade (e.g., a Grade 4 unit arrives with a shattered faceplate), you must notify us within 24 hours of delivery.
Condition Grading Guide
Condition Grading Guide
Mint
Visually and mechanically indistinguishable from a new unit.
Excellent
Extremely clean. The item has been handled with care and shows only the slightest signs of use.
Very Good
Looks "used" but has been respected.
Good
Functional, but shows its age.
Fair
Functional, but may have some damage or missing parts.
