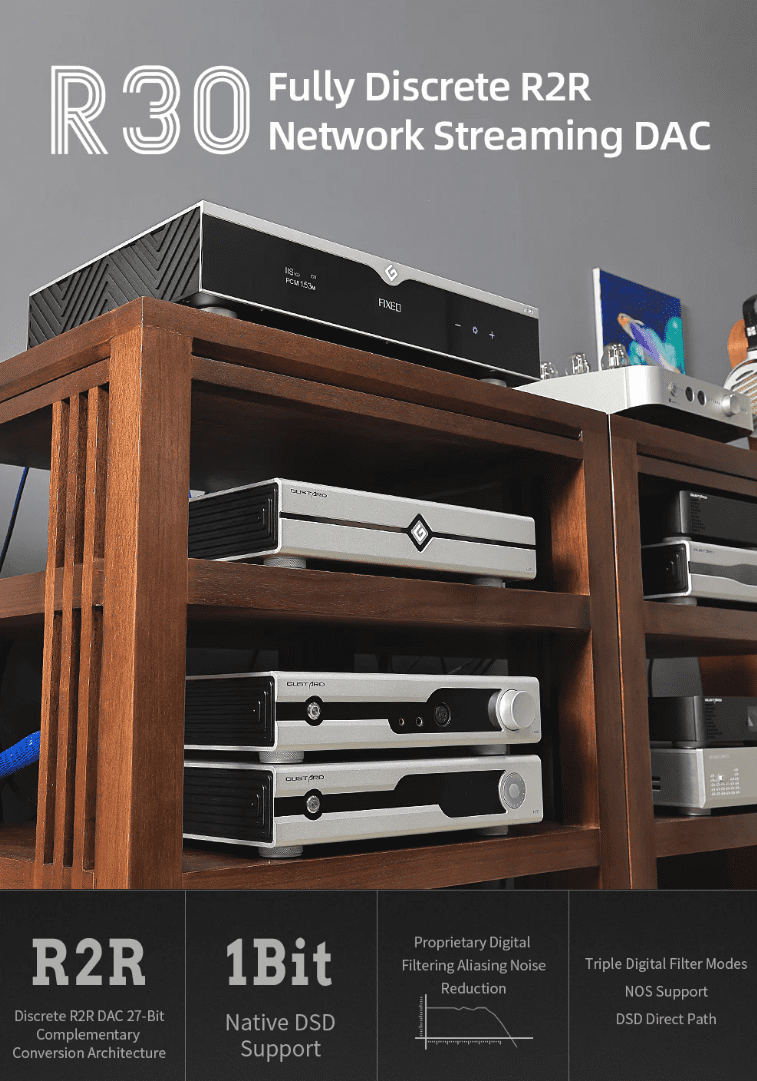

This reference-grade high-resolution Discrete R-2R Ladder DAC & Network Streamer combines traditional resistor ladder architecture with modern network streaming and master clock synchronisation[cite: 1]. Designed for uncompromising digital audio performance, it features a discrete R-2R DAC ladder network alongside a specialized Sony 1-Bit Direct DSD conversion circuit for pure, native DSD processing[cite: 1].

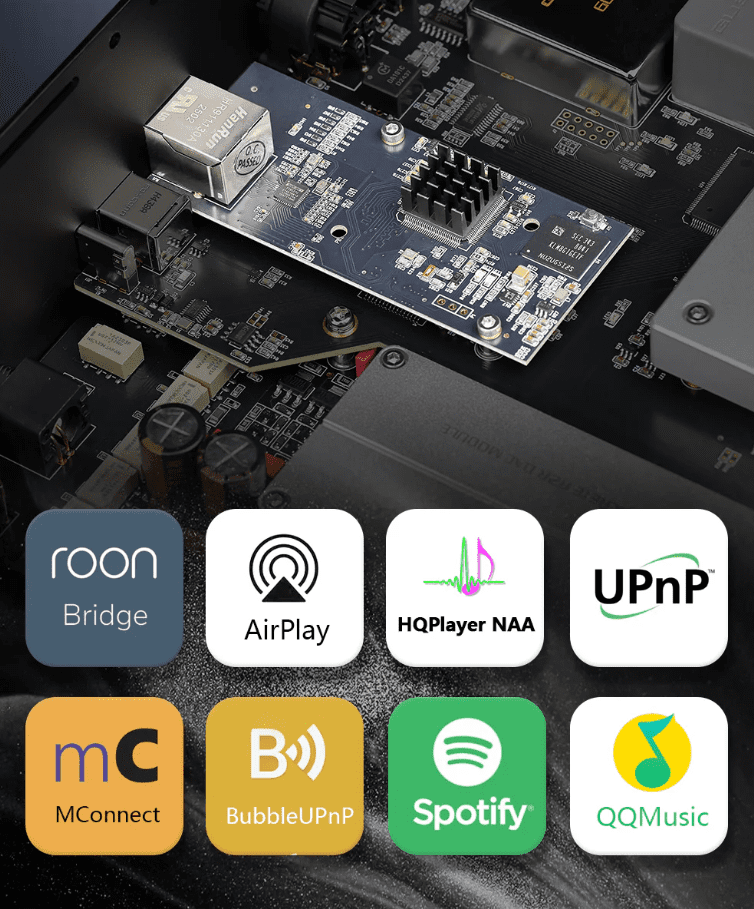

The unit incorporates a K2 ultra-low noise clock synthesizer with a 10MHz Master Reference Clock input, ensuring precise digital timing and minimal jitter[cite: 1]. Signal conversion is powered by a discrete 8-channel hybrid I/V power conversion circuit tailored for R-2R ladder architectures[cite: 1]. Equipped with an integrated Gigabit LAN streaming module, it supports Roon Ready, AirPlay, UPnP, NAA (Signalyst Network Audio Adapter), and Spotify Connect with online firmware upgrade capability[cite: 1].
KEY FEATURES & PROPRIETARY TECHNOLOGIES

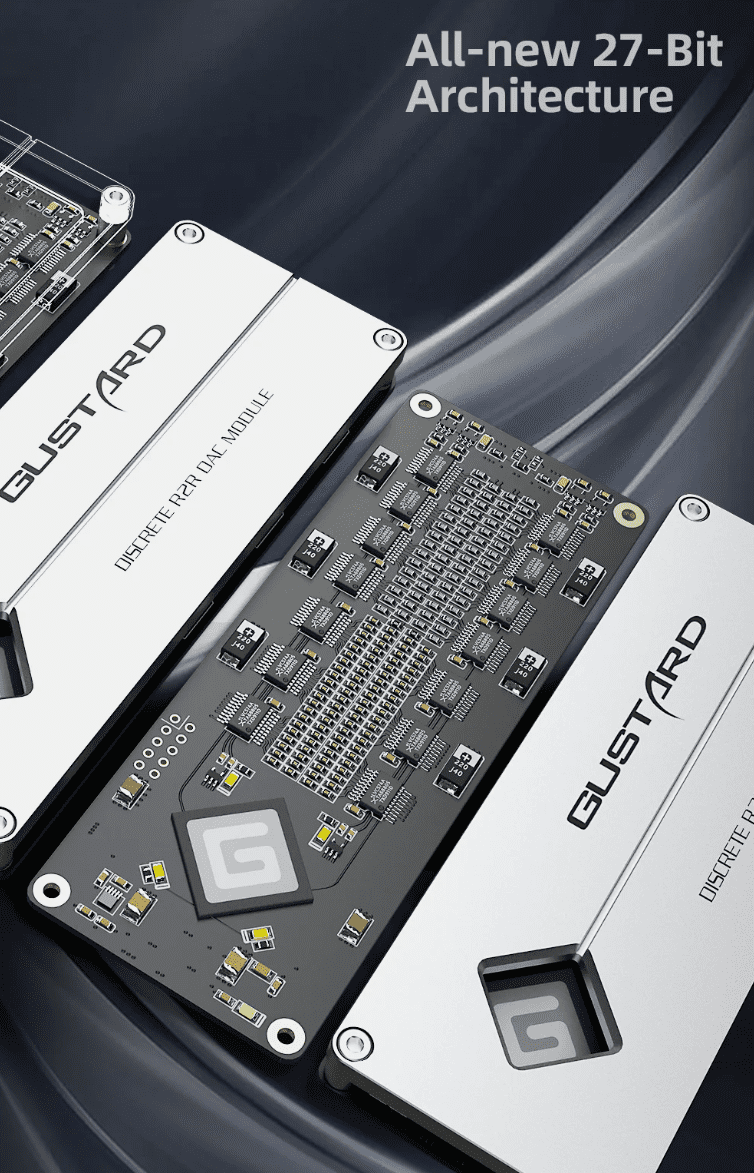

- Discrete R-2R Resistor Ladder Architecture: Hand-matched precision resistor ladder network delivers organic, highly natural digital-to-analog conversion[cite: 1].
- Sony 1-Bit Direct DSD Conversion Circuitry: Dedicated hardware path designed for direct, unmanipulated native DSD processing[cite: 1].
- 10MHz Master Reference Clock BNC Input: Supports external 10MHz master reference clocks for precise digital timing and jitter reduction[cite: 1].
- K2 Ultra-Low Noise Clock Synthesizer: Advanced internal clocking system designed to minimize phase noise and digital timing errors[cite: 1].

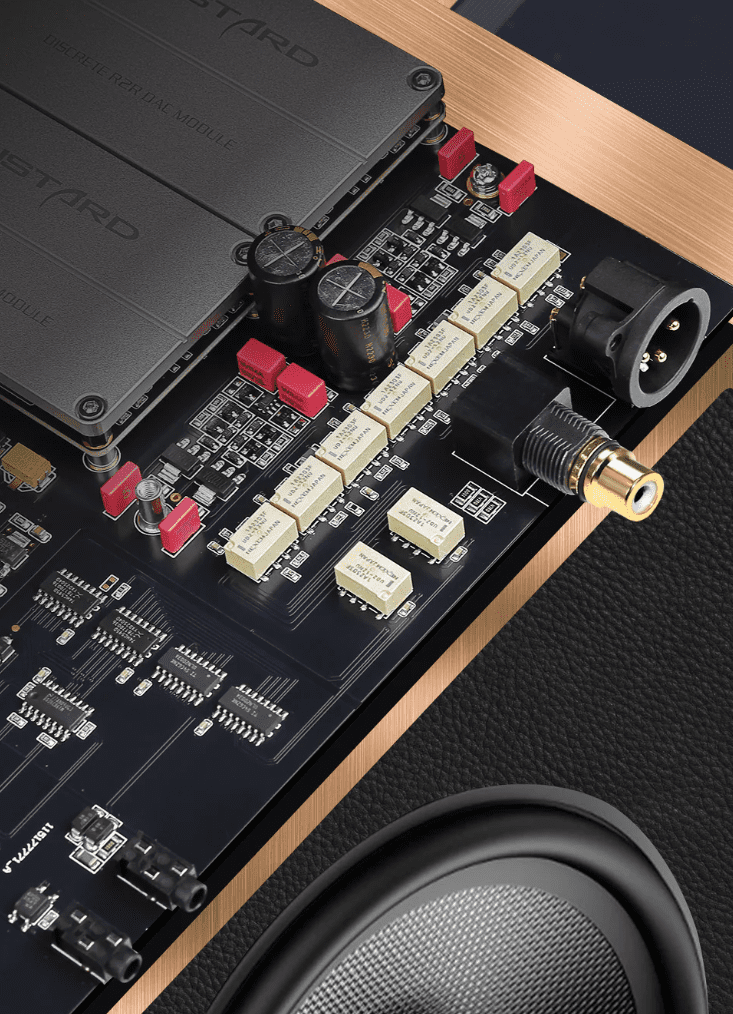

- Discrete 8-Channel Hybrid I/V Power Conversion Circuit: Custom hybrid current-to-voltage conversion stage specifically optimized for R-2R DAC output[cite: 1].
- Integrated Gigabit Network Streamer: Supports Roon Ready, AirPlay, UPnP, NAA (HQPlayer), and Spotify Connect via a high-speed 10/100/1000 Mbps LAN interface[cite: 1].
- Balanced XLR & Single-Ended RCA Outputs: Features line-level fixed outputs with low 100Ω output impedance for optimal preamplifier integration[cite: 1].
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Discrete R-2R Ladder DAC & Network Streamer[cite: 1] |
| Digital-to-Analog Architecture | Discrete R-2R Ladder Network + Sony 1-Bit Direct DSD Conversion Circuit[cite: 1] |
| I/V Conversion Stage | Discrete 8-Channel Hybrid I/V Power Conversion Circuit[cite: 1] |
| Clocking System | K2 Ultra-Low Noise Clock Synthesizer | 10MHz Master Reference Clock Ready[cite: 1] |
| Master Clock Input (BNC) | 50 Ω, 0 dBm ~ 20 dBm, CMOS 0.2V–3.3V, Sine Wave 0.5V–3.3V[cite: 1] |
| Network Streaming Protocols | Roon, AirPlay, UPnP, NAA, Spotify Connect (Configurable, Online Upgrades)[cite: 1] |
| LAN Interface Speed | 10 / 100 / 1000 Mbps Gigabit Ethernet[cite: 1] |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB)[cite: 1] |
| Dynamic Range | > 123 dB[cite: 1] |
| Signal-to-Noise Ratio (SNR) | > 121 dB[cite: 1] |

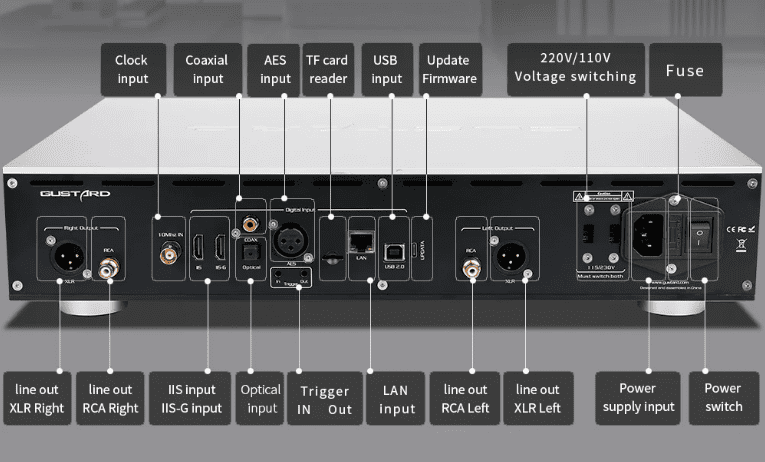

| Analog Outputs | 1 x Stereo Pair Gold-Plated RCA (Fixed, 100 Ω Impedance) 1 x Stereo Pair Balanced XLR (Fixed, 100 Ω Impedance, US Standard Pinout)[cite: 1] |

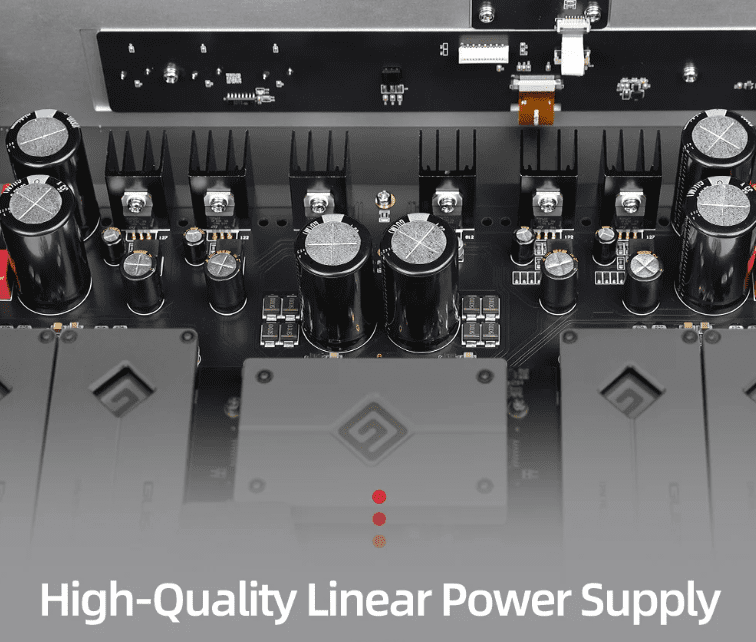

| Power Supply & Consumption | AC 115V / 230V, 50/60 Hz | Power Consumption: < 30 W[cite: 1] |

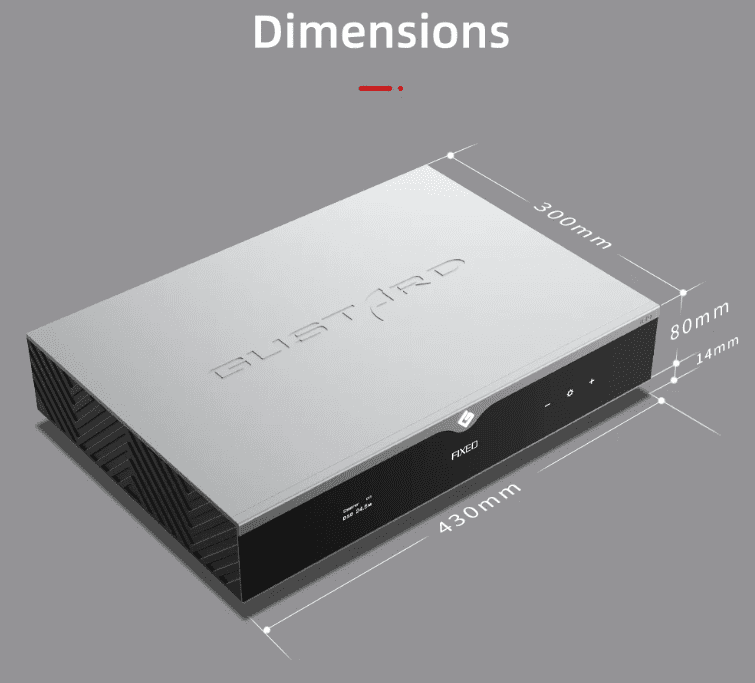

| Dimensions (W x D x H) | Main Chassis: 300 x 80 mm depth/height (94 mm H including feet)[cite: 1] |
| Package Size (W x D x H) | 400 x 180 mm package dimensions[cite: 1] |
