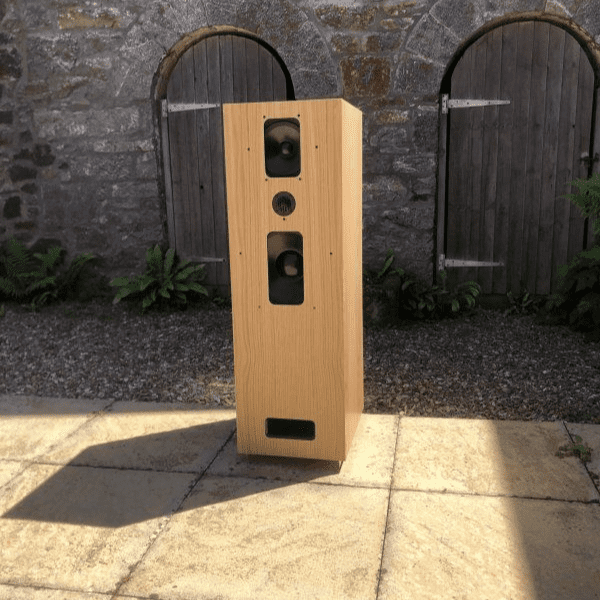

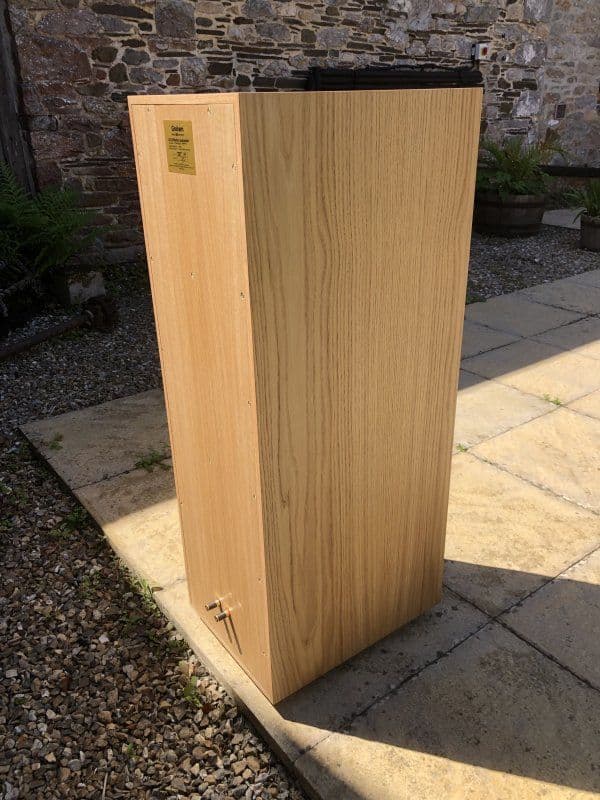

Graham Audio LS5/5f Loudspeakers
Frequently Bought Together
Product Overview & Specifications
The all new LS5/5f delivers an additional 5Hz of bass extension within +/-2dB. In-room, it certainly sounds more like 10hz of additional bass extension. There is noticeably more bass than its stand-mount sibling, though still the maintaining the LS5/5's wonderful bass texture.
According to the BBC's research, the addition of the slots around the woofers, allowed the speakers to perform as a narrower source, creating a wider horizontal dispersion pattern and resultant sweet spot. Improved vertical dispersion also made the speakers easier to position in a room.
The slots also make the speakers easier to position in a room. Because these speakers were originally designed for engineers to monitor the audio signal behind a long mixing console, the speakers have a broad sweet spot. Off-axis listening is perfectly coherent.
These remarkable speakers deliver Midrange Magic in spades, without sacrificing any resolution in the process.
The LS5/5f is 16" taller than the regular LS5/5. It will be available in oak, cherry, rosewood, walnut, or ebony. Partial grills (covering the drivers) will be available in off-white, brown, or black. Fasteners can be requested in black, stainless steel, or gold plated.
Specification of Graham Audio LS5/5f speaker :
- System - 3-way reflex loading
- Enclosure - Thin Wall Damped construction, floor standing
- Recommended Amplifier power - 50 200 watts unclipped program
- Sensitivity - 88dB/2.83v/1m
- Maximum Output - Over 104dB for a pair at 2m
- Nominal Impedance - 8 ohms
- Response - 35Hz-20kHz +/-2dB
- Crossover point - 400Hz, 3.5kHz
- Dimensions - 111 h x 36 w x 48cm d 43.7 x 14.9 x 18.9
- Weight 46Kgs / 101 lb.
- Connectors - Gold plated terminals
- Bass - Long Throw 300mm / 12
- Midrange - 200mm / 8
- HF - 25mm Soft Dome Tweeter / 1
