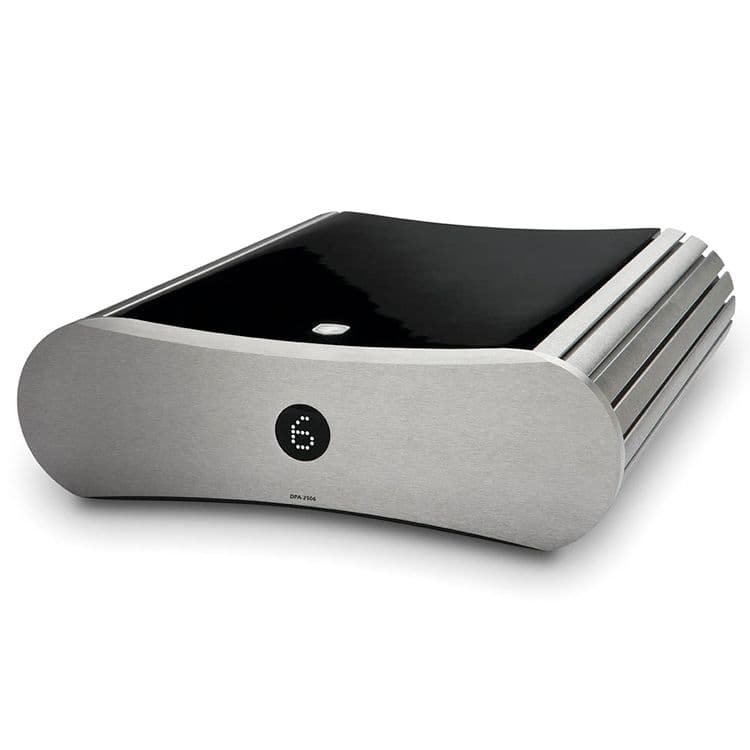

The six-channel Gato Audio DPA-2506 - is a flexible solution that offers a variety of options and combinations with the number of power output channels. A feature of the amplifier is to use modern technology to build the Class-D output stages , which in combination with a bridge connecting channel enables the production of high output power with a compact and elegant design.

Real power

The Gato Audio DPA-2506 provides at least 6x250W under 8 Ohm load, and at 4 ohms the value of channel capacity doubles. Each pair of channels in the amplifier can be connected in a bridge circuit, allowing individually configured power for multi-channel systems, or bi-amping speakers. The most obvious candidate to work in conjunction with the DPA-2506 is the award winning Gato Audio PRD-3 pre amp/dac, but the new model can also accompany the DIA-250/400 integrated amplifier, offering more channels and flexibility in terms of channel capacity. In multichannel systems, the DPA-2506 can serve to enhance the surround sound processor signals, possibly in combination with the PRD-DIA-250/400 in "Home Theater" mode.

Class-D with true analogue audio

The DPA-2506 is a technically advanced solution in the form of Class D output stage with a separate power supply. The amplifying part is built on proven technology, with an optimized precision high-frequency generator and PWM modulator. Fast and accurate switching MOS-FET transistors have a very low on-state resistance, providing superior performance at high frequency with a minimal loss. Output filters on quality polypropylene capacitors and coils with low resistance convert powerful PWM signals back into analogue for an immersive detailed and textured sound.


Specifications:

Output power (230 VAC)	6x 250W / 3x 500W / 2x 500W 250W + 2x / 1x 500W + 4x 250W @ 8 ohms or 6x 500W / 3x 1000W / 2x 1000W + 2x 500W / 1x + 4x 1000W 500W @ 4 ohms
Frequency	20 Hz - 20 kHz ± 0.5 dB 2 Hz - 70 kHz ± 3 dB
CED (power amplifier)	<0.01%
S / N ratio	> 110 dB
Input resistance	20 k RCA or 40 k (balance).
Strengthening	26 dB
Recommended Load Impedance	SE 4 -16 , BTL 8 -16
Switching
Balanced analog inputs	3 pairs of gold-plated XLR (Neutrik)
Unbalanced analog inputs	3 pairs of gold-plated RCA (Stereo)
Acoustic Outputs	6 pairs of gold-plated terminals (banana)
Trigger 12	1 mini jack
Dimensions and Power
Power Requirements	115 VAC / 230 VAC, 50 Hz / 60 Hz
Power consumption	Standby <1W, Idle <75 W, Max. <2000 W
Dimensions (WxHxD)	325 x 105 x 390 mm /12.8 x 4.1 x 15.4 "
Weight	11kg
