Digital to Analog Converter
Especially highlighted is the true 24bit/192kHz digital inputs via USB or Coaxial connector, that enables a sonic performance vastly above that of any CD. Use the CDD-1 Anniversary Edition as a digital connection point for your computer, iPad and streaming devices and it will give you a stunning performance with effortless soundstage and musical details in return.

CD Transport

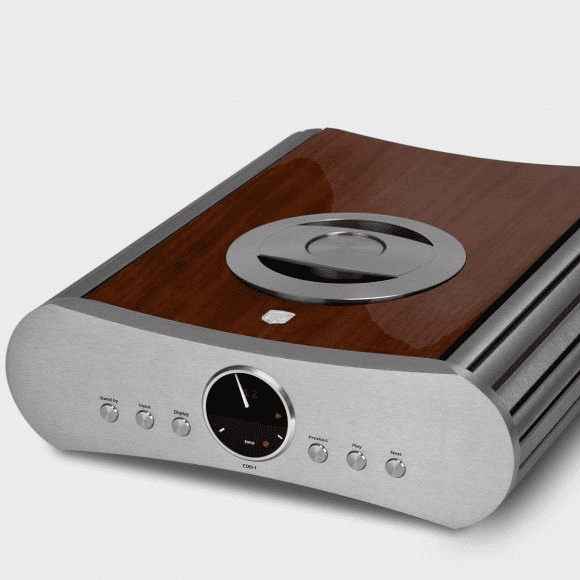

The CDD-1 Anniversary Edition will also play ordinary CDs, retrieving all the fine details of your music collection through the professionally specified and widely acclaimed Philips CDpro2 mechanism.

Features:

• Playback of Red Book CD's
• True 24bit/192kHz digital inputs
• Asynchronous USB interface
• Direct high quality digital connection to iPad
• Asynchronous upsampling to 24bit/192kHz
• Dual diff erential, dual mono 24bit D/A converter
• Low jitter clock circuit
• Analogue multi display, clear and informative
• Sample rate and bit depth read out from digital inputs
• Professional CDpro2LF mechanism
• Drive assembly in 1kg milled aluminium, suspended in Sorbothane®

Technical data

Technical stuff
Output Level	2.2 V unbalanced, 4.4 V balanced
Output Impedance	100 unbalanced, 200 balanced
Frequency response	20 Hz 20 kHz ± 0.2 dB
THD+N	0,002 %
Signal-to-Noise Ratio	120 dB
Digital Inputs	Up to 24 bits @ 192 kHz (S/PDIF and USB input)
Drive	Compatible with red book CD and CD-R
Digital Output	75 coaxial S/PDIF
Connectors
Balanced Analogue Output	1 pair gold-plated XLR Neutrik
Unbalanced Analogue Output	1 pair gold-plated RCA
Digital Output	1 pc. gold-plated RCA
Digital Inputs	1 pc. gold-plated RCA and 1 pc. USB type B
Size & Power
Power Requirements	115 VAC/230 VAC, 50 Hz/60 Hz
Fuse	20 mm sand-filled, 630 mA @ 115 V, 315 mA @ 230 V
Power Consumption	Stand by <1 W, Playing<30 W , Max<60 W
Dimensions (WxHxD)	325 x 110 x 375 mm 12.8 x 4.3 x 14.8 "
Weight	10 Kg. 22 lbs.
