The Garlubidor Divinity DAC is a flagship digital-to-analog converter engineered for reference-level two-channel audio and headphone systems. Utilizing a 24-bit discrete R-2R ladder architecture, it incorporates four sets of ultra-high-precision 0.005% matched resistor networks driven by FPGA-based digital signal processing to eliminate conversion distortion and preserve low-level musical details.
Designed to serve either as a standalone source or a high-performance preamplifier driving a power amplifier directly, the Divinity features an integrated resistor-ladder volume control with a rotary encoder for precise channel balance and low attenuation distortion. Housed in a heavy, resonance-controlled chassis, the unit is powered by dual linear power supplies featuring custom O-core transformers, pure silver internal wiring, and high-precision, low-jitter active crystal oscillators (45.1584 MHz / 49.152 MHz).
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- 24-Bit Discrete R-2R Ladder Network: Employs four sets of 0.005% ultra-high-precision resistor networks for exceptionally linear signal decoding and low THD+N.
- Resistor-Ladder Preamplifier Volume Control: Rotary encoder controls a relay-switched resistor-ladder attenuation network, providing consistent impedance and driving power amplifiers directly without lossy potentiometers.
- FPGA Processing & Dual Clocking: Custom FPGA-based digital processing paired with high-precision 45.1584 MHz and 49.152 MHz active crystal oscillators eliminates digital jitter across all input rates.
- Dual Linear Power Supply with O-Core Transformers: Independent linear power delivery featuring custom O-core transformers, premium capacitors, and pure silver internal wiring.
- High-Resolution Format Decoding: Supports up to PCM 768 kHz and native DSD1024 over USB and dual I²S (HDMI) inputs, as well as PCM 192 kHz and DSD64 over Coaxial, Optical, and AES/EBU.
- Fully Balanced Analogue Circuitry: True differential analogue output stage available via XLR balanced and RCA single-ended connections.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship Discrete R-2R DAC & Preamplifier |
| Brand / Model | Garlubidor Divinity DAC |
| DAC Architecture | 24-Bit Discrete R-2R Resistor Ladder Network |
| Resistor Precision | 4 Sets of 0.005% High-Precision Resistor Networks |
| Digital Signal Processing | FPGA-Based Processing with Dual Active Oscillators (45.1584 MHz / 49.152 MHz) |
| Volume Control System | Rotary Encoder with Resistor-Ladder Attenuation Network (Preamp Mode) |
| USB & I²S Input Capabilities | PCM: 44.1 kHz to 768 kHz | DSD: DSD64 to DSD1024 (Native) |
| S/PDIF & AES Input Capabilities | PCM: 44.1 kHz to 192 kHz | DSD: DSD64 (via DoP) |

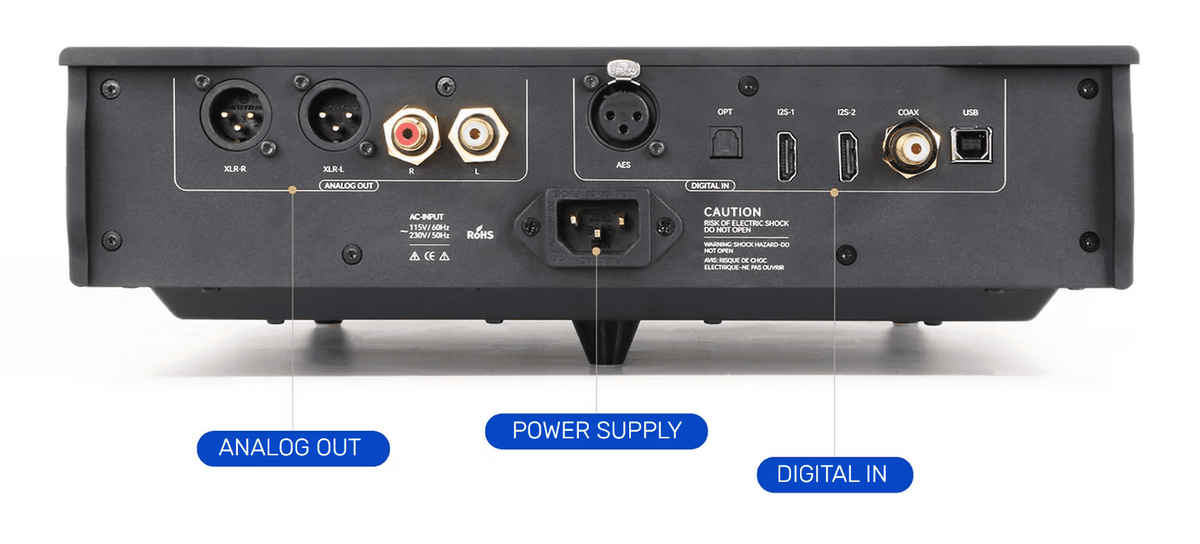

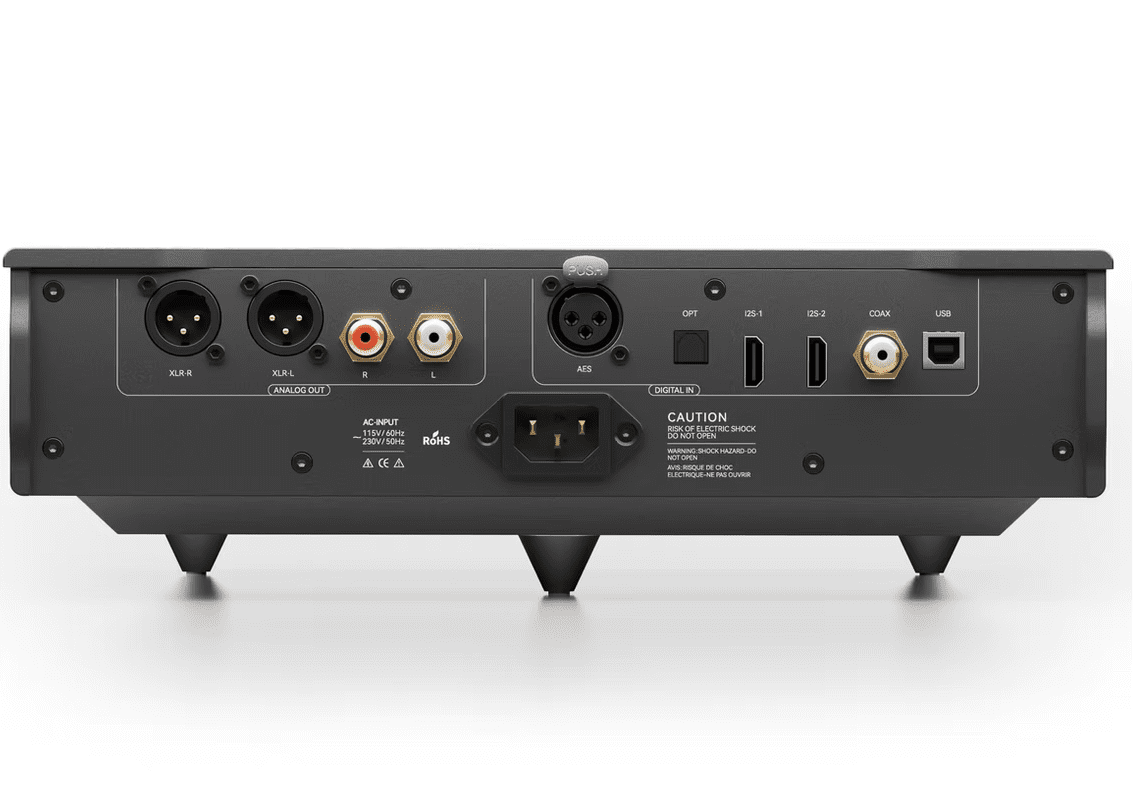

| Supported Digital Inputs | 1 x USB, 2 x I²S (via HDMI), 1 x Coaxial S/PDIF, 1 x Toslink Optical, 1 x AES/EBU |

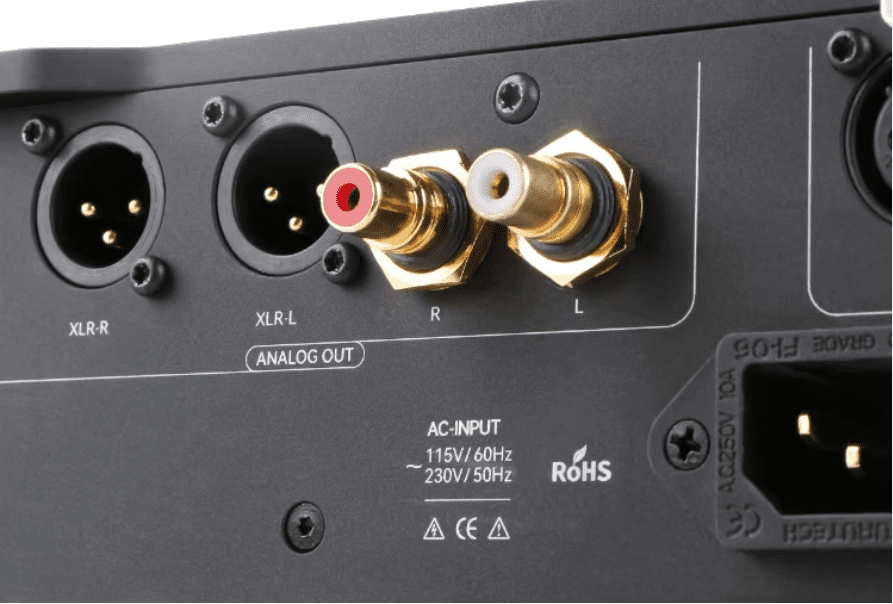

| Analogue Outputs | 1 x Pair Balanced XLR, 1 x Pair Unbalanced RCA |
| Frequency Response | 20 Hz – 80 kHz (+1 / -3 dB) |
| Total Harmonic Distortion + Noise (THD+N) | 0.0025% (A-Weighted) |
| Signal-to-Noise Ratio (SNR) | 125 dB (A-Weighted) |
| Dynamic Range | 125 dB |
| Power Supply & Internal Wiring | Dual Linear Power Supply, Custom O-Core Transformers, Pure Silver Wiring |

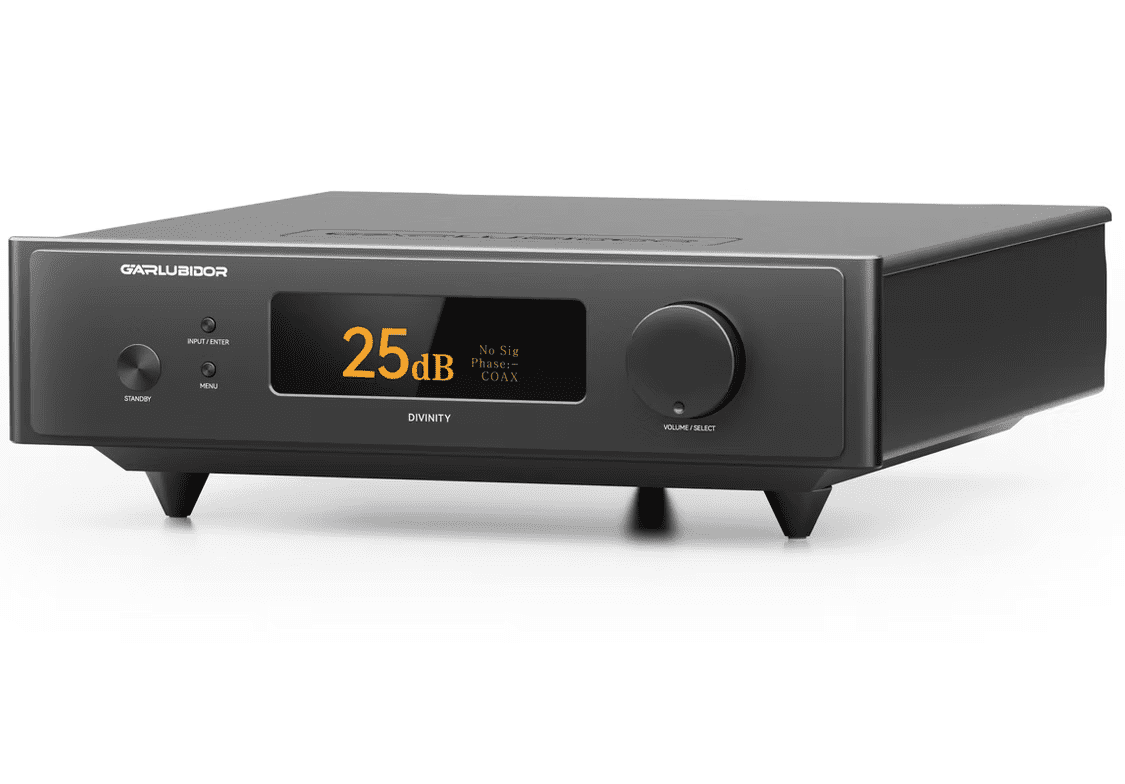

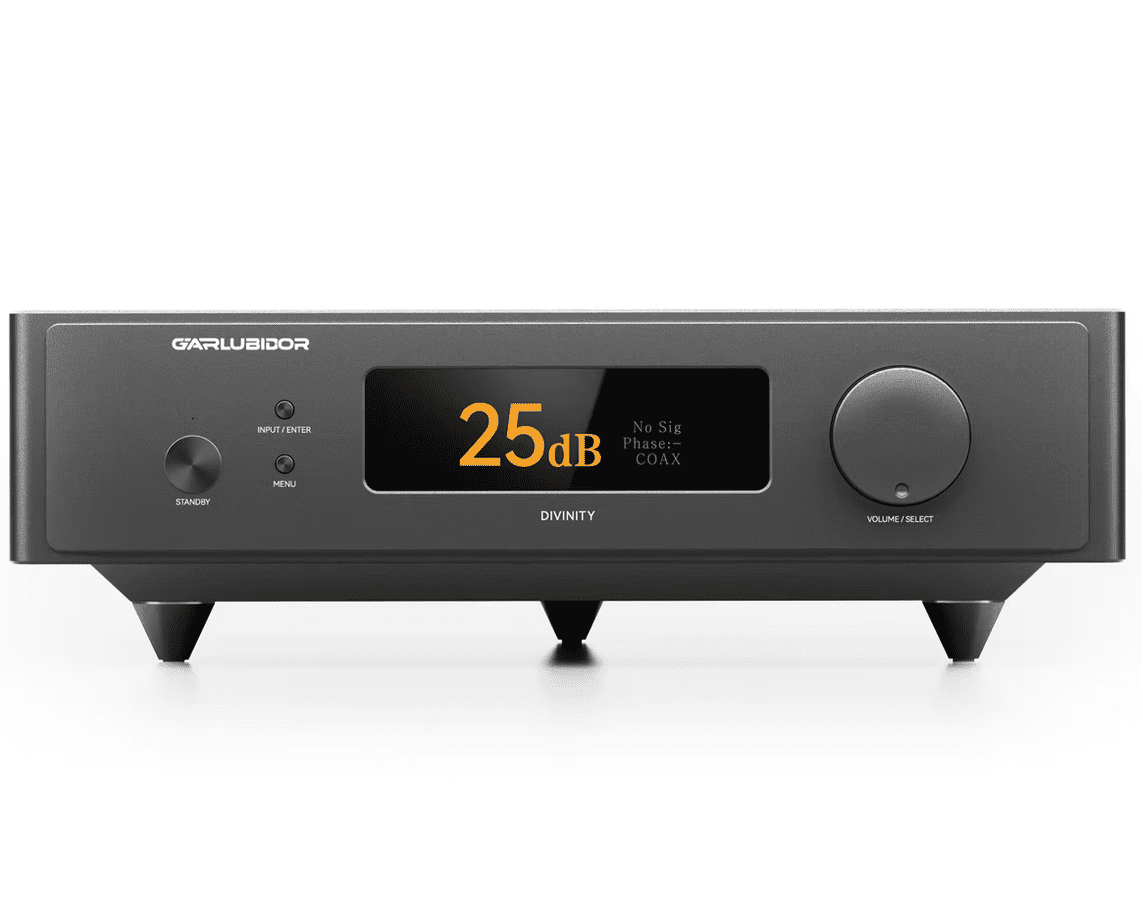

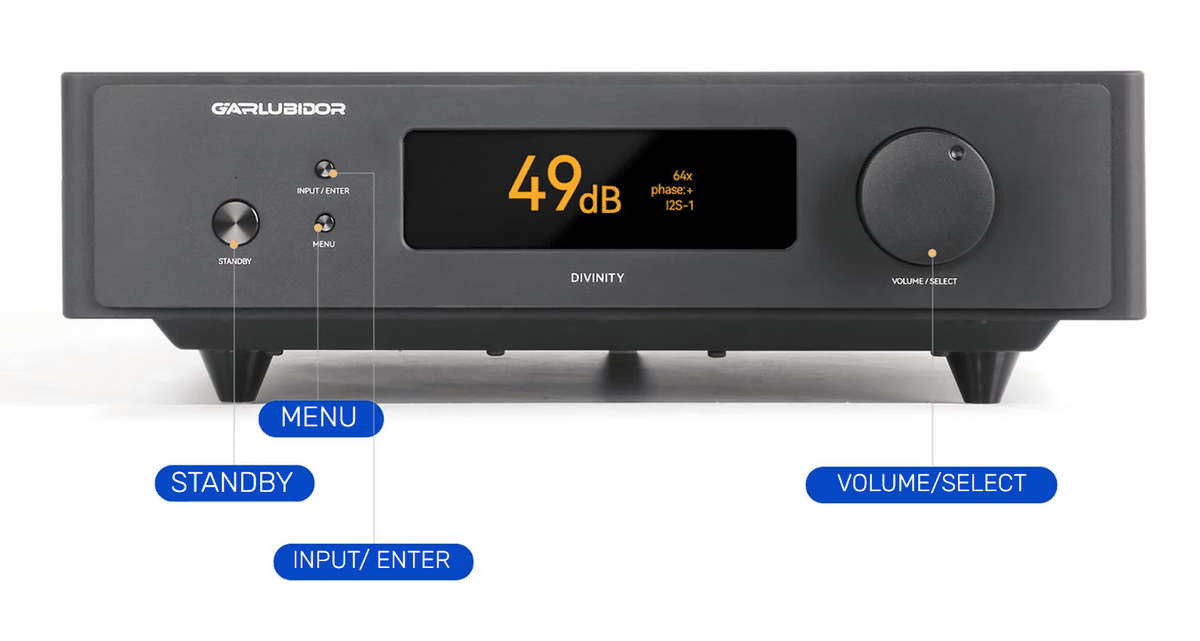

| Display & Interface | OLED Display (Orange), Front Panel Buttons, Solid Metal GRC-2 IR Remote Control |
| Power Requirements | 230V AC, 50 Hz | Power Consumption: 20W (C13 socket) |
| Dimensions (W x D x H) | 330 x 332 x 107 mm (Including feet) |
| Net Weight / Boxed Weight | 10.5 kg / 12.0 kg |
| Warranty | 24 Months |
