Product Overview & Specifications
The Eversolo T8 is a dedicated digital streaming transport engineered to deliver bit-perfect audio signals directly to external digital-to-analogue converters (DACs). Functioning strictly in the digital domain without onboard DAC circuitry, the T8 features electrically isolated digital outputs, dual femtosecond-grade crystal oscillators, and an extensive output array including USB Audio, HDMI I2S, AES/EBU, coaxial, and optical connections. The transport supports high-resolution audio streaming up to 32-bit/768kHz PCM and native DSD512.

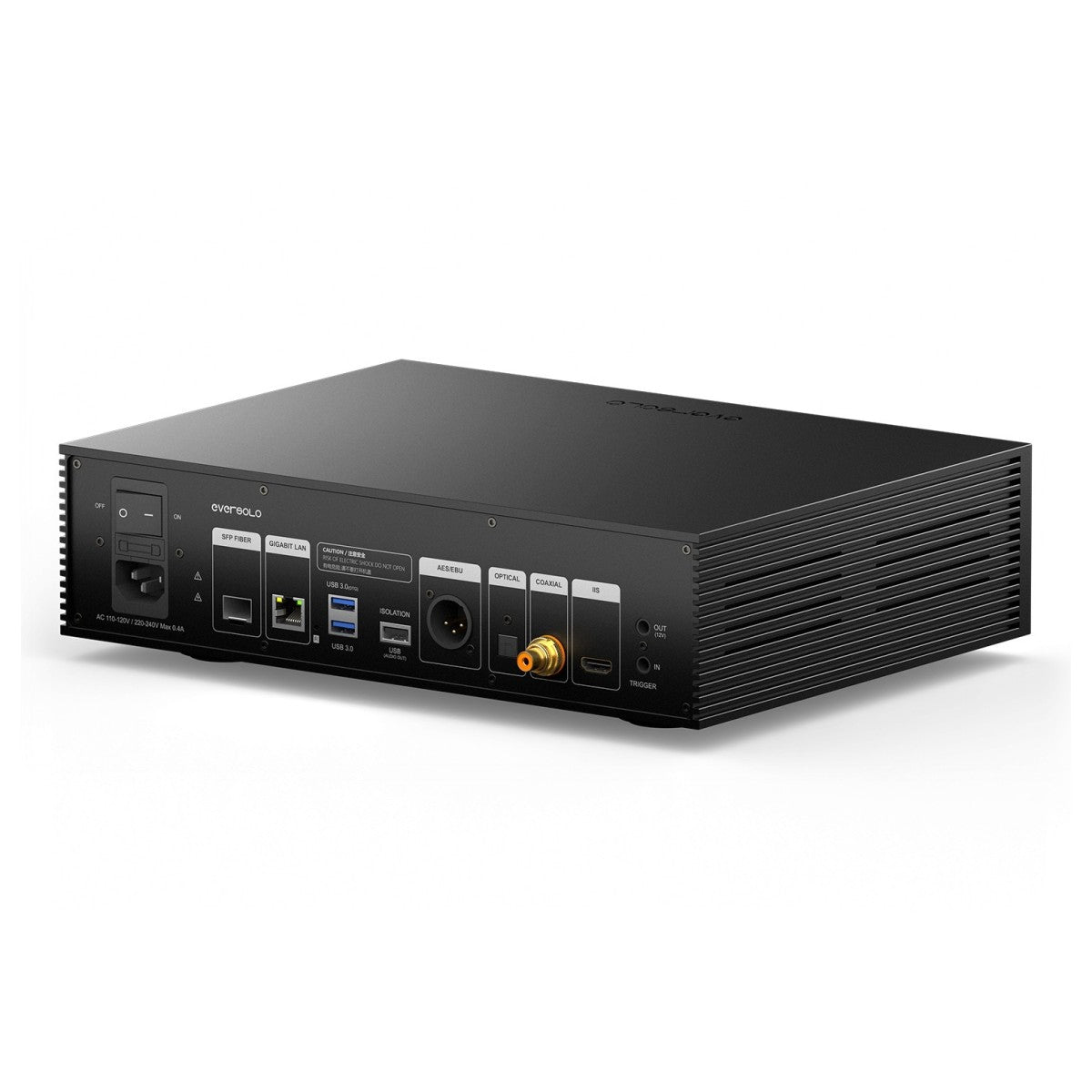

Housed in an aluminium alloy chassis with a 6-inch front-panel LCD touchscreen, the T8 runs on a 4GB DDR4 and 64GB eMMC hardware platform. Network integration is supported via Gigabit Ethernet RJ-45, dual-band Wi-Fi 6, and an integrated SFP fibre optical port to eliminate electrical network noise. The T8 supports primary network protocols (UPnP, SMB, NFS, DLNA), streaming ecosystems including Roon Ready, TIDAL Connect, and Qobuz Connect, and allows full system management via the Eversolo Control application for iOS and Android.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Dedicated Digital Transport Architecture: Pure digital signal transport operating without an internal DAC stage to prevent analogue noise contamination.
- Electrically Isolated Digital Outputs: Output stages are galvanically isolated to eliminate ground loops and reduce RF/EMI interference transmitted to external DACs.
- Femtosecond Master Clock System: Dual ultra-low-jitter femtosecond crystal oscillators synchronize digital signal streams across PCM and DSD formats.
- SFP Optical Fibre Network Port: Integrated SFP cage accommodates single-mode optical transceiver modules for complete electrical isolation from network-borne noise.
- High-Resolution USB & I2S Playback: USB Audio and HDMI-IIS interfaces support bit-perfect transmission up to PCM 768kHz/32-bit and native DSD512, with 8 selectable I2S pinout configurations.
- 6-Inch Touchscreen Interface & App Control: High-resolution full-colour display provides playback navigation, library browsing, and device configuration alongside mobile and tablet app control.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Dedicated Digital Audio Streaming Transport |
| Brand / Model | Eversolo — T8 |
| Chassis Construction | CNC-Machined Aluminium Alloy |
| Display | 6.0" Colour LCD Touchscreen |
| Core Hardware Platform | 4 GB DDR4 RAM + 64 GB eMMC Storage |
| Network Connectivity | Gigabit Ethernet (10/100/1000 Mbps RJ-45), Wi-Fi 6 (2.4 GHz / 5 GHz Dual-Band), SFP Optical Port |
| Data Ports | 2x USB 3.0 (Type-A for External Storage / OTG) |
| USB Audio Output | Up to PCM 768 kHz / 32-bit, Native DSD512 (UAC Standard Compatible) |
| HDMI I2S Output | Up to PCM 768 kHz / 32-bit, Native DSD512 (8 User-Selectable Pinout Modes) |
| S/PDIF & AES/EBU Outputs | Coaxial: PCM up to 192 kHz / 24-bit, DoP64 Optical: PCM up to 192 kHz / 24-bit, DoP64 AES/EBU: PCM up to 192 kHz / 24-bit, DoP64 |
| Supported Audio Formats | DSD (DSF, DFF, SACD ISO up to DSD512), WAV, FLAC, AIFF, ALAC, APE, MP3, AAC, CUE |
| Streaming Protocols & Services | Roon Ready, TIDAL Connect, Qobuz Connect, DLNA, UPnP, SMB, NAS |
| Control Interfaces | Front-Panel Touchscreen, Eversolo Mobile App (iOS / Android), IR Remote Control |
| Power Supply & Consumption | AC 110V–240V (50/60 Hz) | Power Consumption: 20 W Max |
| Dimensions (W x D x H) | 315 x 230 x 88 mm |
| Included Accessories | Remote Control, AC Power Cable, User Manual |
