Product Overview & Specifications
The Eversolo Play CD Edition is an all-in-one streaming integrated amplifier that combines network audio, disc playback, and speaker amplification within a CNC-machined aluminium chassis. Built around a multi-core ARM streaming engine running Eversolo's EOS (EverSolo Original Sampling-rate) technology, the Play CD Edition bypasses Android sample-rate conversion to ensure bit-perfect signal processing up to PCM 768kHz/32-bit and native DSD512. Digital decoding is handled by AKM's VELVET SOUND AK4493SEQ 32-bit DAC, whilst the power section utilises PurePath Ultra HD Class D technology backed by a low-noise PFC + LLC power supply to deliver 60W per channel into 8 Ohms (110W into 4 Ohms).
Equipped with an integrated Hitachi-LG optical CD drive housed in a vibration-dampened chassis, the CD Edition provides stable disc playback with custom error correction and built-in CD ripping functionality. Operating via a 5.5-inch HD colour touchscreen featuring retro VU meters and a customizable RGB volume ring, the system includes room acoustic calibration, a 15-band graphic / 10-band parametric EQ, and smart bass management. Inputs and outputs encompass HDMI ARC, Optical, Coaxial, USB 3.0 OTG, MM/MC Phono, an active Subwoofer output, and direct binding posts for stereo speakers.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Hitachi-LG Optical CD Drive Assembly: Vibration-damped CD-ROM mechanism featuring advanced error-correction algorithms for scratched media and an integrated CD ripper to transfer tracks directly to local storage.
- AKM AK4493SEQ VELVET SOUND DAC: Premium 32-bit DAC delivering wide dynamic range, ultra-low noise, and native hardware decoding up to PCM 768kHz/32-bit and DSD512.
- PurePath Ultra HD Class D Amplification: High-efficiency amplification section supplying 60W per channel into 8 Ohms (110W into 4 Ohms) with extremely low distortion (THD < 0.0037%).
- EOS Bit-Perfect Audio Engine: Proprietary EverSolo Original Sampling-rate engine completely bypasses operating system Sample Rate Conversion (SRC) limits for uncompromised playback purity.
- Integrated Room Correction & Dual EQ Engine: Automated room acoustic calibration via mobile app or external microphone, featuring a 15-band graphic EQ, 10-band parametric EQ, and customizable crossover control.
- MM/MC Phono & HDMI ARC Inputs: Built-in phono preamplifier stage compatible with Moving Magnet and Moving Coil turntables, alongside HDMI ARC for TV integration.
- 5.5-Inch HD Touchscreen & RGB Light Ring: Full-colour interface with customizable VU meter styles and a musical spectrum RGB lighting ring surrounding the volume dial.
- Low-Noise PFC + LLC Power Supply: Power Factor Correction and LLC resonant converter power supply with NTC thermistor temperature protection and inrush current suppression.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Streaming Integrated Amplifier with Integrated CD Player |
| Brand / Series | Eversolo — Play Series |
| Model Designation | Eversolo Play CD Edition |
| Optical Disc Mechanism | Hitachi-LG Vibration-Damped Optical CD Drive (Supports Audio Playback & CD Ripping) |
| DAC Architecture | AKM AK4493SEQ (32-Bit VELVET SOUND Processing) |
| Amplification Topology | PurePath Ultra HD Class D Architecture |
| Power Output (RMS) | 60 Watts x 2 @ 8 Ω | 110 Watts x 2 @ 4 Ω |
| Digital Resolution Support | PCM up to 768 kHz / 32-Bit | Native DSD up to DSD512 (DSF, DFF, SACD ISO) |
| Display & Controls | 5.5-inch Colour LCD Touchscreen, Customisable RGB Volume Ring, Dynamic VU Meters |
| Digital Audio Inputs | 1x HDMI ARC, 1x Optical Toslink, 1x Coaxial RCA (up to PCM 192kHz/24-Bit, DoP64) |
| Analogue Audio Inputs | 1x Stereo Line RCA (Max 2V RMS), 1x MM/MC Phono RCA Input |

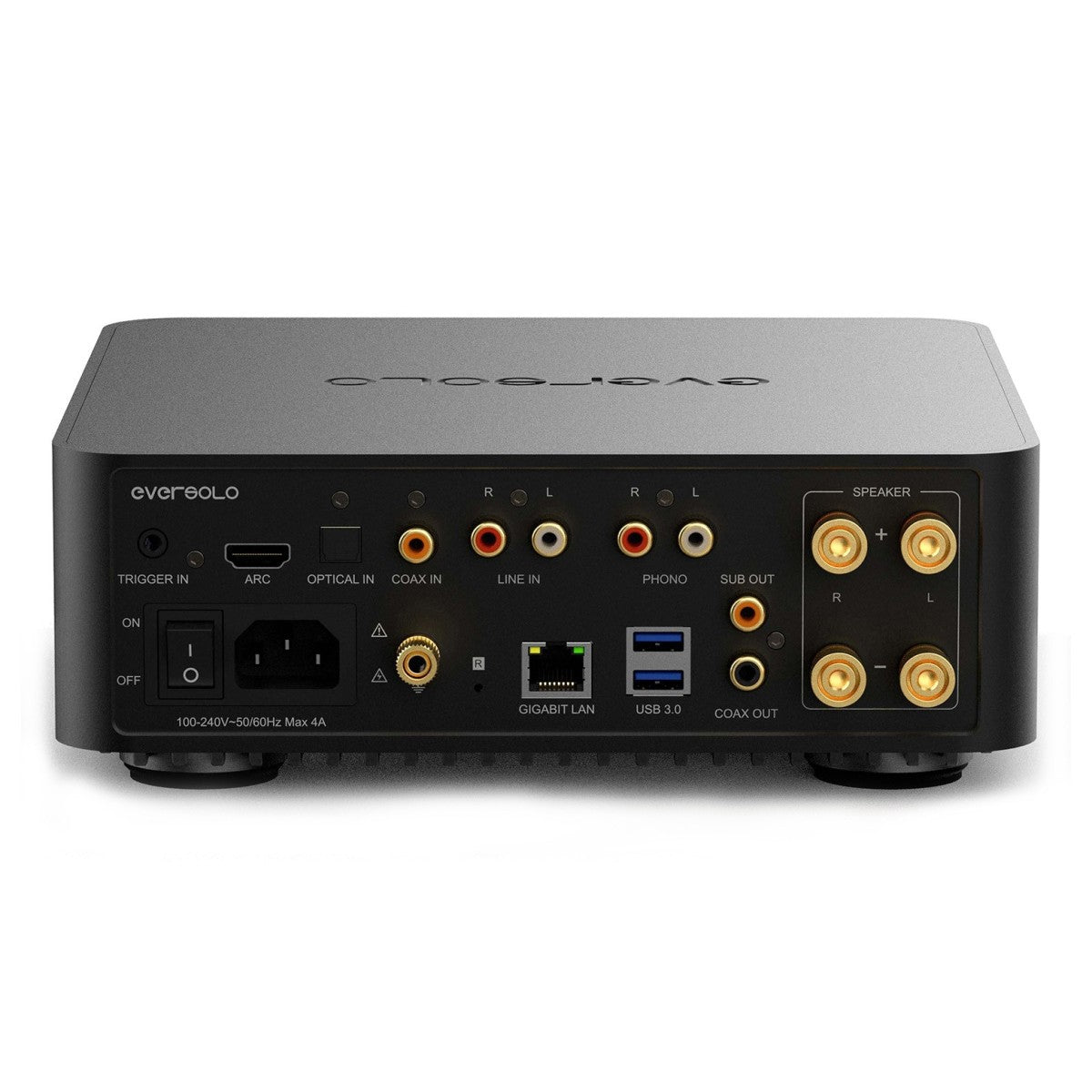

| Network & Data Connections | Gigabit Ethernet (RJ-45 10/100/1000Mbps), Dual-Band Wi-Fi (2.4G/5G), 2x USB 3.0 OTG Ports |
| Digital Audio Outputs | 1x USB Audio Out (UAC Compliant, up to PCM 768kHz/32-Bit, DSD512), 1x Coaxial RCA |
| Analogue Audio Outputs | Direct Speaker Binding Posts, 1x Mono Subwoofer RCA Out (Adjustable Crossover 40 Hz – 500 Hz) |
| Wireless Connection | Bluetooth 5.0 (SBC / AAC) |
| Streaming Protocols & Services | Roon Ready, TIDAL Connect, Qobuz Connect, DLNA/UPnP, WebDAV, TIDAL, Qobuz, Amazon Music, Deezer, IDAGIO |
| Audio System Performance | SNR: 109 dB (A-Weighted) | THD: 0.0037% @ 5W / 1kHz |
| Equalisation & DSP | 15-Band Graphic EQ, 10-Band Parametric EQ (Independent L/R), 23 Genre Presets, Room Correction |
| Power Supply & Requirements | PFC + LLC Low-Noise Power Supply (AC 110~240V 50/60Hz, Max 4A) |
| Chassis Material & Finish | CNC-Machined Unibody Aluminium Alloy Housing (Black) |
| Dimensions (L x W x H) | 230 x 230 x 75 mm |
| Net Weight | 2.9 kg |
