Product Overview & Specifications

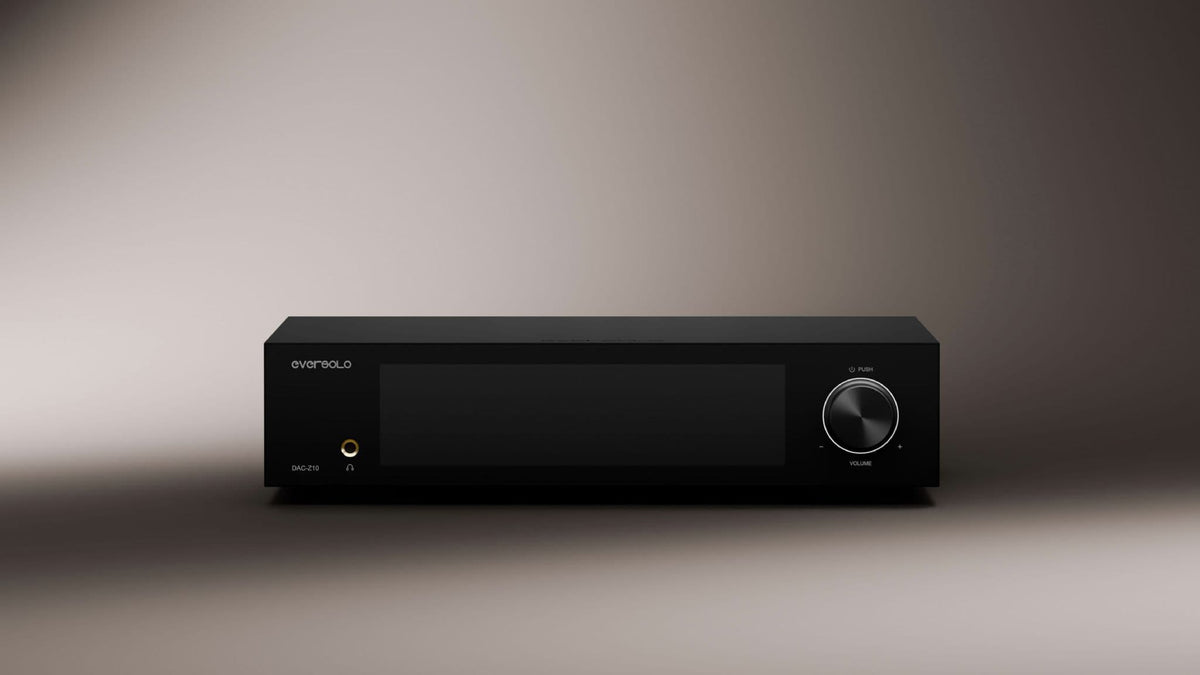

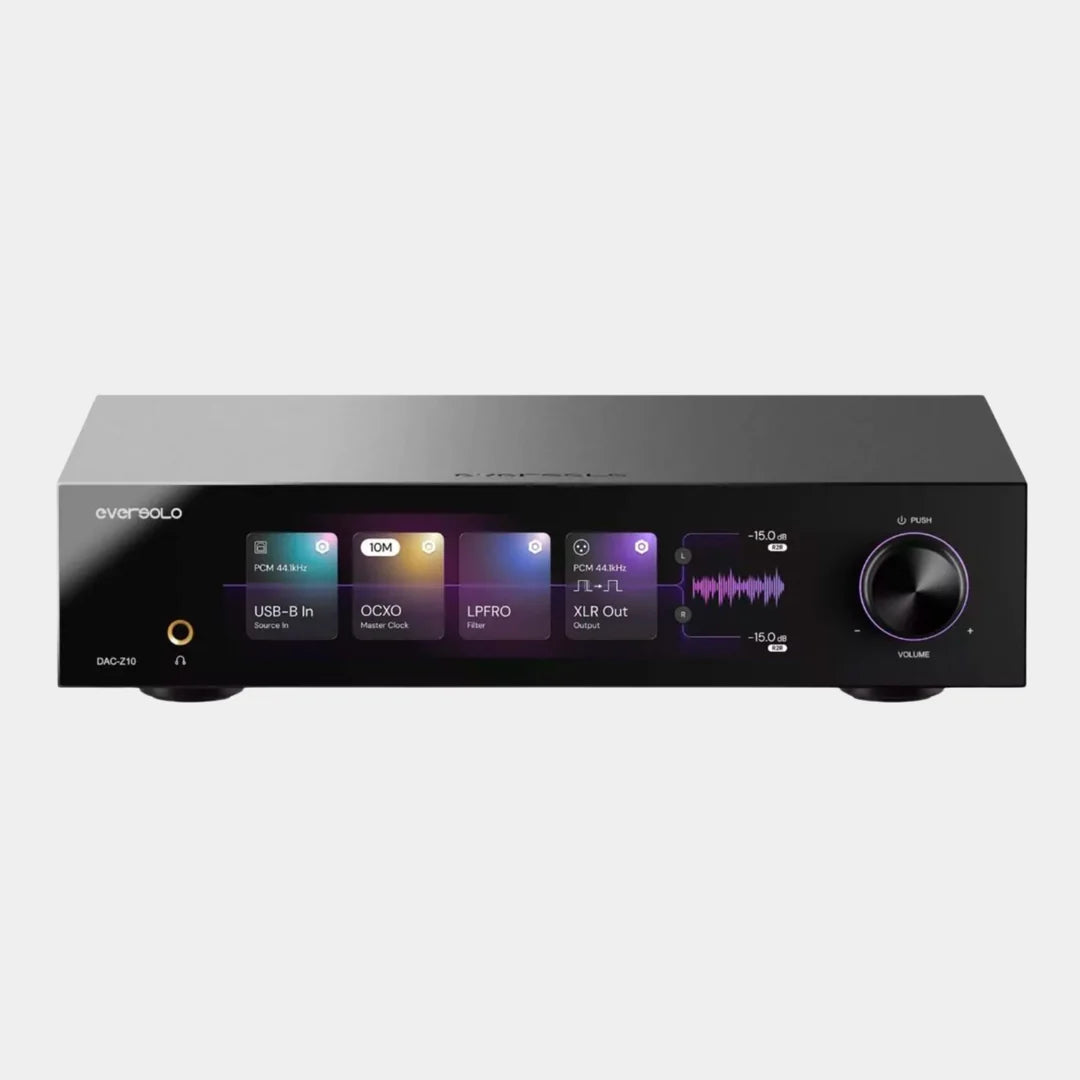

The Eversolo DAC-Z10 is a flagship digital-to-analogue converter and balanced preamplifier engineered for uncompromising audio performance. Featuring a Fully Isolated Architecture (FIA™) that completely separates the digital and analogue domains, three independent linear power supplies, and dual AK4191 + AK4499 DACs in a dual-mono configuration, it delivers exceptional signal purity, ultra-low noise, and remarkable spatial accuracy.
KEY FEATURES & SYSTEM HIGHLIGHTS
- Fully Isolated Architecture (FIA™): Completely separates digital and analogue domains to minimise interference and preserve signal purity.
- Triple Linear Power Supplies: Three independent linear power supplies individually power the left channel, right channel, and system architecture.
- Dual-Mono AKM Velvet Sound™ DACs: Independent AK4191 + AK4499 DAC pairs for left and right channels.
- Fully Balanced Preamplifier: Employs precise dual-channel R2R volume control.
- Eversolo Precision Core™ Clocking: OCXO Temperature-Controlled Crystal Oscillator with PLL technology and external 10MHz & 25MHz master clock support.
- FPGA Redefined Processing: Built-in FPGA shapes IIS data and refines the clock before reaching the DAC.

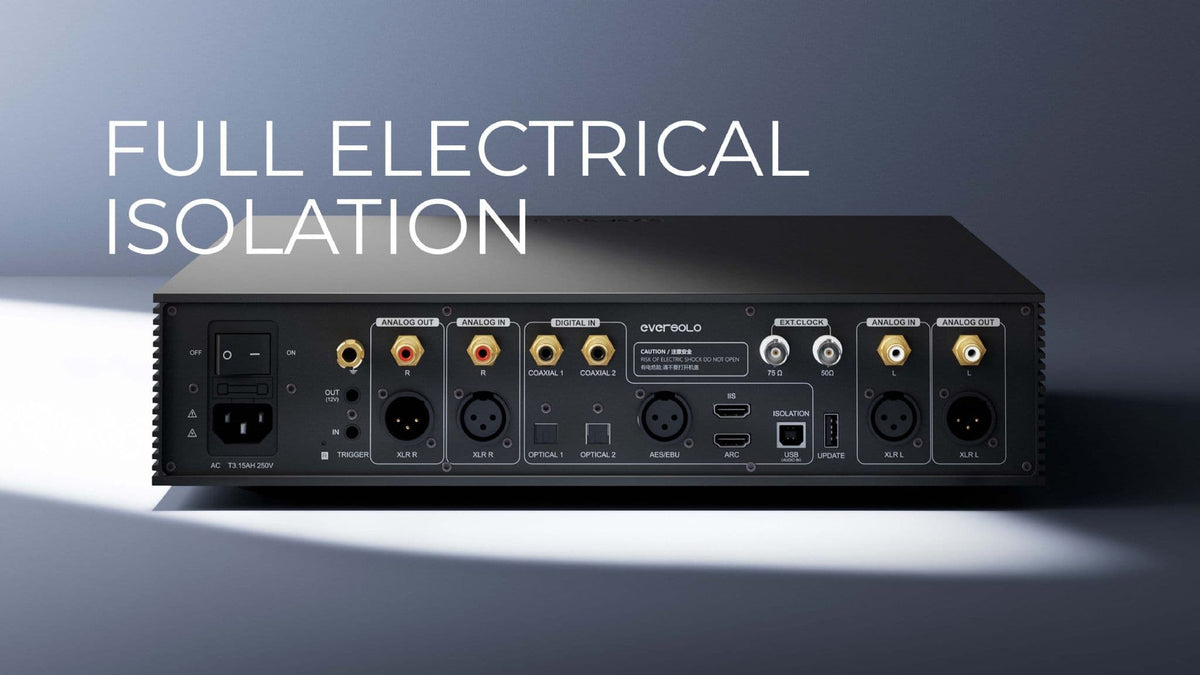

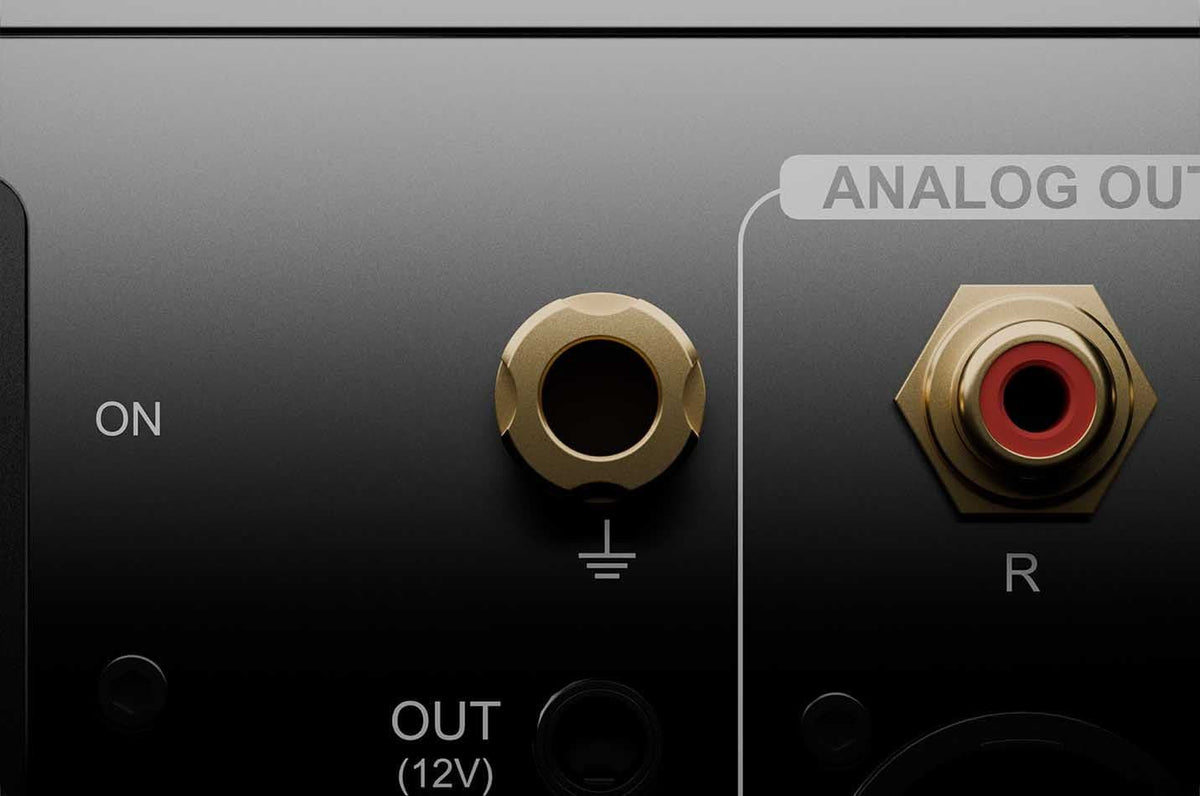

- Isolated Inputs & Outputs: Dedicated isolated AES/EBU input, 8-mode IIS digital input, and an external grounding post to eliminate noise.

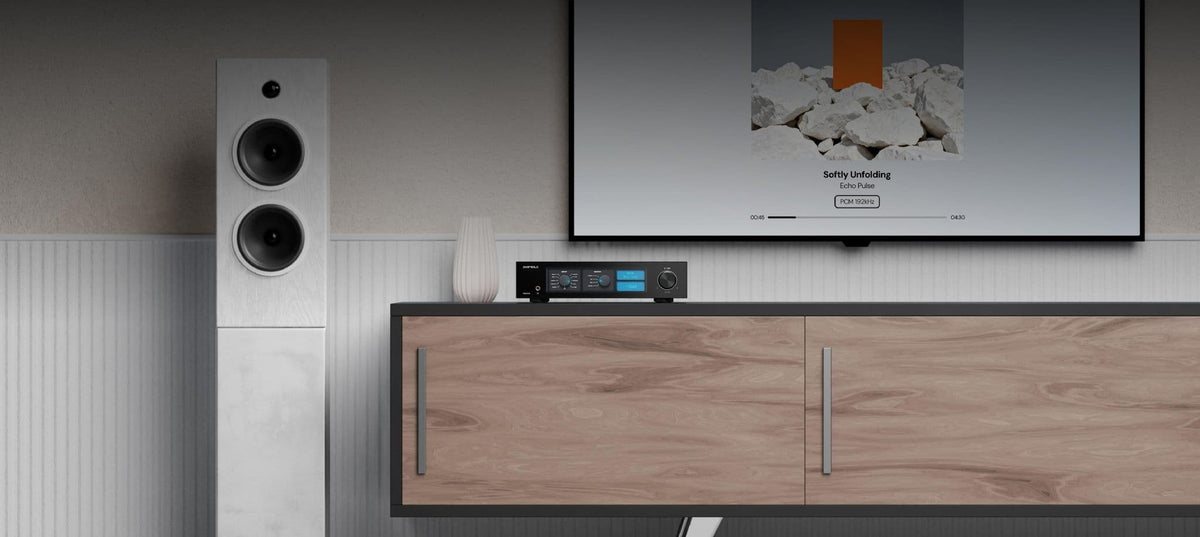

- HDMI ARC / eARC: Effortless TV and home theatre integration.
- Headphone Amplifier: Dedicated 6.35mm headphone amplifier module with automatic impedance detection and gain adjustment.
- Wireless Connectivity: Built-in Qualcomm QCC5125 Bluetooth 5.0 module supporting high-resolution codecs.

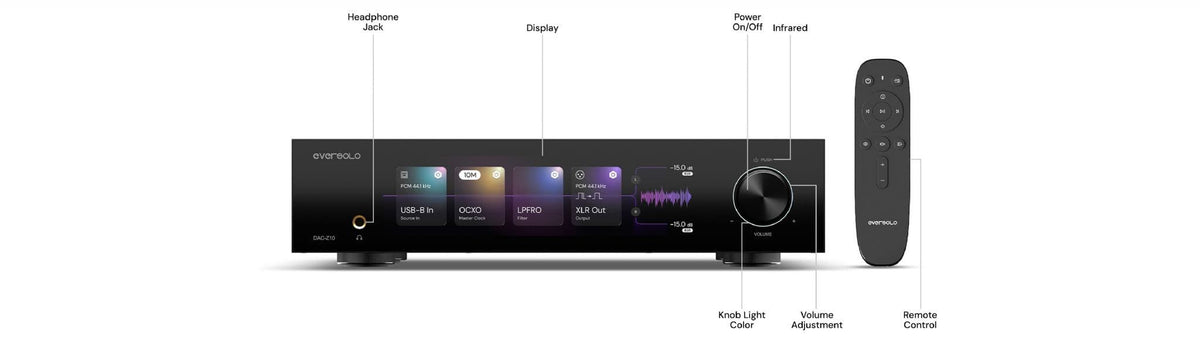

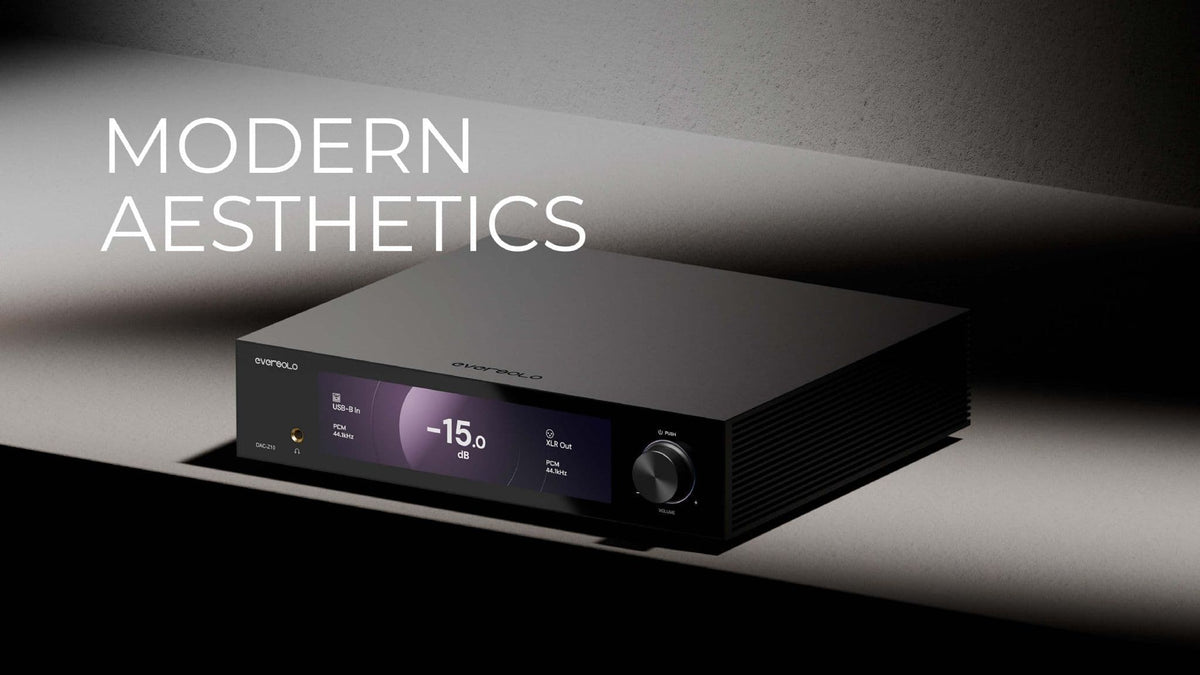

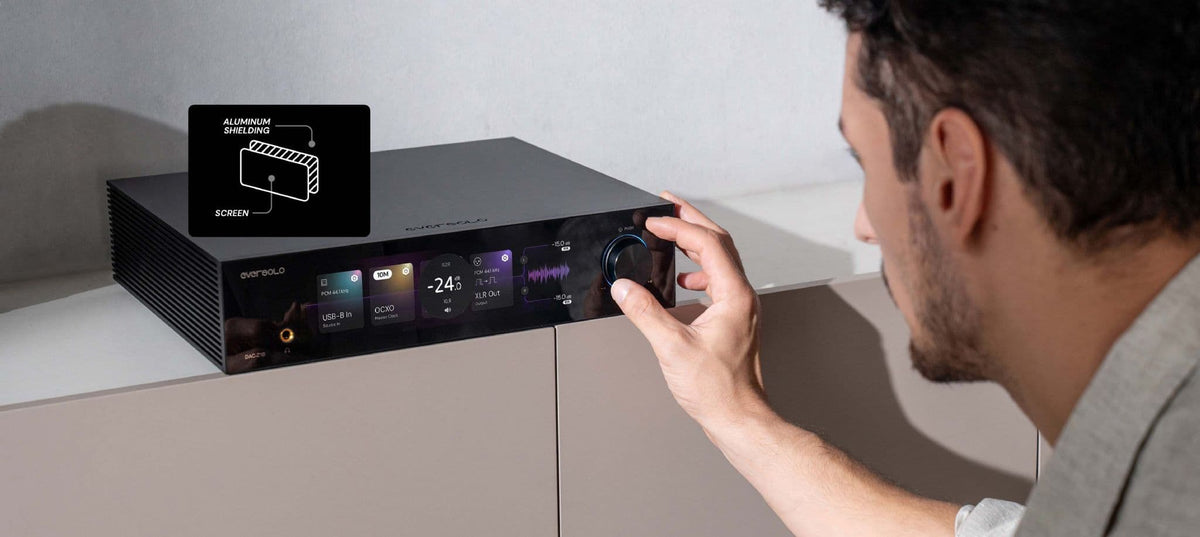

- Display & Control: Large 8.8-inch IPS touchscreen, full-function remote control, and mobile app control.
- Customisable Sound: 6 DAC filter characteristics and up to 15dB left/right balance gain adjustment across analogue and digital inputs.
SPECIFICATIONS
BASIC PARAMETERS
| Specification | Detail |
|---|---|
| Model | Eversolo DAC-Z10 |
| Display | 8.8" IPS Touchscreen |
| Chassis Material | Aluminium Alloy |
| Main Processor | DCP8568 |
| DAC Configuration | Left Channel: AK4191 + AK4499 | Right Channel: AK4191 + AK4499 |
| Audio Processor | Multi-core USB Audio Processor |
| Op-Amp Chip | OPA1612 |
| Power Supply | Triple Ultra-Low Noise Linear Power Supplies |
| Power Supply Voltage | AC 100–240V, 50/60Hz |
| Rated Power Consumption | 32W |
| Dimensions (L × W × H) | 365mm × 310mm × 78mm |

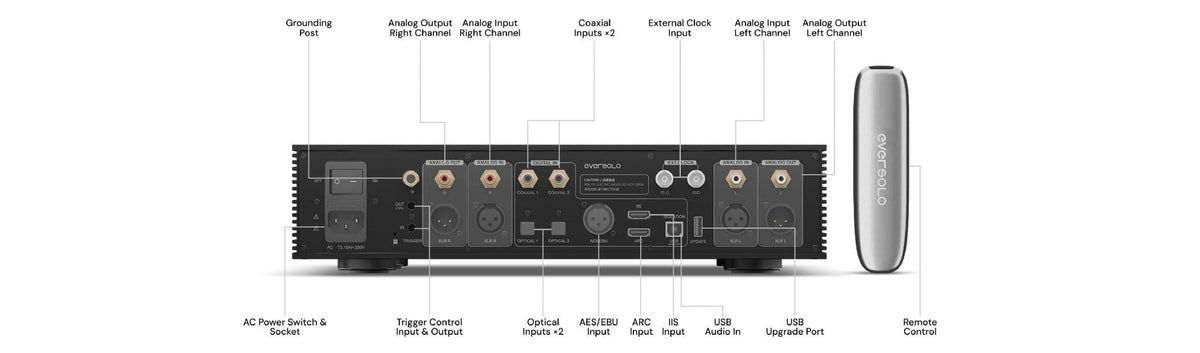

AUDIO INPUTS & OUTPUTS
| Input / Output | Specification & Support |
|---|---|
| USB-B Audio Input | Compatible with Windows 10+, macOS, Android, iOS; up to Stereo DSD512 / PCM 768kHz 32-Bit |
| IIS Input | 8 mode configurations; up to Stereo DSD512 / PCM 768kHz 32-Bit |
| AES/EBU Input | Up to Stereo PCM 192kHz/24-Bit / DSD64 DoP |
| Optical Inputs (×2) | Up to Stereo PCM 192kHz/24-Bit / DSD64 DoP |
| Coaxial Inputs (×2) | Up to Stereo PCM 192kHz/24-Bit / DSD64 DoP |
| HDMI ARC Input | Supports ARC and eARC modes; up to Stereo PCM 192kHz/24-Bit |
| Bluetooth Input | Qualcomm QCC5125 (BT 5.0); supports SBC / AAC audio protocols |
| Analogue Inputs | XLR (Balanced), RCA |
| Analogue Pre-Outs | XLR (Balanced), RCA |
| Headphone Output | 6.35mm Single-Ended |
| Recommended Headphone Impedance | 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω) |

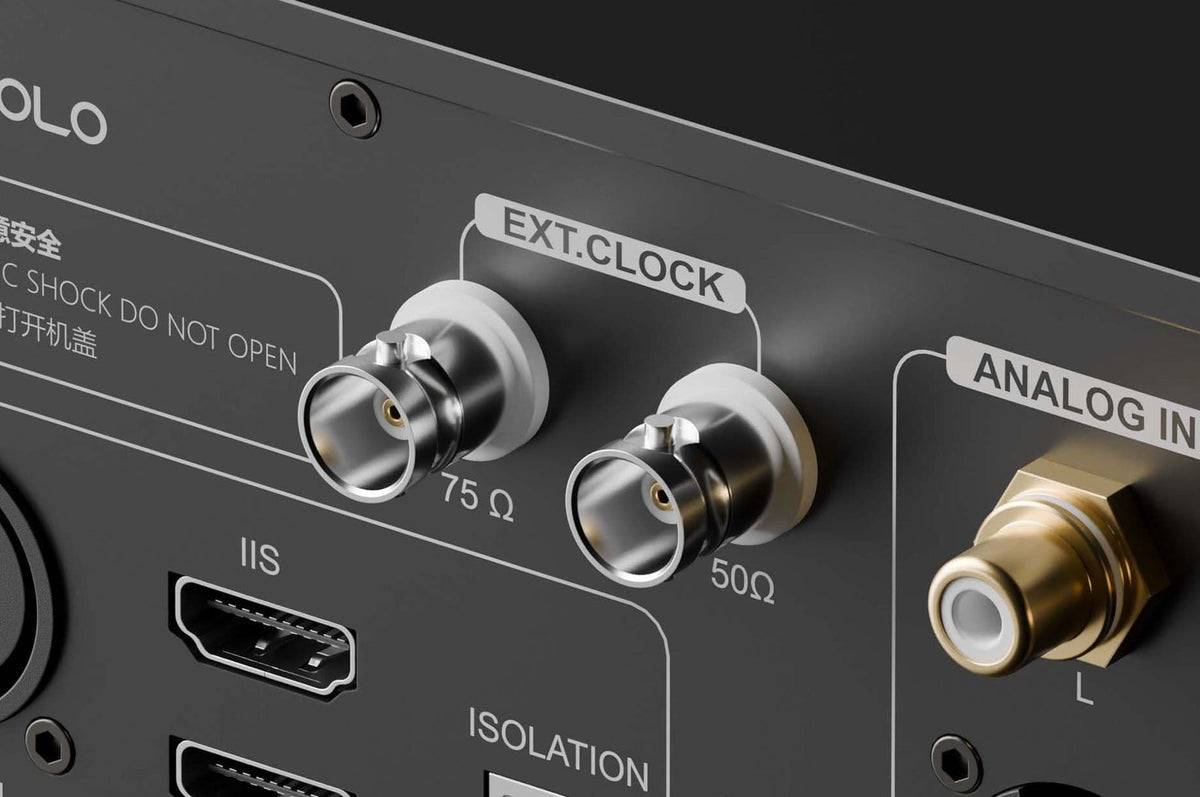

| External Clock Input | Supports 10MHz / 25MHz clock inputs with 50Ω or 75Ω impedance |
| USB Port | USB 2.0 (×1, reserved for firmware upgrades) |
AUDIO PERFORMANCE
| Output | Level | THD+N | SNR / DNR | Noise Floor | Frequency Response | Crosstalk |
|---|---|---|---|---|---|---|
| XLR Balanced Out | 5.0 Vrms @ 0dBFS | 0.00008% @ 1kHz (-122dB) | 130dB | <1.2μVrms | 20Hz–20kHz (±0.1dB) | -130dB |
| RCA Out | 2.5 Vrms @ 0dBFS | 0.000097% @ 1kHz (-120dB) | 128dB | <1.5μVrms | 20Hz–20kHz (±0.1dB) | -123dB |
| Headphone (Low Gain) | 4.0 Vrms @ 0dBFS | 0.0003% @ 1kHz (-110dB) | 124dB | <2.5μVrms | 20Hz–20kHz (±0.1dB) | — |
| Headphone (Mid Gain) | 5.6 Vrms @ 0dBFS | 0.00018% @ 1kHz (-115dB) | 126dB | <2.5μVrms | 20Hz–20kHz (±0.1dB) | — |
| Headphone (High Gain) | 7.0 Vrms @ 0dBFS | 0.00013% @ 1kHz (-118dB) | 127dB | <2.5μVrms | 20Hz–20kHz (±0.1dB) | — |

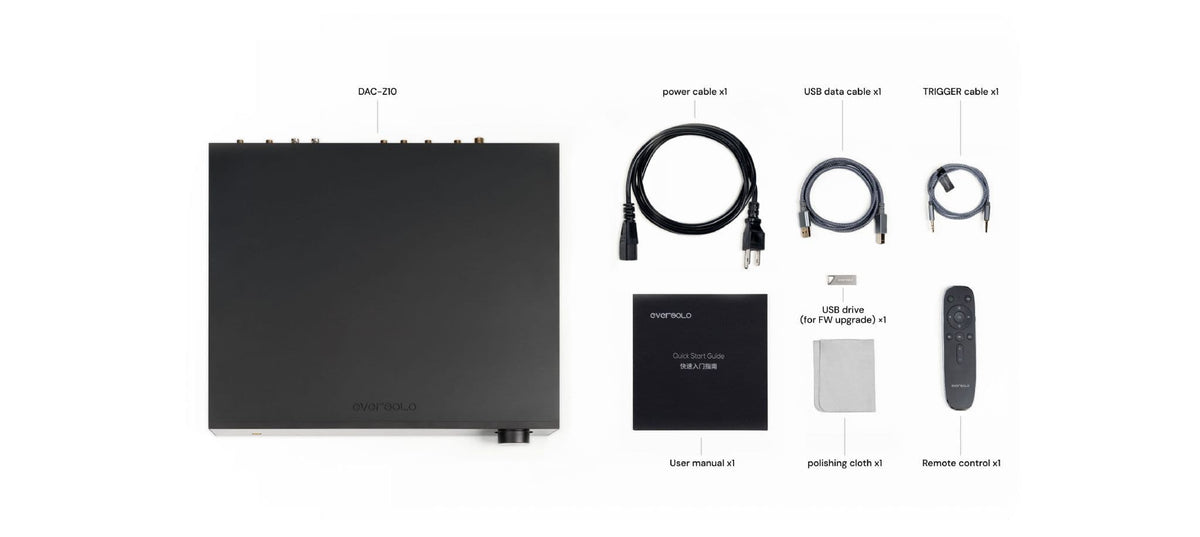

WHAT'S IN THE BOX
- 1 × Remote Control
- 1 × Power Cable
- 1 × USB Data Cable
- 1 × TRIGGER Cable
- 1 × USB Drive (for Firmware Upgrade)
- 1 × Polishing Cloth
- 1 × User Manual
