Product Overview & Specifications

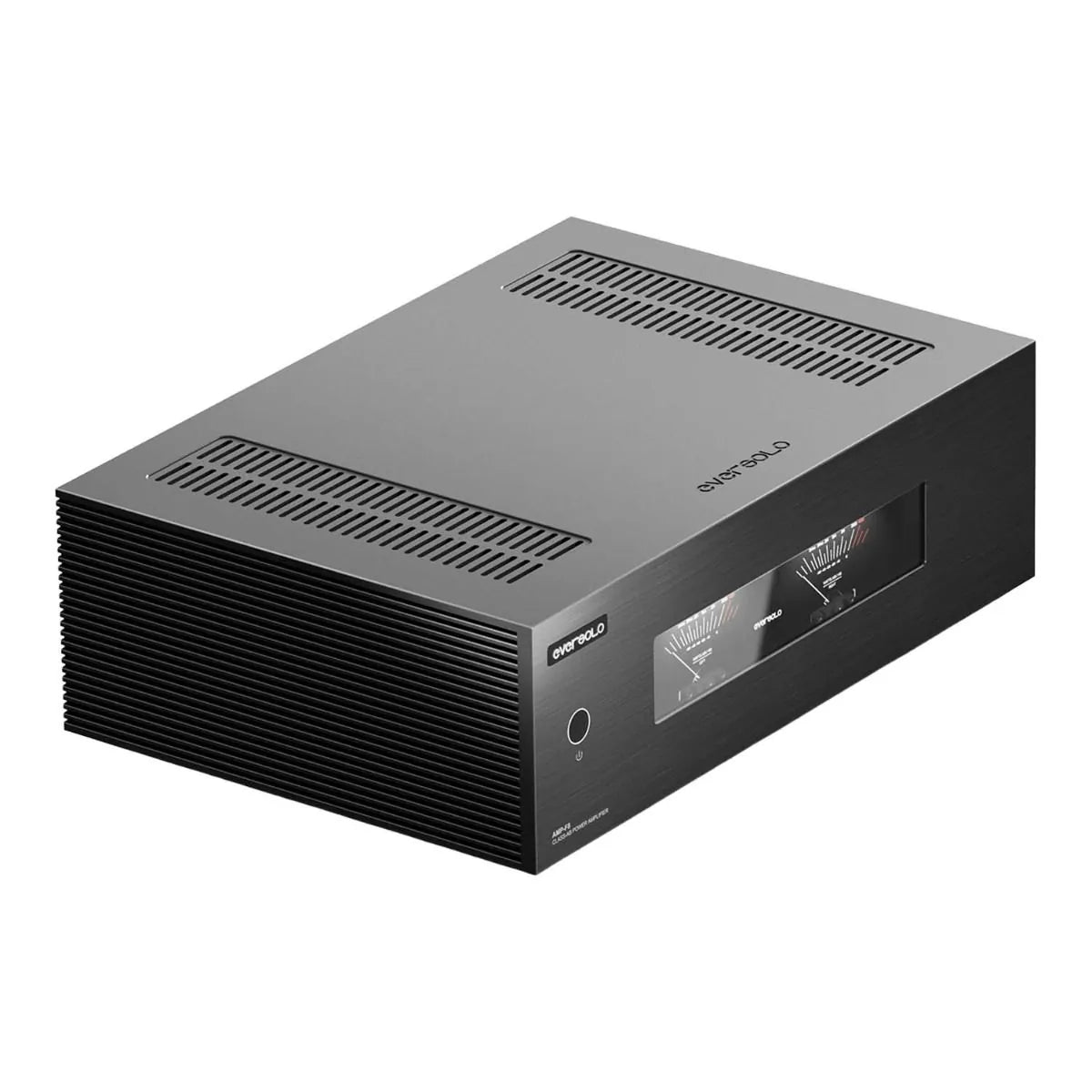

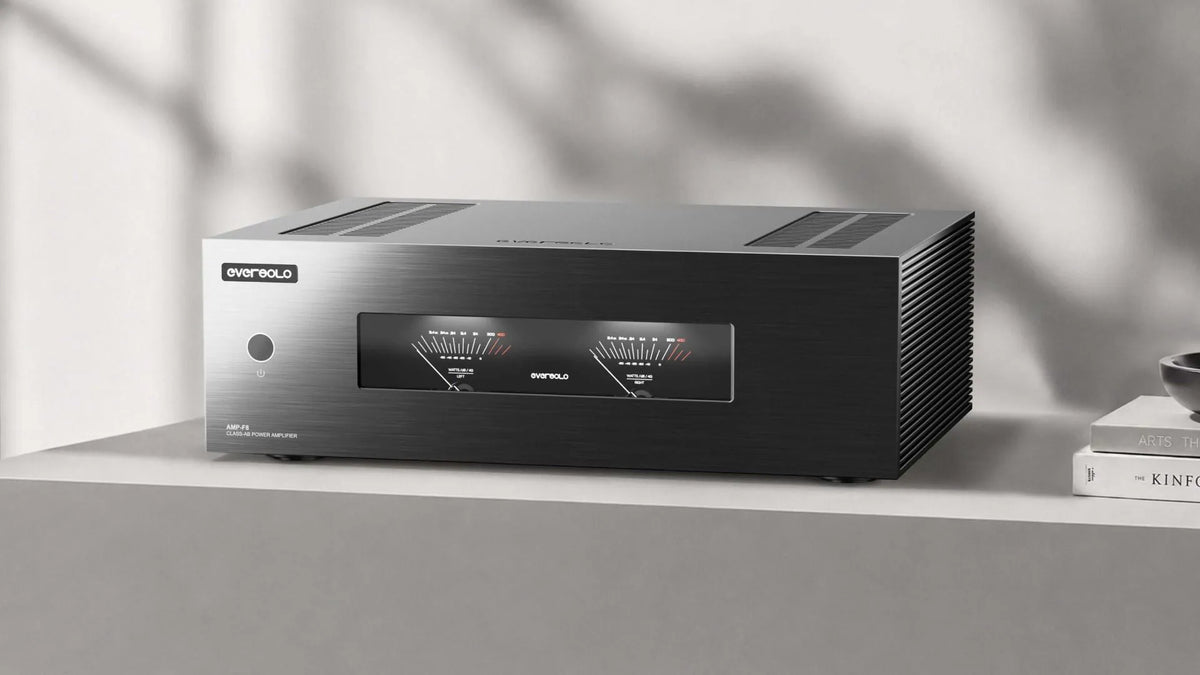

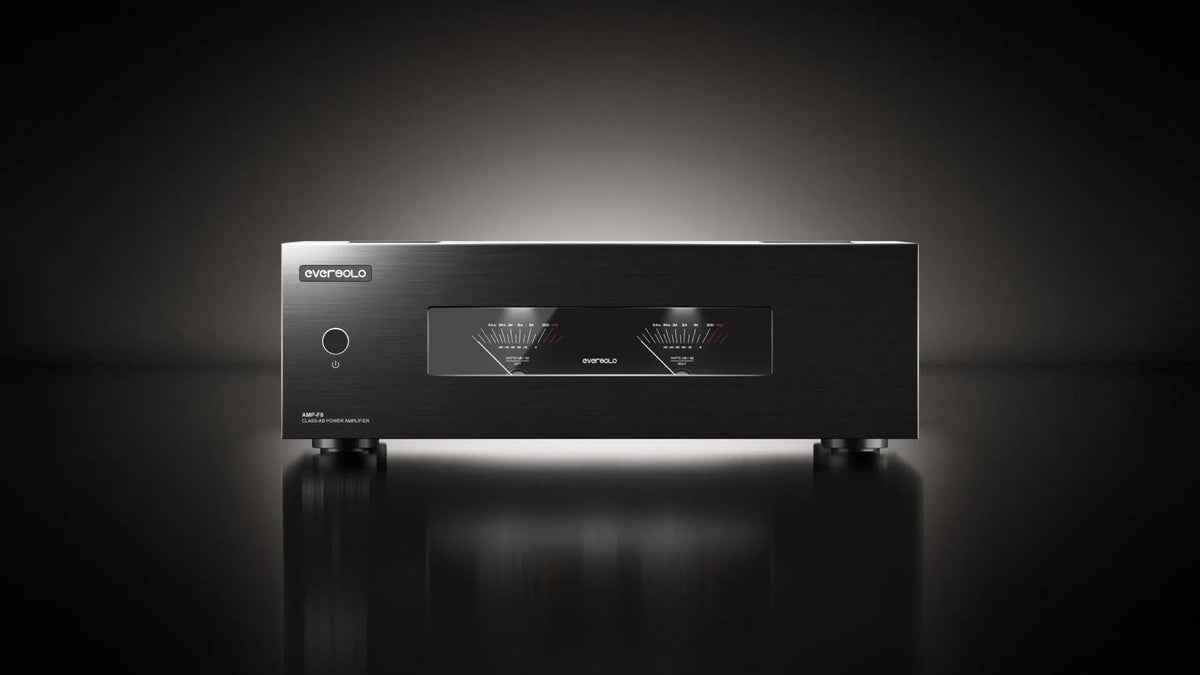

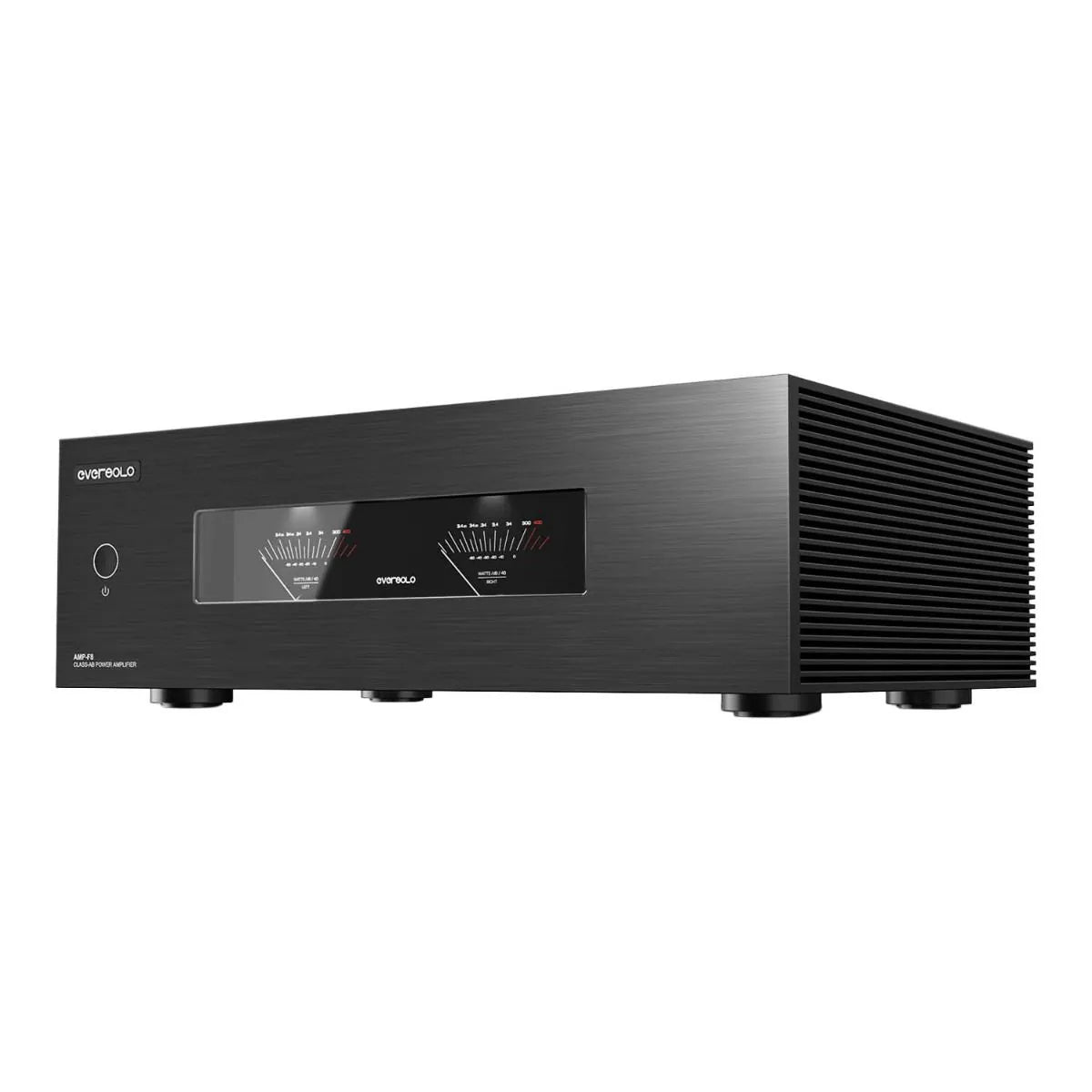

The Eversolo AMP-F8 is a high-performance Class AB stereo power amplifier engineered for low-noise signal reproduction and high-current loudspeaker control. Delivering 180W RMS per channel into 8 ohms and 280W RMS into 4 ohms in stereo mode - or up to 500W RMS into 8 ohms in bridged mono configuration - the AMP-F8 provides ample dynamic headroom for demanding floorstanding loudspeakers. The amplifier employs a dual differential input architecture with symmetrical circuitry and precision negative feedback, achieving a THD+N of 0.003%, a signal-to-noise ratio of ≥115 dB, and a damping factor exceeding 400 for rapid transient decay and bass control.
Built upon a custom 800W toroidal linear power supply with an integrated DC blocking circuit to eliminate mains DC offset and mechanical hum, the AMP-F8 incorporates an energy bank of 24 audio-grade filter capacitors. The output stage utilizes three pairs of precision-matched high-current power transistors per channel in parallel configuration for linear current distribution across varied impedance loads. Housed in a CNC-machined, sandblasted anodized aluminium chassis with real-time analogue VU meters, the unit includes balanced XLR and single-ended RCA inputs with selectable gain (23 dB / 29 dB) and 12V trigger connectivity.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- High-Power Class AB Output Stage: Delivers 180W/ch @ 8Ω, 280W/ch @ 4Ω in stereo mode, and 500W RMS @ 8Ω in bridged mono mode.
- Parallel Power Transistor Architecture: Employs three pairs of precision-matched high-current transistors per channel to ensure uniform current distribution and high linearity.
- 800W Toroidal Linear Power Supply: Custom low-noise transformer supported by 24 audio-grade filter capacitors to handle dynamic peaks without voltage sag.
- Integrated AC DC Blocker Circuit: Suppresses DC offset present in mains AC power, preventing transformer core saturation, acoustic hum, and mechanical vibration.
- Dual Differential Input Topology: Fully symmetrical circuit layout suppresses common-mode noise and RF interference, achieving 0.003% THD+N and 115 dB SNR.
- High Damping Factor (>400): Provides mechanical grip over woofer cones for fast, controlled bass transients.

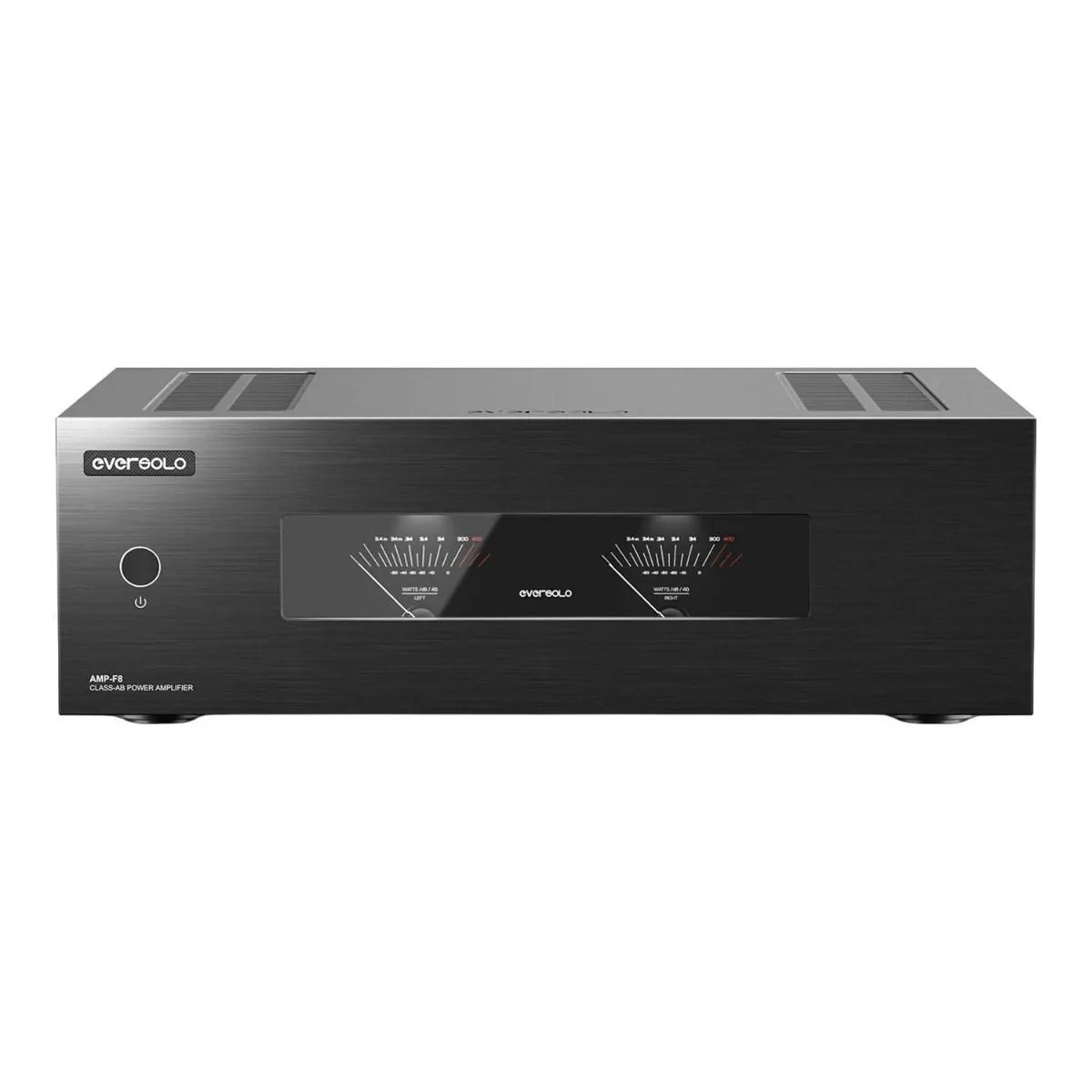

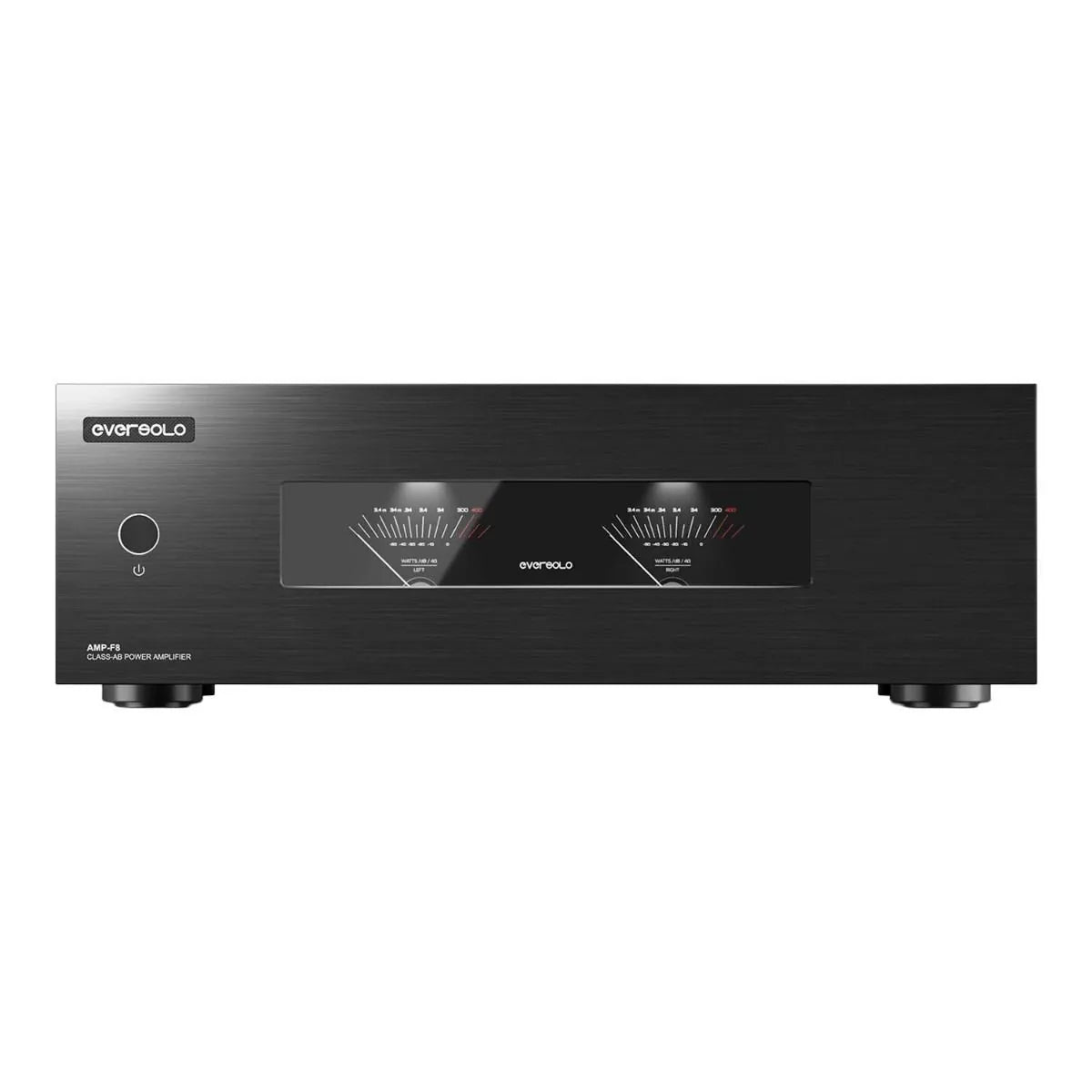

- Real-Time Dual Analogue VU Meters: Precision backlit meters integrated into the front panel display real-time signal levels.
- Flexible Connectivity & Gain Matching: Equipped with balanced XLR and RCA inputs with independent 23 dB / 29 dB gain switching and 12V trigger support.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Stereo / Mono Bridged Power Amplifier |
| Brand / Model | Eversolo — AMP-F8 |
| Amplification Topology | Class AB (Dual Differential Input, Parallel Transistor Output) |
| Continuous Output Power (Stereo) | 2x 180 W RMS @ 8 Ω | 2x 280 W RMS @ 4 Ω |
| Continuous Output Power (Bridged Mono) | 500 W RMS @ 8 Ω |
| Frequency Response | 10 Hz – 30,000 Hz (±0.5 dB, @ 1 W / 8 Ω) |
| Total Harmonic Distortion + Noise (THD+N) | 0.003% (@ 1 kHz) |
| Signal-to-Noise Ratio (SNR) | ≥ 115 dB (A-Weighted) |
| Damping Factor | > 400 (@ 8 Ω, 1 kHz) |
| Channel Crosstalk | ≤ -95 dB (180 W @ 8 Ω / 1 kHz) |

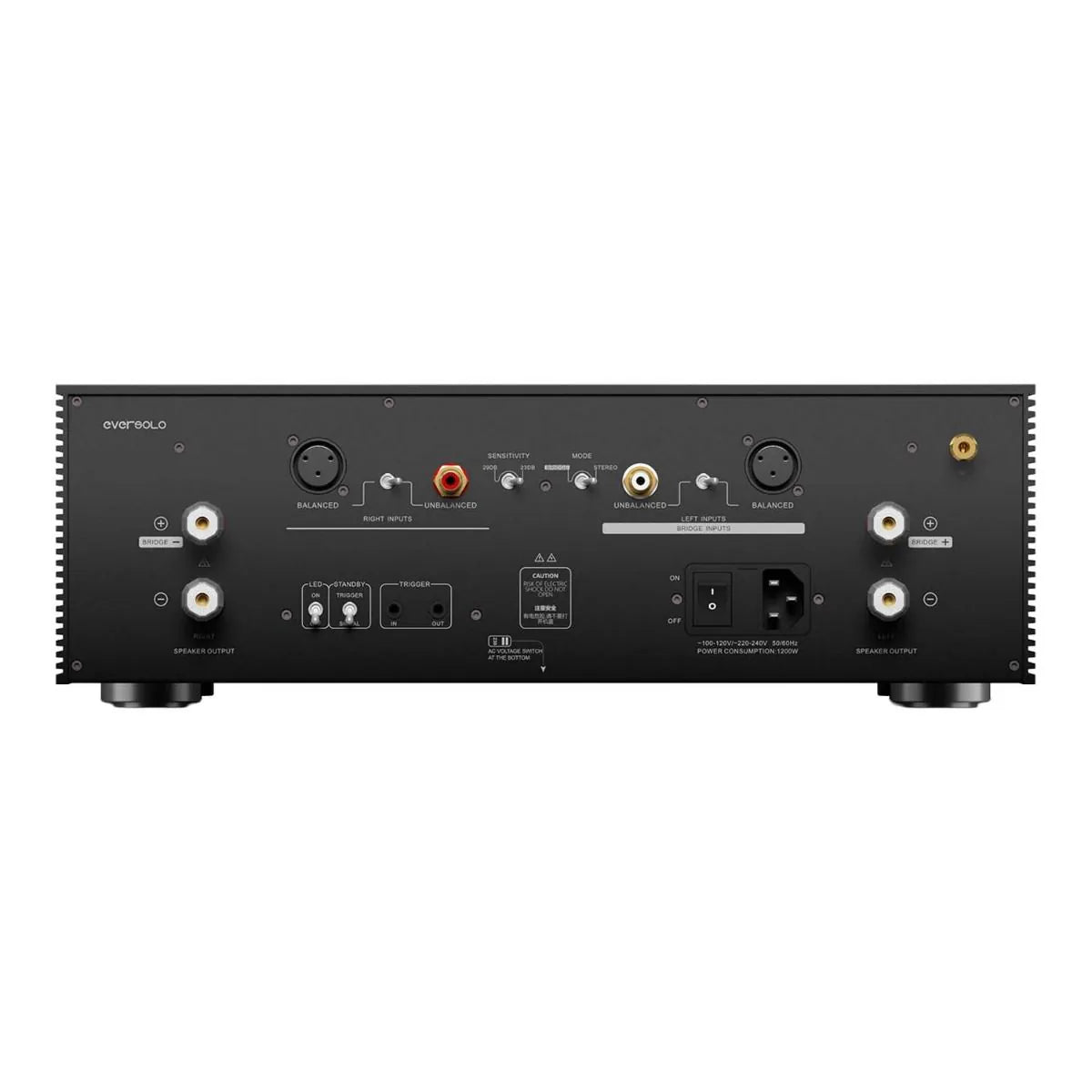

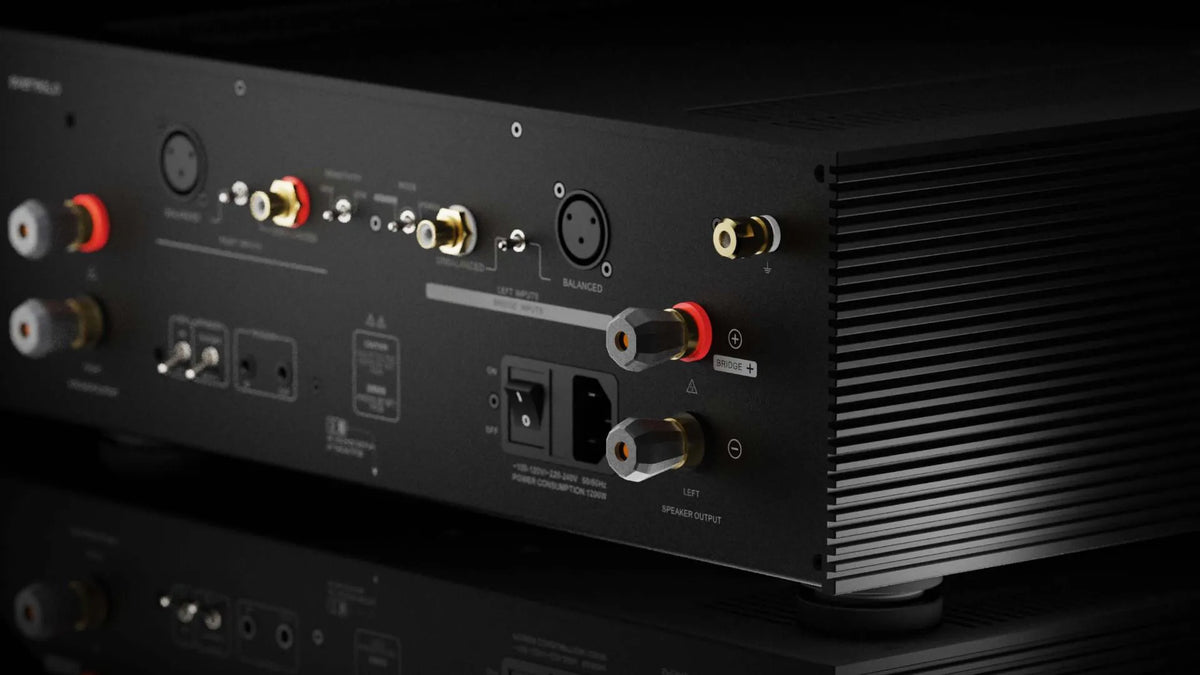

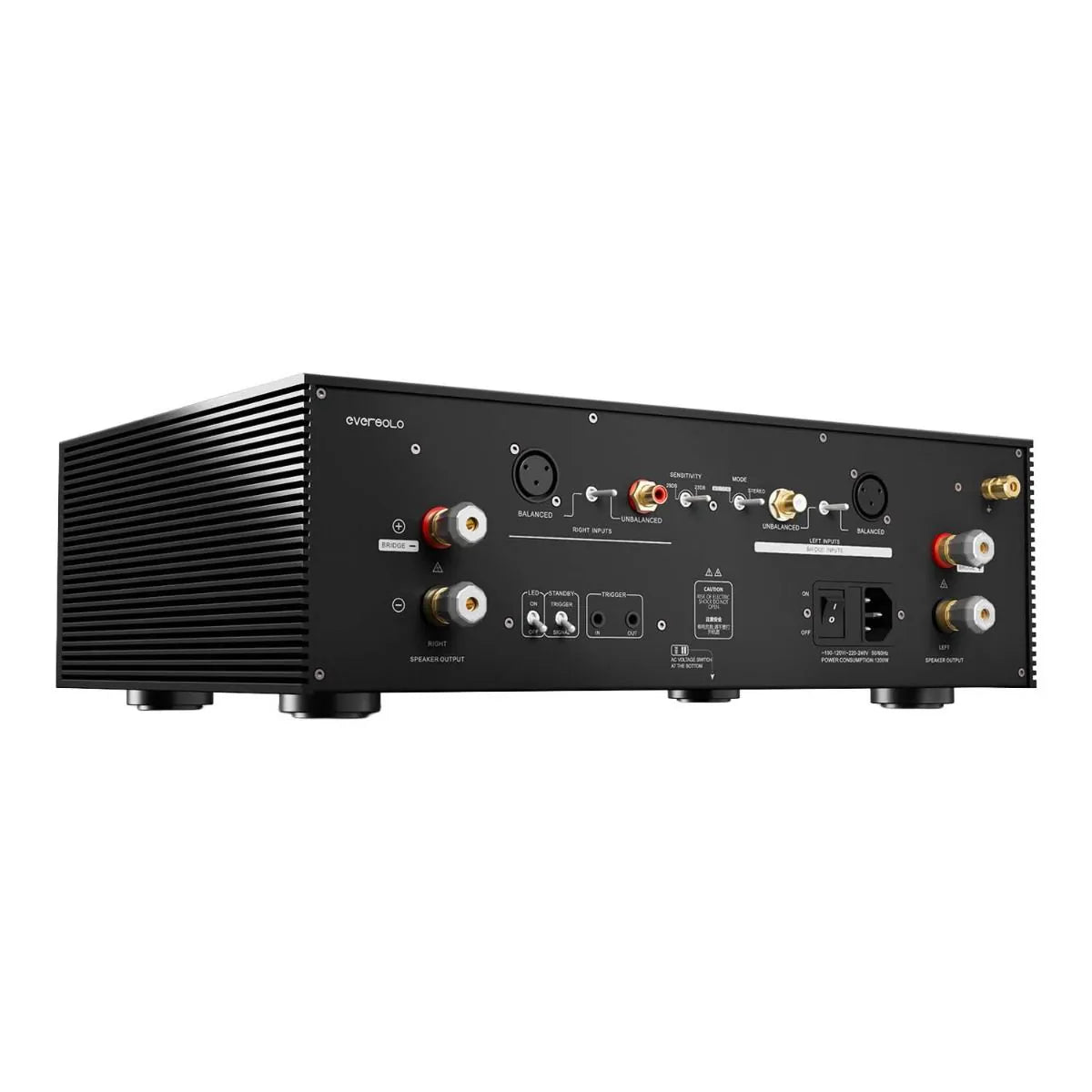

| Analogue Audio Inputs | 1x Stereo Balanced XLR Pair, 1x Stereo Single-Ended RCA Pair |
| Input Impedance | XLR: 10 kΩ | RCA: 10 kΩ |
| XLR Input Sensitivity (180W @ 8Ω / 1kHz) | 5.2 V (23 dB Gain) / 2.6 V (29 dB Gain) |
| RCA Input Sensitivity (180W @ 8Ω / 1kHz) | 2.65 V (23 dB Gain) / 1.3 V (29 dB Gain) |
| Metering | Dual Front-Panel Analogue VU Meters |
| Power Supply Architecture | 800 W Custom Toroidal Linear PSU with DC Blocking Circuit |
| Filter Capacitance | 24x Custom Audio-Grade Filter Capacitors |
| Control Interfaces | 12V Trigger Input & Output |
| Power Requirements & Max Draw | AC 100V–120V (60 Hz) / AC 220V–240V (50 Hz) | Max 1200 W |
| Chassis Construction | CNC-Machined Anodized & Sandblasted Aluminium |
| Dimensions (W x D x H) | 265 x 388 x 119 mm |
| Net Weight | 15.9 kg |
| Included Accessories | Power Cable, 12V Trigger Cable, User Manual |
