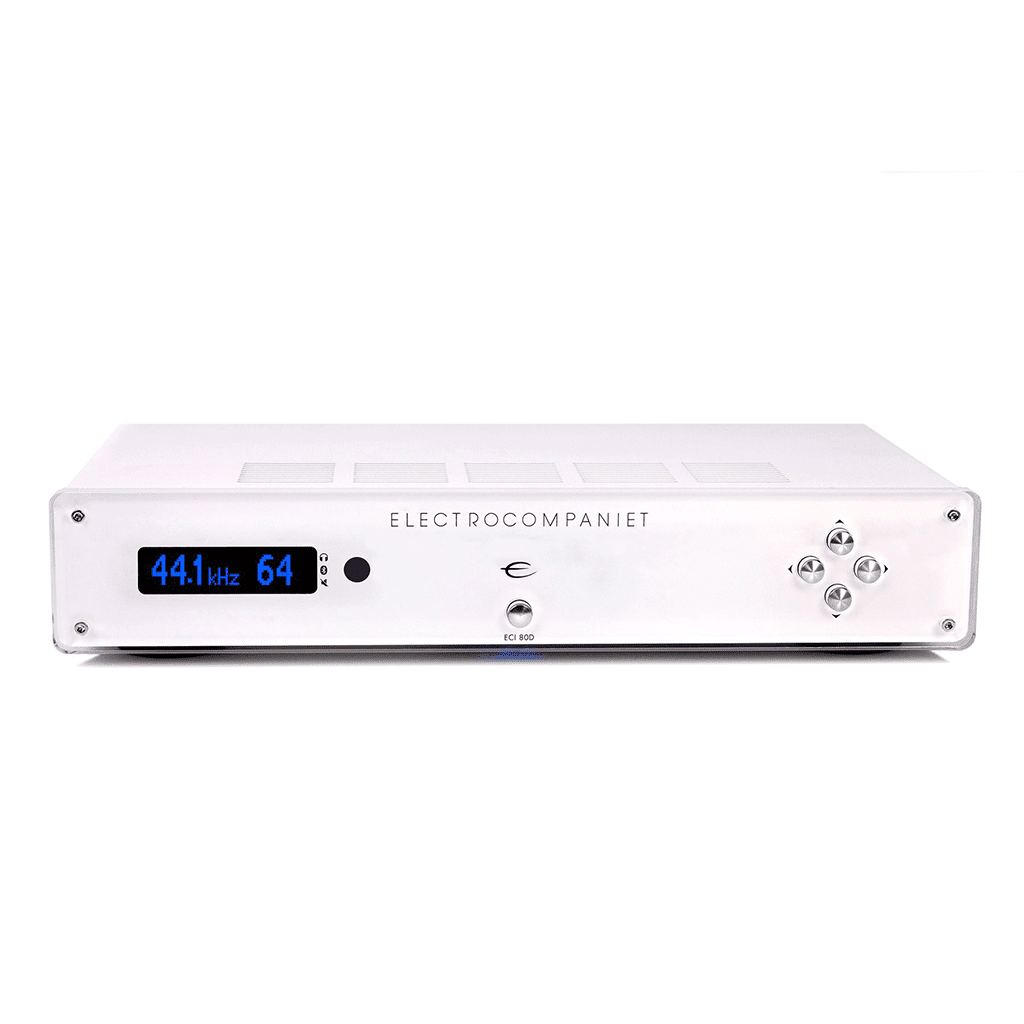

Electrocompaniet ECI 80D Integrated Amplifier
Frequently Bought Together
Product Overview & Specifications
The ECI 80D is Electrocompaniet's brand new, entry-level integrated amplifier. The new ECI 80D offers 2 x 80 Watts into 8 Ohms, using an in-house developed Class A/B Amplifier.
Electrocompaniet have equipped it with a built-in RIAA pre-amplifier for your LP player (MM cartridge support), 2-way Bluetooth HD for both streaming from your iOS, Android unit, Mac or PC, and also HD streaming to your High-end headphones. And of course a 5-input DAC (3 Toslink, 2 COAX)
Technical Specifications
| PREAMPLIFIER | |
| Input impedance | 75 kOhms |
| Noise floor | < -130dB |
| THD+N | < 0.002% |
| Frequency response (-3dB) |
1 150 kHz |
| Volume adjustment range | - 110dB to +15 dB |
| OUTPUT AMPLIFIER | |
| THD+N | < 0.005% |
| Output power (into 8 Ohms) |
2 x 80W |
| Output power (into 4 Ohms) |
2 x 150W |
| Damping factor (8 Ohms load) |
> 300 |
| Frequency response (-3dB) | 1 150kHz |
| SNR (input shorted, ref 1W into 8 ohms, A-weighted) |
102 dB |
| Gain | 25 dB |
| Protection | DC, overload, temperature |
| RIAA PHONO | |
| Pickup support | Moving Magnet |
| Gain | 40 dB @ 1kHz |
| Input impedance | 47 kOhms || 100pF |
| RIAA correction accuracy | +/-0.1dB, 25-20kHz |
| Subsonic filter | -3 dB @ 14 Hz |
| THD | < 0.001% |
| SNR | 83 dB (A-weighted) |
| Overload margin | 30dB @ 1kHz |
| HEADPHONE AMPLIFIER | |
| THD+N | < 0.001% |
| Load impedance single output in use |
> 16 Ohms |
| Load impedance both outputs in use |
> 32 Ohms |
| Max output power (into 16 Ohms load) |
0.4W |
| Max output voltage swing | +/-8V peak |
| Output impedance | 10 Ohms |
| Protection | DC, overload |
| DIGITAL & STREAMING | |
| Optical input | PCM: 44.1kHz/16bit up to 192kHz/24bit |
| Coaxial input | PCM: 44.1kHz/16bit up to 192kHz/24bit |
| Bluetooth support | BT5.0, A2DP, SBC, AAC, aptX-HD |
| CONNECTIVITY | |
| Digital inputs | 2 coaxial, 3 optical |
| Analog inputs | 2 RCA |
| Analog preamplifier output | 1 RCA |
| Service port | 1 USB |
| 12V trigger | 1 input, 1 output |
| Phono MM | 1 RCA |
| Headphone outputs | 3.5mm jack + 6.35mm jack |
| Speaker outputs | 1 pair binding posts |
| WEIGHT & DIMENSIONS | |
| Dimensions W x D x H |
470 x 262 x 90mm |
| Weight | 8 kg |
| Voltage & Power Consumption | |
| Mains input voltage | 100-240VAC, 50/60Hz, 3A |
| Idle (no load or signal) | 30 W |
| 30 W | < 0.5 W |
| OFF (main switch OFF) | 0 W |
Manufacturer Site
