DENAFRIPS ARCAS Streamer
DENAFRIPS ARCAS Streamer
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Denafrips Arcas is an audiophile digital network streamer engineered as an upgraded step up from the ARCE model. Built around a proprietary Denafrips streaming architecture running a custom audio-optimised operating system, the Arcas provides network streaming via Roon Bridge, HQPlayer NAA, AirPlay, and DLNA protocols, alongside local file playback from connected USB drives, SD cards, and network-attached storage (NAS). Signal timing is controlled by dual custom-selected Oven-Controlled Crystal Oscillators (OCXO) running at 45.1548 MHz and 49.152 MHz for precise reclocking and FIFO buffering.

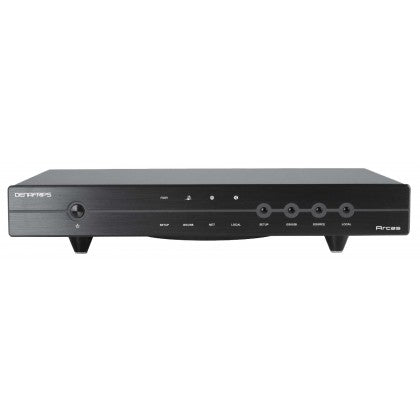

Housed in an anodised aluminium chassis available in Silver or Black, the unit incorporates an in-house hand-wound 80VA O-core shielded transformer built with Ultra-Pure Ohno Continuous Cast (UPOCC) copper wiring. A multi-stage low-noise LDO linear power supply delivers stable DC power to the digital modules. Output connectivity includes dual AES/EBU outputs, coaxial, optical, and twin I²S ports (HDMI LVDS and RJ45 LVDS) capable of streaming PCM up to 384 kHz and native DSD up to DSD256.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- In-House UPOCC Copper 80VA O-Core Transformer: Custom-wound 80VA shielded O-core transformer constructed with Ultra-Pure Ohno Continuous Cast copper wire for stable power delivery.
- Dual OCXO Master Clocks: Custom-selected Oven-Controlled Crystal Oscillators (45.1548 MHz and 49.152 MHz) provide low-jitter timing for FIFO buffering and signal reclocking.
- Proprietary Denafrips Streamer Engine: Tailored audio-grade operating system running on a custom streaming hardware platform optimised for network and local file playback.
- Dual I²S & Dual AES/EBU Digital Outputs: Comprehensive digital output array including HDMI LVDS I²S, RJ45 LVDS I²S, dual AES/EBU, coaxial, and TOSLink optical connections.
- Wide Protocol Support: Supports Roon Bridge (Roon Ready pending), HQPlayer NAA, AirPlay, and DLNA streaming, alongside local playback from USB, SD card, and NAS shares.
- Anodised Anti-Resonant Aluminium Enclosure: Heavy-gauge aluminium casing designed to block external electromagnetic interference, offered in Silver and Black finishes.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | High-End Digital Network Streamer |
| Brand / Model | Denafrips — Arcas |
| Streaming Architecture | Proprietary Denafrips Hardware Module & Audio-Optimised OS |
| Master Clocking System | Dual OCXO Crystal Oscillators (45.1548 MHz / 49.152 MHz) with FIFO Reclocking |
| Supported Streaming Protocols | Roon Bridge (Roon Ready Pending), HQPlayer NAA, AirPlay (16-bit/44.1kHz), DLNA (16-bit/44.1kHz) |
| Local Media Playback Sources | USB External Hard Drives/Flash Drives, SD Memory Cards, Network Attached Storage (NAS) |
| PCM Resolution Support | 24-bit / 44.1 kHz to 192 kHz (S/PDIF & AES/EBU) | Up to 384 kHz (I²S Outputs) |
| DSD Resolution Support | DSD64 / 2.8224 MHz (DoP on All Outputs) | Up to Native DSD256 (I²S Outputs) |

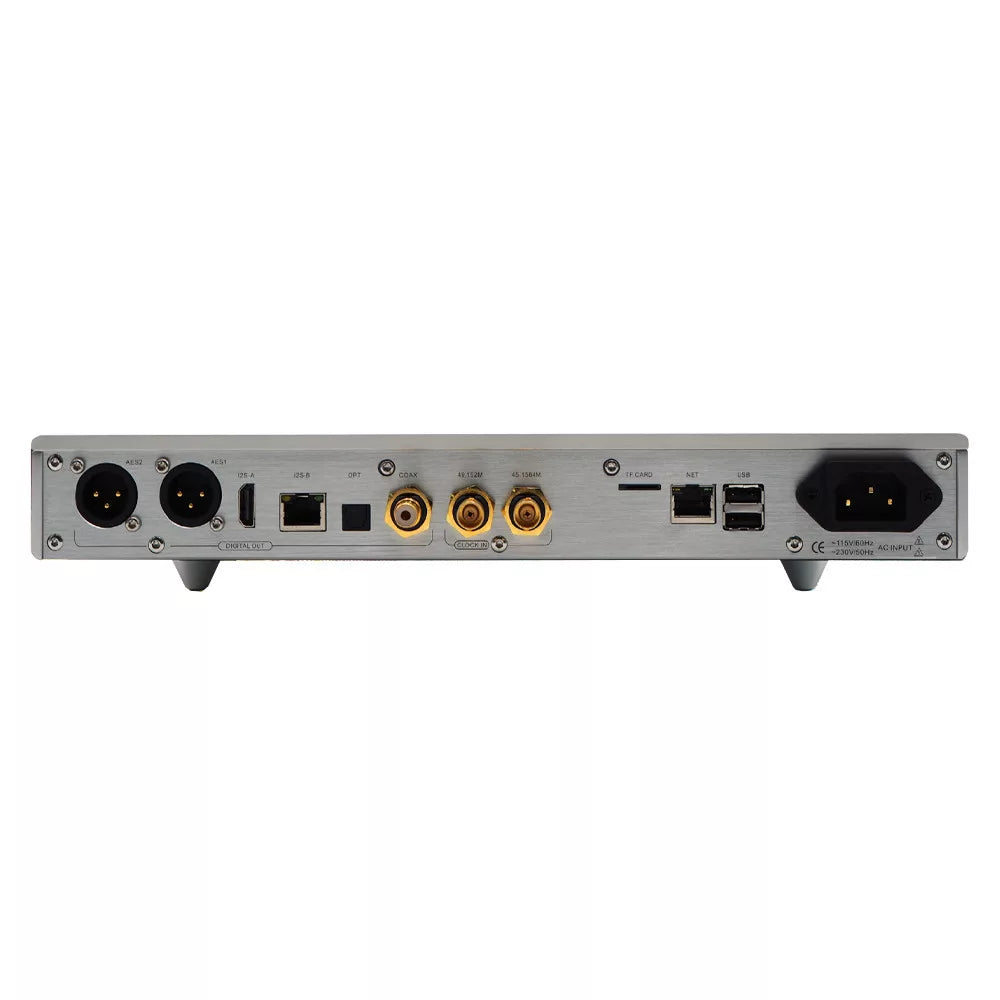

| Digital Audio Outputs | 1x Coaxial (RCA), 2x AES/EBU (XLR), 1x TOSLink Optical, 1x I²S LVDS (HDMI), 1x I²S LVDS (RJ45) |
| Network Connection | 1x Gigabit Ethernet (RJ45) |
| Power Supply Core | 80VA In-House Shielded O-Core Transformer with UPOCC Copper & Multi-Stage LDO Regulators |
| AC Mains Requirement & Protection | 100V–240V AC, 50/60 Hz (Auto-Selecting Worldwide Voltage) | Advanced Power Management (No Fuse) |
| Power Consumption | ≤ 20 W |
| Dimensions (W x D x H) | 330 x 230 x 65 mm (Feet Add +18mm Height) |
| Net Weight | 4.5 kg |
| Available Finishes | Black / Silver |
