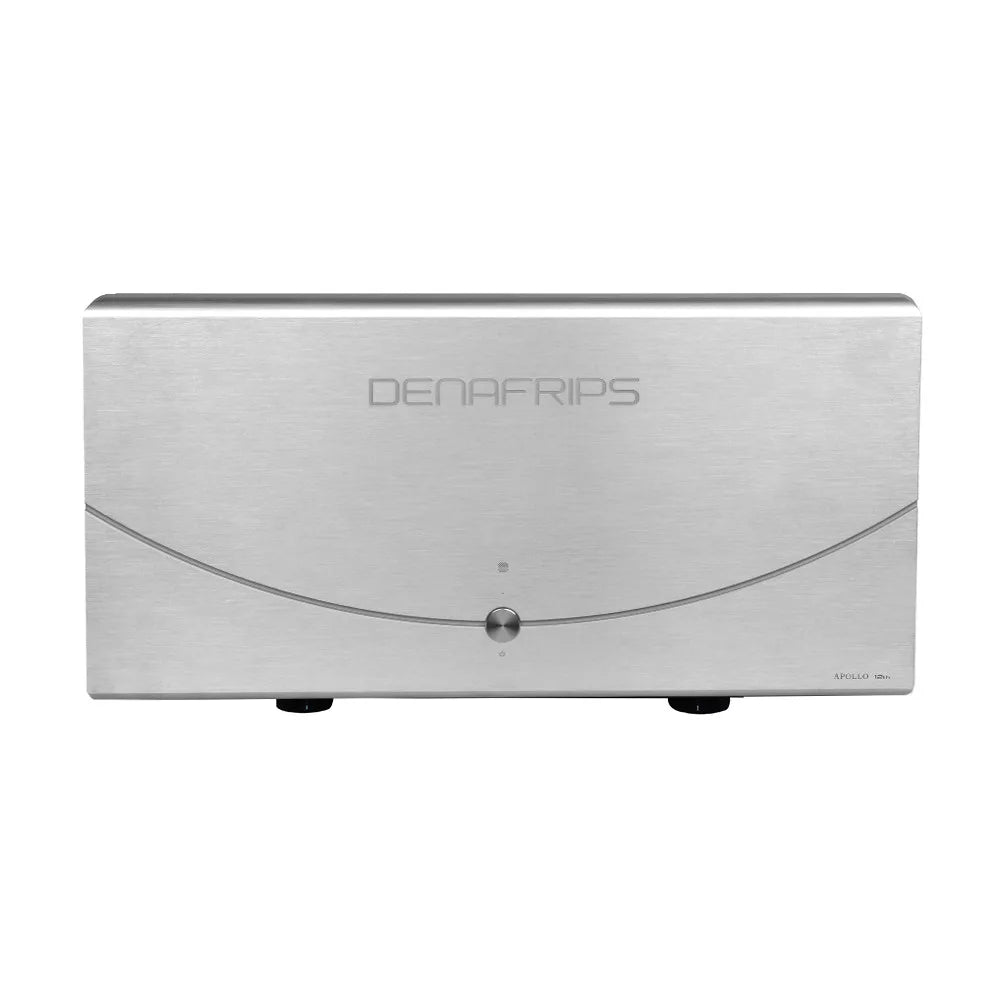

DENAFRIPS APOLLO 12TH Power Amplifier
DENAFRIPS APOLLO 12TH Power Amplifier
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The Denafrips Apollo is a flagship fully discrete, Class AB stereo power amplifier engineered to deliver high-current power drive to demanding loudspeaker loads. Building upon the topology of the Hyperion power amplifier, the Apollo incorporates a custom-wound 2,000VA copper-shielded toroidal transformer backed by massive reservoir capacitor banks and high-speed Schottky diodes. Operating in a true balanced configuration across both channels, the power section utilises 16 matched pairs of bipolar junction transistors (BJT) per channel to generate a conservative 250 Watts RMS into 8 Ohms (500 Watts RMS into 4 Ohms).
Housed in a 55 kg precision-machined aluminium chassis, the Apollo features modular power amplifier circuit blocks designed to handle complex loudspeaker impedance dips with ease. Its balanced XLR inputs accept source signals directly, maintaining low noise and wide dynamic range. Due to its true balanced differential output topology, the speaker terminals cannot be connected to high-level subwoofer inputs, ensuring dedicated, uncompromised drive directly to passive stereo loudspeakers.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- True Balanced Discrete Class AB Topology: Completely symmetrical, fully discrete differential amplification circuitry that processes both positive and negative signal phases independently.
- Custom 2,000VA Shielded Toroidal Transformer: Heavy-duty audio-grade toroidal transformer equipped with copper shielding to eliminate stray electromagnetic fields and mechanical noise.
- 32 Output Transistors Per Stereo Pair: Incorporates 16 matched pairs of BJT power transistors per channel to deliver stability and high current headroom into low-impedance speaker loads.
- Modular Amplifier Block Design: Internal modular construction physically separates power supply regulation, driver stages, and output channels to minimise crosstalk.
- High-Speed Schottky Diode & Reservoir Network: Fast-switching Schottky diodes paired with low-ESR capacitor banks deliver rapid current replenishment during high dynamic transients.
- Massive Anti-Resonant Aluminium Enclosure: Heavyweight 55 kg full-size enclosure provides effective passive thermal dissipation and isolation from structural vibrations.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Flagship True Balanced Class AB Stereo Power Amplifier |
| Brand / Model | Denafrips — Apollo |
| Amplifier Topology | Fully Discrete, True Balanced Class AB Design |
| Power Output (RMS, Both Channels Driven) | 250 Watts RMS per Channel @ 8 Ω | 500 Watts RMS per Channel @ 4 Ω |
| Output Transistor Configuration | 16 Matched Pairs of BJT Transistors per Channel (32 Total) |
| Power Supply Core | Custom-Wound 2,000VA Copper-Shielded Toroidal Power Transformer |
| Analogue Audio Input | 1x Stereo Balanced XLR Input Pair (22 kΩ Input Impedance) |
| Input Sensitivity & Voltage Gain | 2.0V RMS Input Sensitivity | 26 dB Voltage Gain |
| Speaker Outputs | Heavy-Duty 4mm Speaker Binding Posts (True Balanced Outputs — No High-Level Subwoofer Grounding) |
| Frequency Response | 10 Hz – 50,000 Hz (-2.2 dB) |
| Total Harmonic Distortion (THD) | 0.001% (0.00% Nominal) |
| Signal-to-Noise Ratio (SNR) | 118 dB |
| Dynamic Range / Stereo Crosstalk | > 121 dB | Stereo Crosstalk: -110 dB |
| AC Power Requirement | 100V–240V AC, 50/60 Hz (Worldwide Voltage Support) |
| Power Consumption | 0.5 W (Standby) | 250 W (Idle) | 1,180 W (Maximum Operational Output) |
| Dimensions (W x D x H) | 435 x 470 x 240 mm |
| Net Weight | 55.0 kg |
| Available Finishes | Black / Silver |
