DENAFRIPS ARC-E Streamer
DENAFRIPS ARC-E Streamer
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The DENAFRIPS ARCE (ARC-E) is a dedicated audiophile network streamer engineered to commemorate DENAFRIPS' 12 years of digital audio development. Built on a proprietary in-house streamer module powered by a Quad-Core ARM Cortex processor and running a custom audio-optimized OS, the ARCE prioritizes low-jitter signal delivery and pure sound reproduction.
Encased in a compact anodized aluminum chassis, the streamer features an oversized, custom-wound 60VA UPOCC copper O-Core shielded transformer powering a multi-stage linear power supply. The digital processing architecture utilizes an FPGA core with opto-coupler galvanic isolation, TCXO temperature-compensated crystal oscillators, and a custom non-switched UPOCC silver-plated copper AC mains socket to eliminate electrical interference. Digital outputs include I²S over HDMI, AES/EBU, Coaxial, and Optical.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Proprietary In-House Streaming Engine: Powered by a Quad-Core ARM Cortex processor, dual TCXO master clocks (45.1548 MHz / 49.152 MHz), and a custom audio-focused OS.
- FPGA Processing & Galvanic Isolation: FPGA-driven digital processing safeguarded by opto-couplers to prevent noise contamination across digital outputs.
- Oversized Linear Power Supply: Hand-wound 60VA UPOCC copper O-Core shielded transformer with low-noise LDO regulators for stable power delivery.
- Custom UPOCC AC Power Interface: Features a non-switched AC mains socket built in-house with silver-plated UPOCC copper to minimize contact resistance.
- I²S LVDS & Multi-Format Digital Outputs: Output options including I²S over HDMI (supporting up to PCM 384 kHz / DSD256), AES/EBU, Coaxial, and TOSLink.
- Network & Local Storage Support: Supports Roon Bridge, HQPlayer NAA, AirPlay, DLNA, along with local playback via USB storage, SD card, and NAS.
SPECIFICATIONS
| Product Category | Dedicated Audiophile Digital Network Streamer / Transport |
| Processing Core | Proprietary DENAFRIPS Module (Quad-Core ARM Cortex, FPGA Processing) |
| Master Clocks | Dual TCXO Temperature-Compensated Oscillators (45.1548 MHz & 49.152 MHz) |
| Power Supply | Linear PSU with Custom 60VA UPOCC Copper O-Core Shielded Transformer & Low-Noise LDOs |

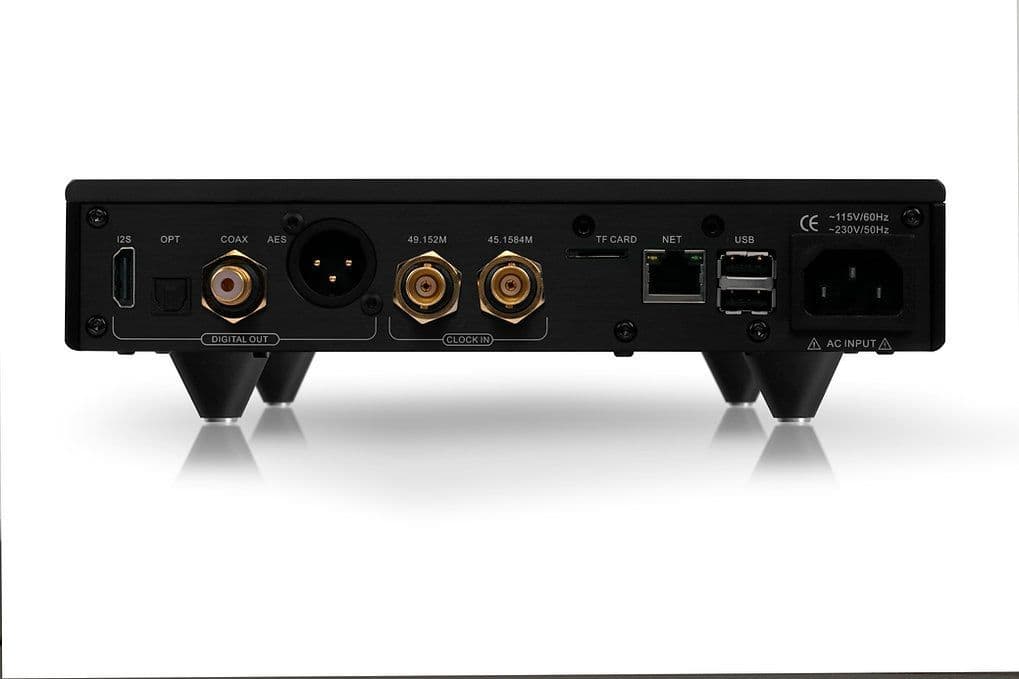

| Digital Audio Outputs | 1 x I²S LVDS over HDMI 1 x AES/EBU (XLR, 110 Ω) 1 x Coaxial (RCA, 75 Ω) 1 x Optical (TOSLink) |
| PCM Output Resolution | I²S Output: Up to 24-bit / 384 kHz Coax / AES / TOSLink Outputs: Up to 24-bit / 192 kHz |
| DSD Output Support | I²S Output: Up to DSD256 Native Coax / AES / TOSLink Outputs: DSD64 (DoP) |
| Supported Protocols & Services | Roon Bridge (Roon Ready Pending), HQPlayer NAA, AirPlay (16/44.1 kHz), DLNA (16/44.1 kHz) |
| Local Media Storage Playback | USB Storage Drives, SD Card Slot, Network Attached Storage (NAS) Shared Folders |
| Network Interface | 1 x Ethernet RJ45 Port |
| AC Power Requirements & Consumption | 100–240V AC, 50/60 Hz (Manual Selector) | Max Consumption ≤ 20 W | Fuse: 2x T2A 250V (5x20mm) |
| Dimensions & Weight | Unit: 215 x 230 x 45 mm (+18 mm feet) | Net Weight: 3.5 kg |
| Chassis Construction & Finishes | Anodized Aluminum Chassis (Available in Silver or Black) |
