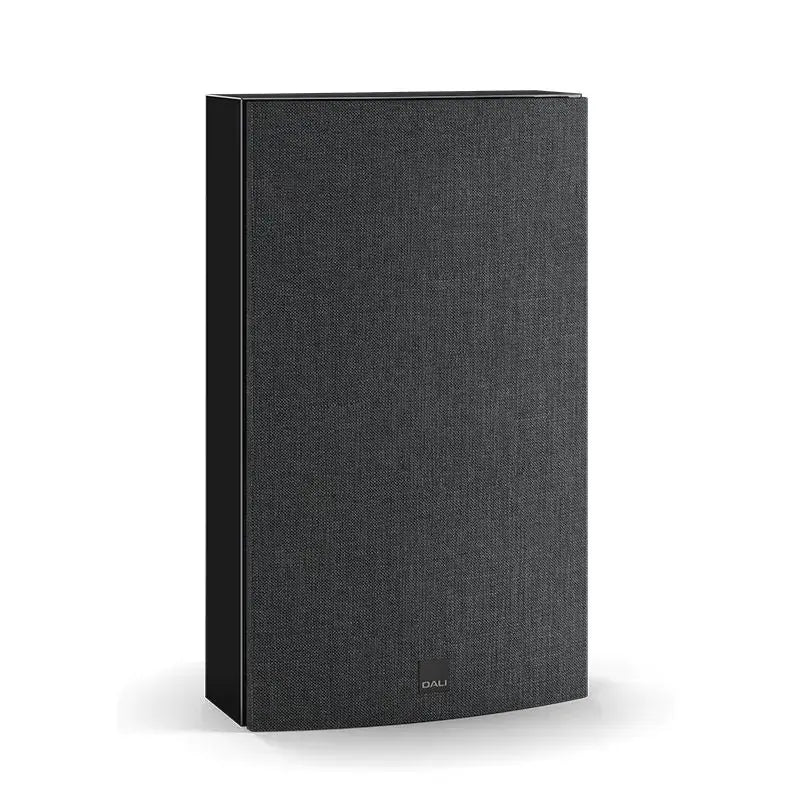

DALI Rubikore On-Wall Loudspeakers (Single)
Frequently Bought Together
Product Overview & Specifications

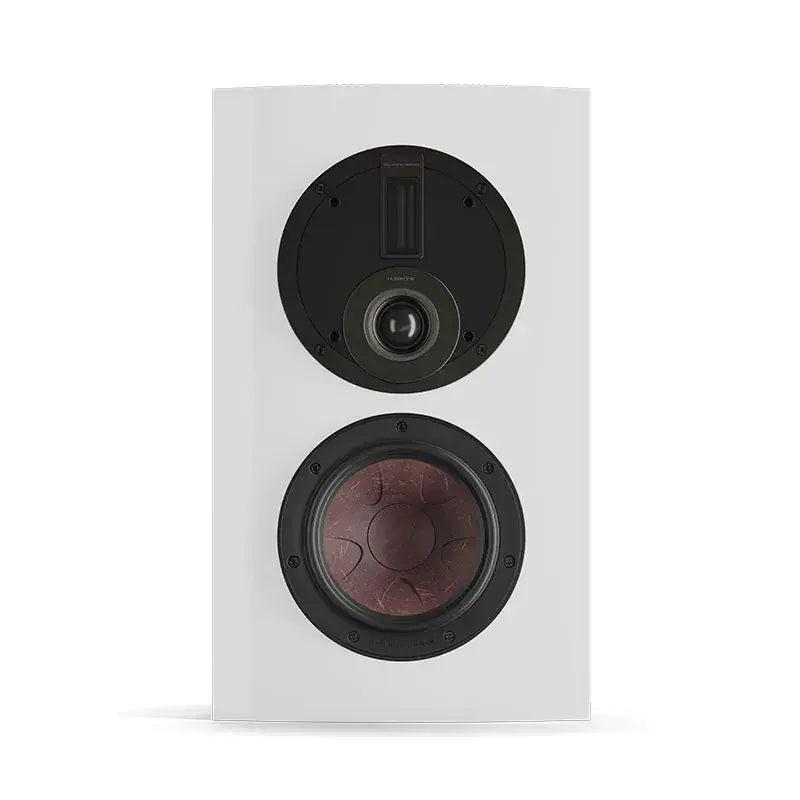

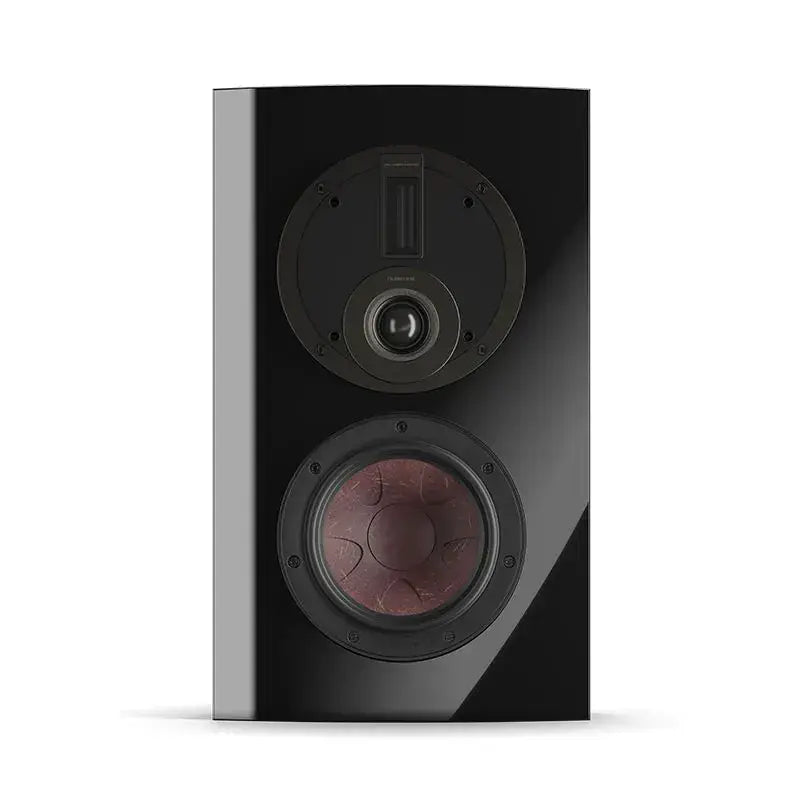

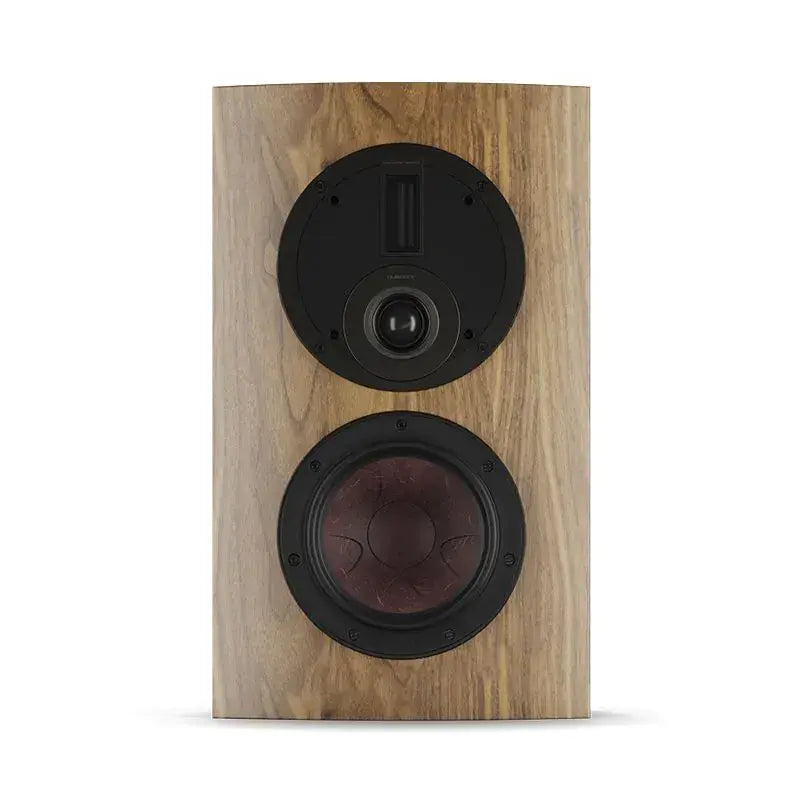

The DALI RUBIKORE ON-WALL is an ultra-slim, multipurpose wall-mounted loudspeaker engineered to deliver wide-bandwidth stereo and surround sound performance without taking up floor space. Utilizing technology derived from DALI's flagship KORE loudspeaker, the ON-WALL pairs a 6½-inch wood fibre woofer with a rotatable DALI Hybrid Tweeter module, allowing the speaker to be installed in either vertical or horizontal orientations for main, centre, or surround channel roles.
Hand-crafted and tested in Denmark, the cabinet incorporates a Clarity Cone woofer driven by a Soft Magnetic Compound (SMC) magnet system alongside SMC-KORE inductors in the crossover network to suppress distortion. High frequencies are handled by a 29mm ferrofluid-free soft dome tweeter and a 17 x 45mm planar magnetostatic ribbon tweeter. Low frequencies are vented via an engineered down-firing reflex port system that utilizes the rear wall surface to extend bass response down to 59 Hz (-3dB).
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Rotatable DALI Hybrid Tweeter Module: Features a 29mm low-loss soft fabric dome tweeter (without ferrofluid) combined with a 17 x 45mm planar magnetostatic ribbon, capable of being rotated 90 degrees for optimal dispersion in vertical or horizontal wall placements.
- KORE-Derived SMC Driver Architecture: Utilizes Soft Magnetic Compound (SMC) pole pieces and SMC-KORE inductors to minimize magnetic hysteresis and signal distortion.
- Clarity Cone Paper & Wood Fibre Woofer: 6½-inch woofer featuring an embossed Clarity Cone structure for controlled diaphragm breakup, smooth midrange articulation, and low-frequency clarity.
- Wall-Coupled Bass Reflex Porting: Down-firing reflex port system employs the mounting wall boundary to extend bass bandwidth and output without increasing cabinet depth.
- Versatile On-Wall System Integration: Slim profile designed to serve as left, centre, right (LCR) or surround channels in discrete multi-channel home cinema setups and space-constrained stereo installations.

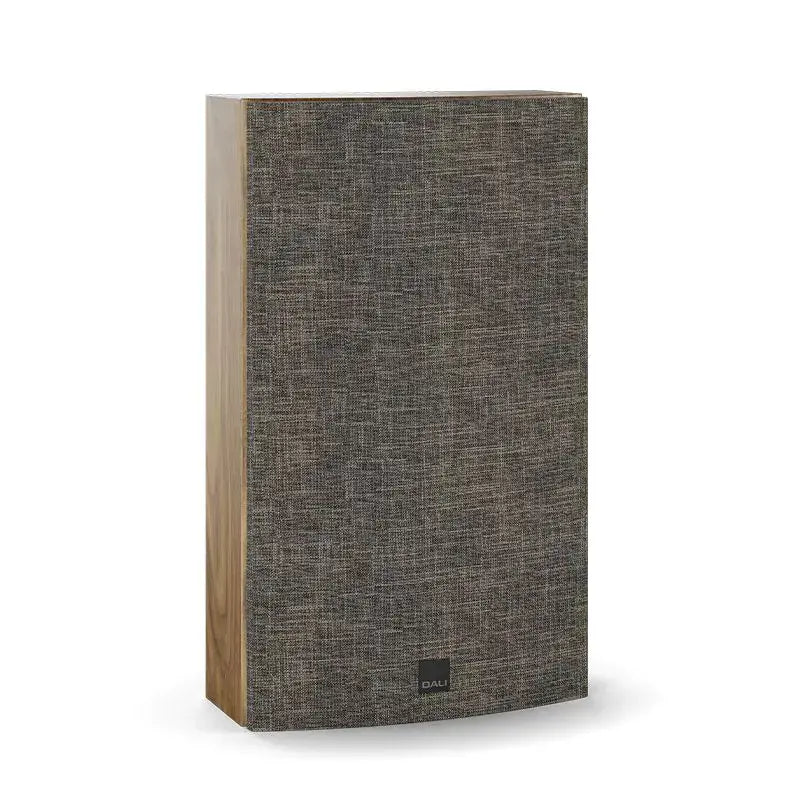

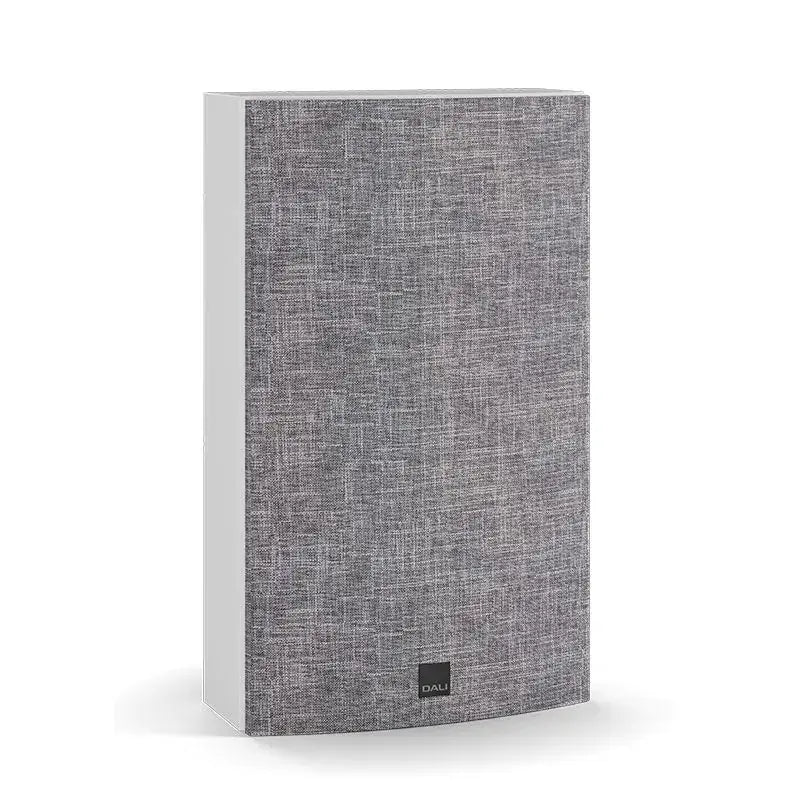

- Danish Hand-Crafted Cabinetry: Individually crafted in Denmark with an ultra-slim, low-resonance enclosure available in High Gloss Black, High Gloss White, and Natural Walnut finishes.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Multipurpose Low-Profile On-Wall Loudspeaker |
| Brand / Series | DALI Loudspeakers — RUBIKORE Series |
| Model Designation | RUBIKORE ON-WALL |
| Enclosure Type | Bass Reflex (Wall-Coupled Down-Firing Port System) |
| Crossover Principle | 2 + ½-Way Configuration (SMC-KORE Inductor Networks) |
| Crossover Frequencies | 2,900 Hz / 14,000 Hz |
| High-Frequency Module | Rotatable DALI Hybrid Tweeter: 1x 29 mm Low-Loss Soft Fabric Dome + 1x 17 x 45 mm Planar Magnetostatic Ribbon |
| Low / Midrange Driver | 1x 6½" (165 mm) Clarity Cone Paper & Wood Fibre Woofer with SMC Magnet Motor |
| Frequency Range (±3 dB) | 59 Hz – 34,000 Hz |
| Sensitivity (2.83V @ 1m) | 88.5 dB |
| Nominal Impedance | 4 Ω |
| Maximum Sound Pressure Level (SPL) | 108 dB |
| Recommended Amplifier Power | 20 W – 150 W RMS |
| Connection Inputs | Single-Wire Heavy-Duty Binding Posts |
| Recommended Placement | On-Wall (Vertical L/R or Horizontal Centre/Surround Mount) |
| Dimensions (H x W x D) | 465 x 278 x 142 mm (18.3" x 10.9" x 5.6") |
| Net Weight | 8.0 kg per Speaker (Includes Front Grille) |
| Available Finishes | High Gloss Black / High Gloss White / Natural Walnut |
| Included Accessories | User Manual, Front Grille, Wall Mounting Brackets, Rubber Feet |
