Product Overview & Specifications

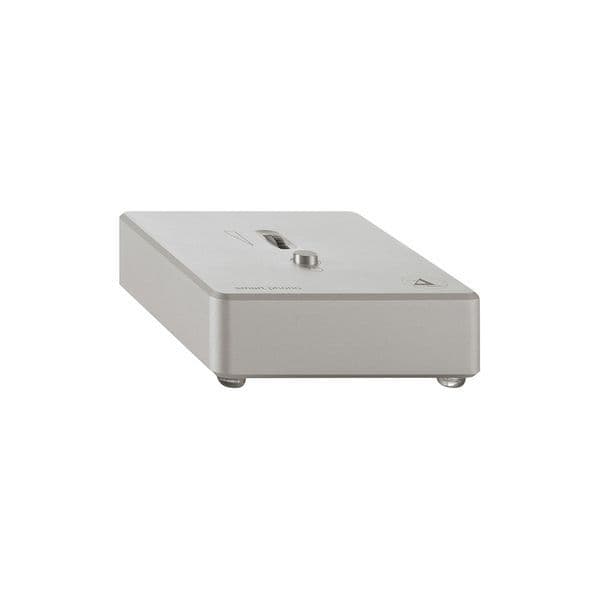

A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point. For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.
The Clearaudio Smart Phono V2 Phono Stages miniature size means that signal path lengths are kept extremely short which leads to a pure and noise-free musical reproduction, much greater than that of typical products in this price range. The external power supply keeps the delicate phono signal away from mains power, minimising hum and noise. High quality gold plated input and output RCA terminals on the Clearaudio Smart Phono V2 Phono Stage give a superb contact which will not degrade over time. Switching is provided for both MM (moving magnet) and MC (moving coil) cartridges, making the Clearaudio Smart Phono V2 Phono Stage compatible with virtually all phono cartridges.
Specifications
| MODE: | MM / MC switchable by jumpers (at bottom) Subsonic filter switchable by jumpers (at bottom) |
| AMPLIFICATION: | 34dB (MM mode) 54dB (MC mode) |
| INPUT LOAD: | 50 Ω, 100 Ω, 500 Ω, 1 kΩ, 5 kΩ / 150 pF, 250 pF, 400 pF (MC mode) 47 kΩ / 150 pF, 250 pF, 400 pF (MM mode) |
| RIAA ACCURACY: | ± 0.3dB @ 10Hz - 100kHz |
| THD: | < 0.004% MC ("A" @ 1kHz / -1dB @ MAX) |
| SIGNAL TO NOISE RATIO: | 85dB (A) (MM mode) 72dB (A) (MC mode) |
| HEADROOM: | 18dB / MC (Gain Control on MAX) |
| MAX. OUTPUT VOLTAGE: | 10V eff. (1kHz) |
| RIAA: | delay time: 75μs / 318μs / 3180μs |
| CHANNEL SEPERATION: | > 90dB @ 1kHz |
| OUTPUT IMPEDANCE: | 75Ω |
| INPUTS: | unbalanced (RCA) |
| OUTPUTS: | unbalanced (RCA) optional headphone output (Jack: 3.5mm) |
| POWER CONSUMPTION: | Max. consumption: 2.7 watts Consumption in operation: 2.7 watts Off mode: 0.0 watts |
| POWER SUPPLY: | ± 18V DC / 300mA (external power supply) |
| TOTAL WEIGHT: | Approx. 620g (Preamp and power supply) |
| DIMENSIONS (W/D/H): | Approx. 3.74 × 4.92 × 1.34 inches |
| DIMENSIONS (W/D/H): | Approx. 95 × 125 × 34mm |
