Product Overview & Specifications
The Nano Phonostage isnt ruffled by anything. External interferences are no longer an issue with this fine piece of engineering. Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges. The Nano Phono Headphone additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
The printed circuit board on the Clearaudio Nano Headphone Phonostage is embedded within a solid CNC-machined aluminium block, which forms a resonance-free chassis. The latest sophisticated surface-mount technology is used in conjunction with precision electronic components, such as Burr-Brown (Texas Instruments) integrated circuits, and extremely short signal paths leading the Clearaudio Nano Headphone Phonostage to produce pure, hum and noise-free music reproduction. The fully dual-mono design features separate left and right switches for input loading, gain control and choice of MM or MC sensitivity, allowing the Clearaudio Nano Headphone Phonostage to extract the best results from virtually any cartridge.
FEATURES
- Low signal to noise ratio of up to 84 decibels
- The input imedance is set using plug-in links, so there is no loss of quality when you difference MM/MC cartridges
- Surface-mount technology is used leading to produce pure, hum and noise-free music reproduction
Specifications
| MODE: | MM / MC switchable by jumpers (at bottom) Subsonic filter switchable by jumpers (at bottom) |
| AMPLIFICATION: | 34dB (MM mode) 54dB (MC mode) |
| INPUT LOAD: | 47 kΩ/ 220pF / MM mode User MC mode |
| RIAA ACCURACY: | ± 0.4dB @ 20Hz - 50kHz |
| THD: | < 0.04% |
| SIGNAL TO NOISE RATIO: | 81dB (A) (MM mode) 70dB (A) (MC mode) |
| HEADROOM: | 18dB / MC |
| MAX. OUTPUT VOLTAGE: | 10V eff (1 kHz) |
| RIAA: | Nach RIAA (Zeitkonst.: 75µs / 318µs / 3180µs) |
| CHANNEL SEPERATION: | > 80dB @ 1kHz |
| OUTPUT IMPEDANCE: | 75Ω |
| INPUTS: | unbalanced (RCA) |
| OUTPUTS: | unbalanced (RCA) optional headphone output (Jack: 3.5mm) |
| POWER CONSUMPTION: | Max. consumption: 2.3 Watt In operation: 2.3 Watt Standby mode: < 0.3 Watt Off mode: 0.0 Watt |
| POWER SUPPLY: | ±18V DC / 300mA (external power supply) |
| TOTAL WEIGHT: | Approx. 500g (Preamp and power supply) |
| DIMENSIONS (W/D/H): | Approx. 3.35 × 4.17 × 0.98 inches |
| DIMENSIONS (W/D/H): | Approx. 85 × 106 × 25mm |
Customer Reviews
Don't let the hassle of selling privately hold you back. We accept almost any trade-in (of lower value) to make your upgrade affordable. We even handle the logistics with our seamless courier service.
How it works:
The Offer: If you are happy with our quote, simply contact us to complete your purchase.
The Collection & Delivery: We will contact you to arrange the collection of your old equipment and delivery of your new equipment.
Ready to upgrade? Please complete the details below for a fast, accurate valuation. We will base your part exchange against the item you are currently viewing on the site.

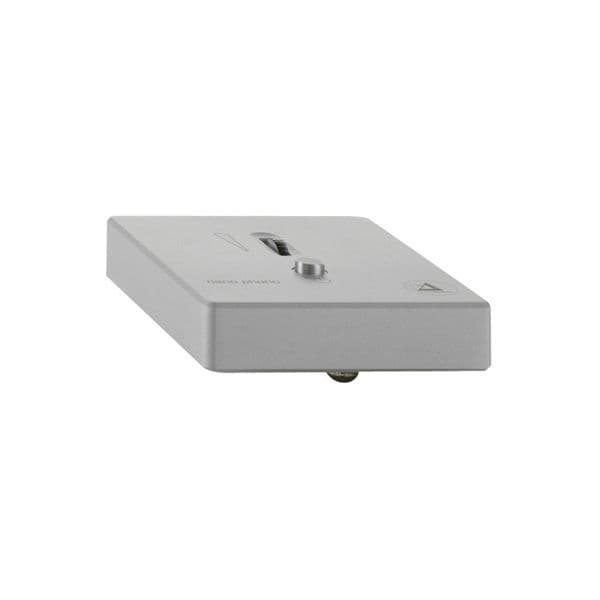

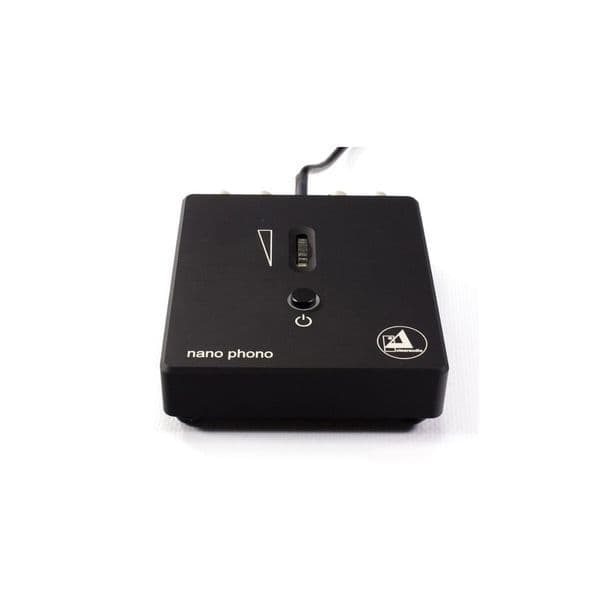

Clearaudio Nano Phono V2
