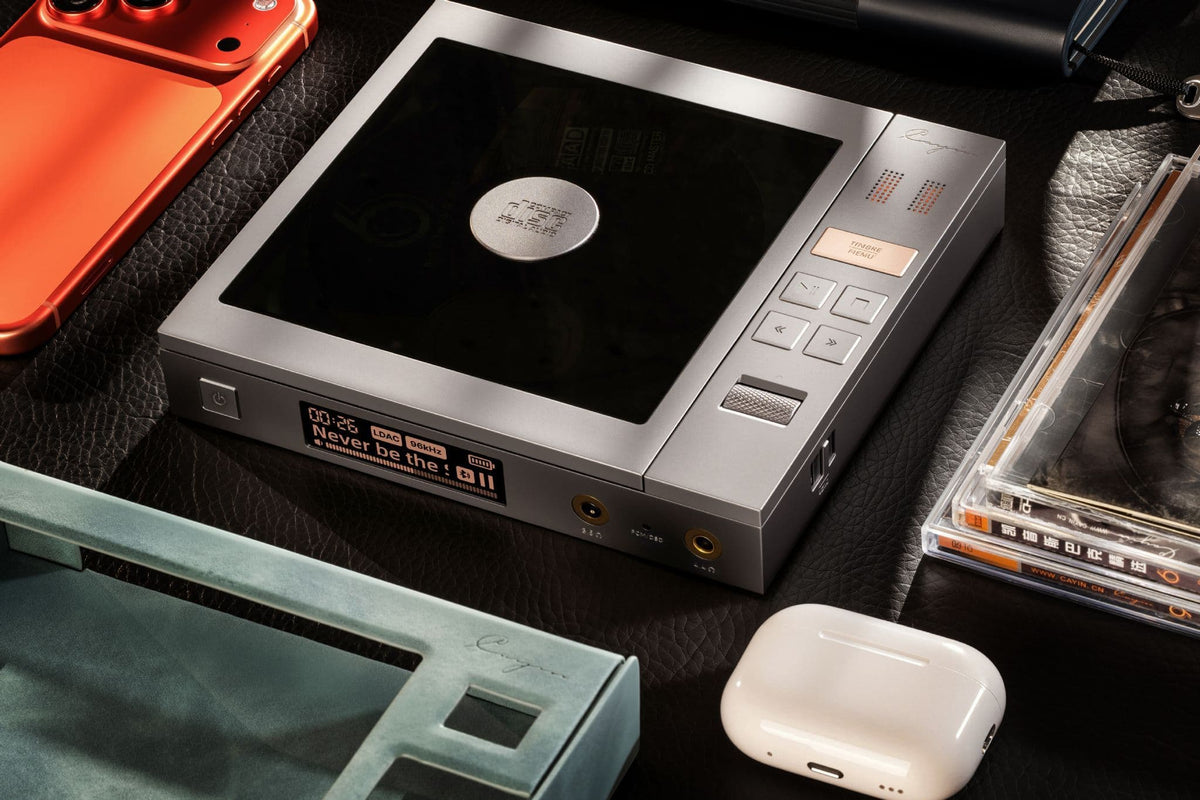

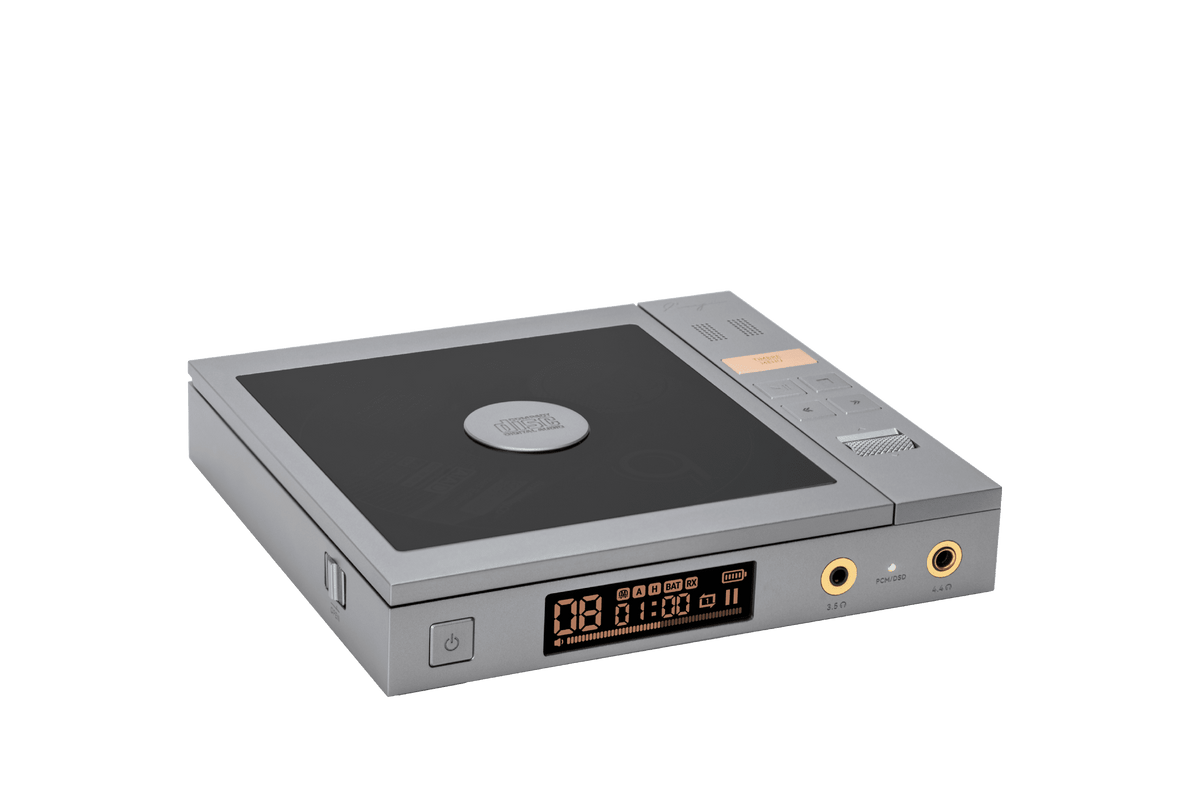

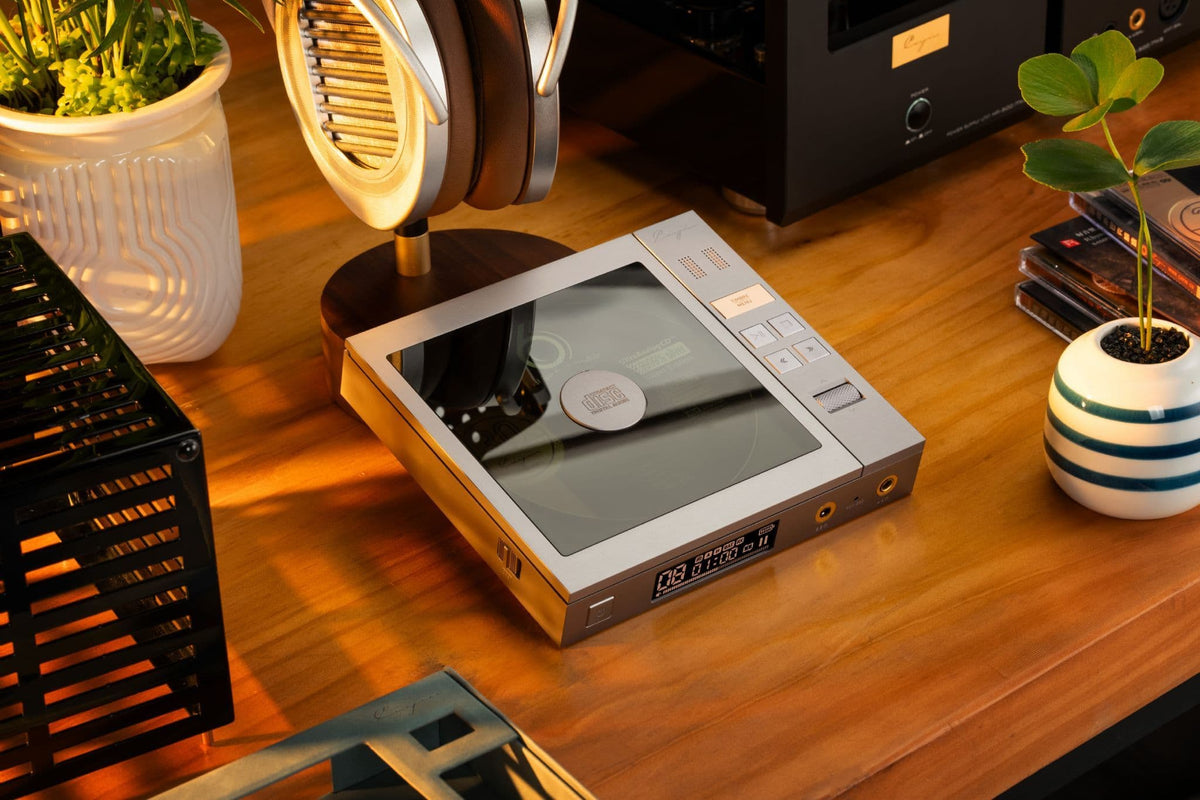

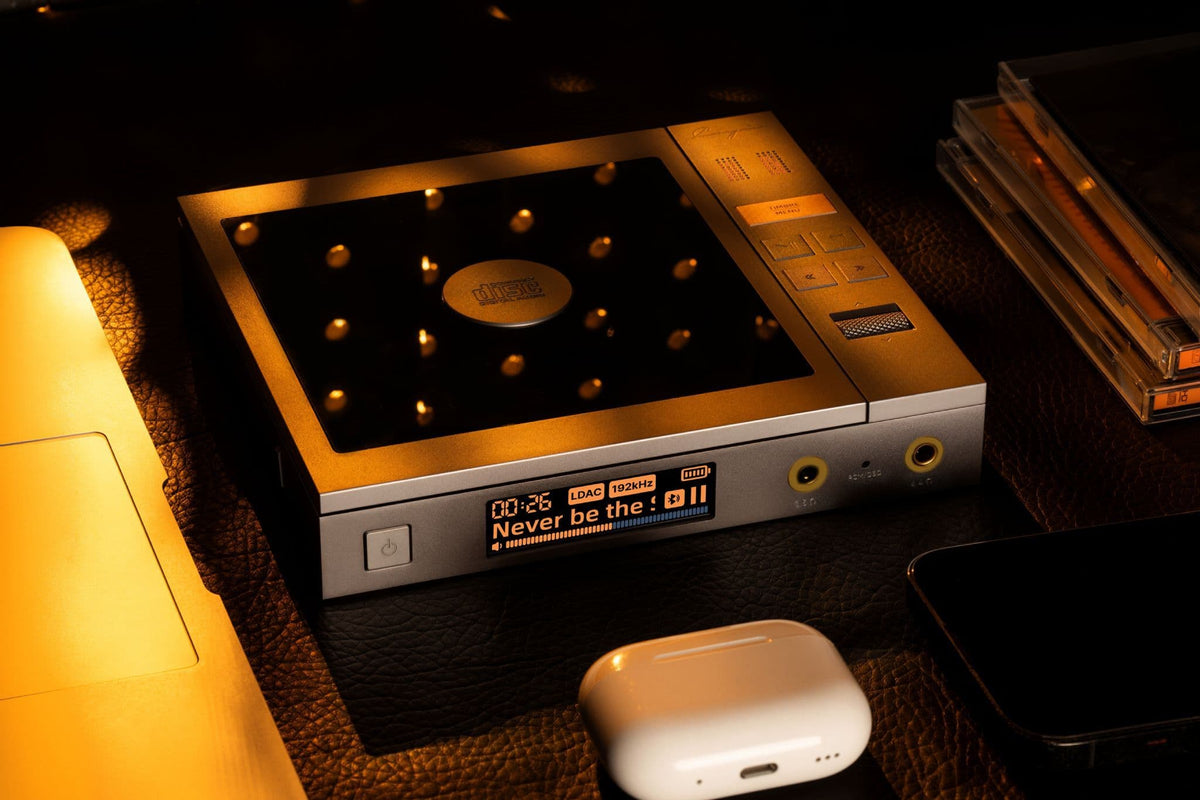

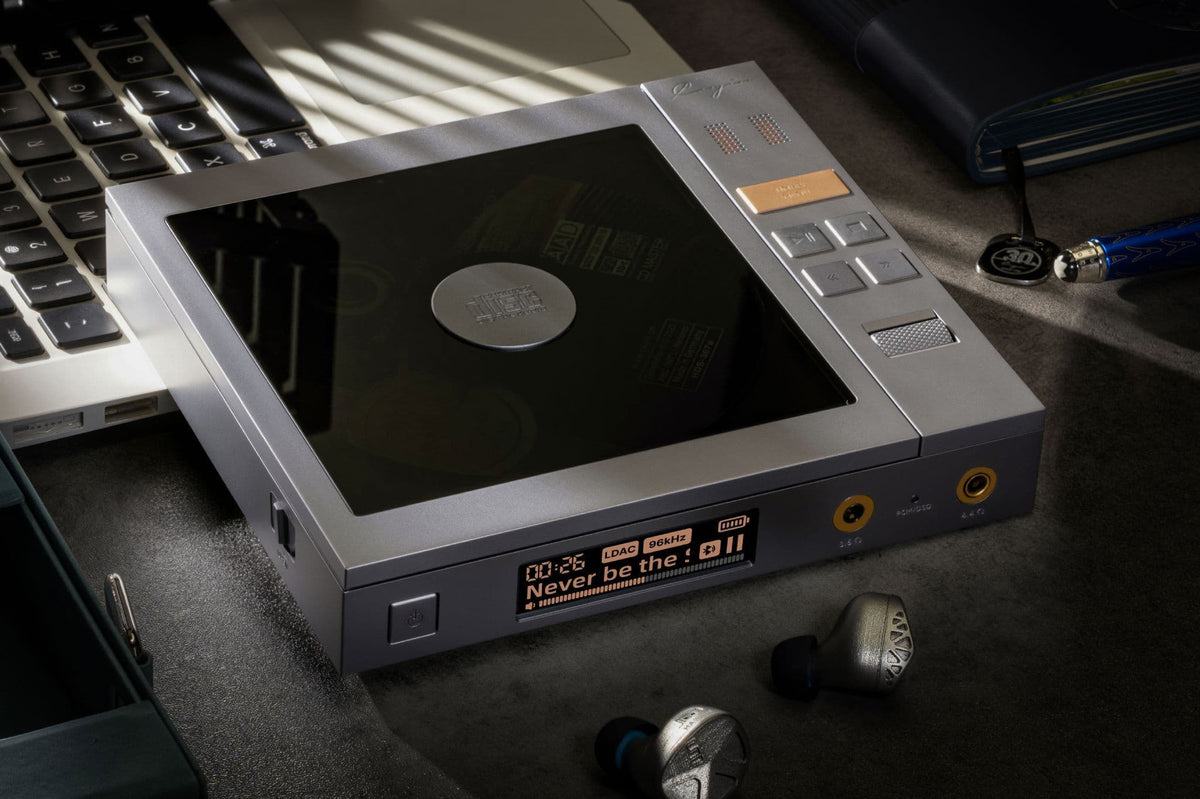

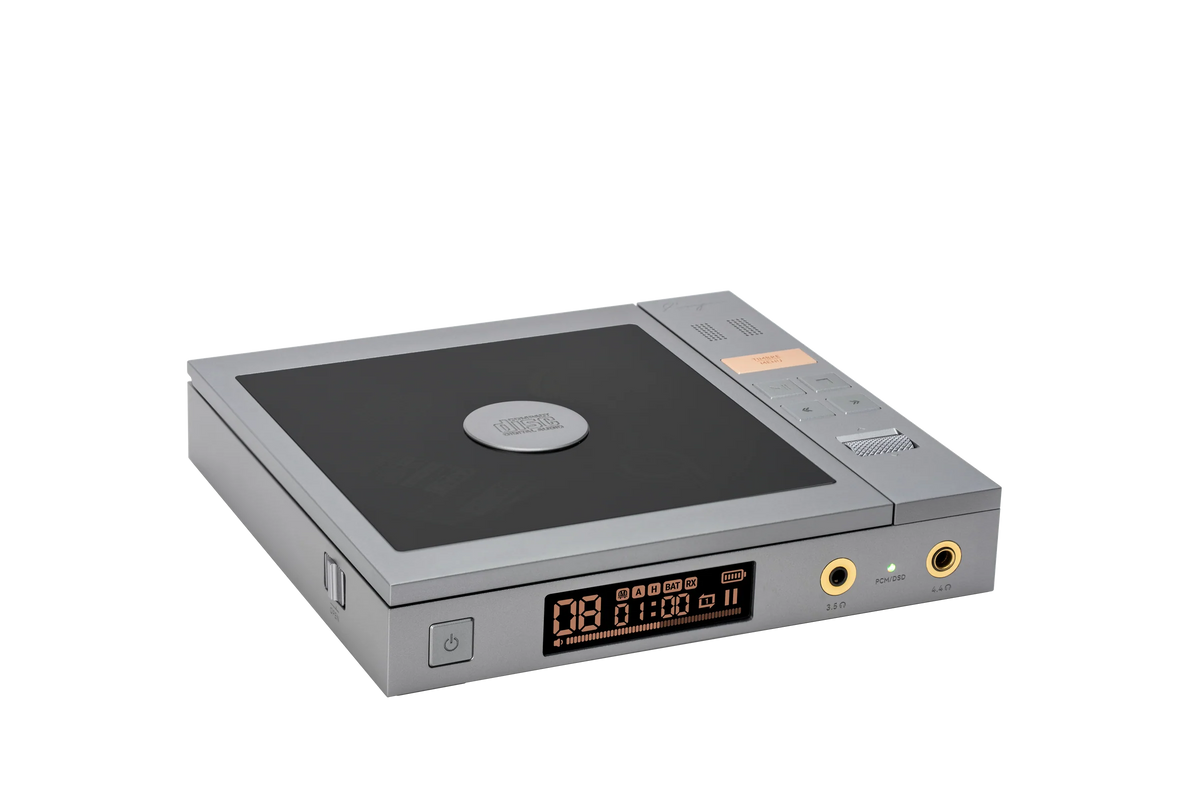

Cayin CP6 Triple Timbre Portable CD Player
Frequently Bought Together
Product Overview & Specifications

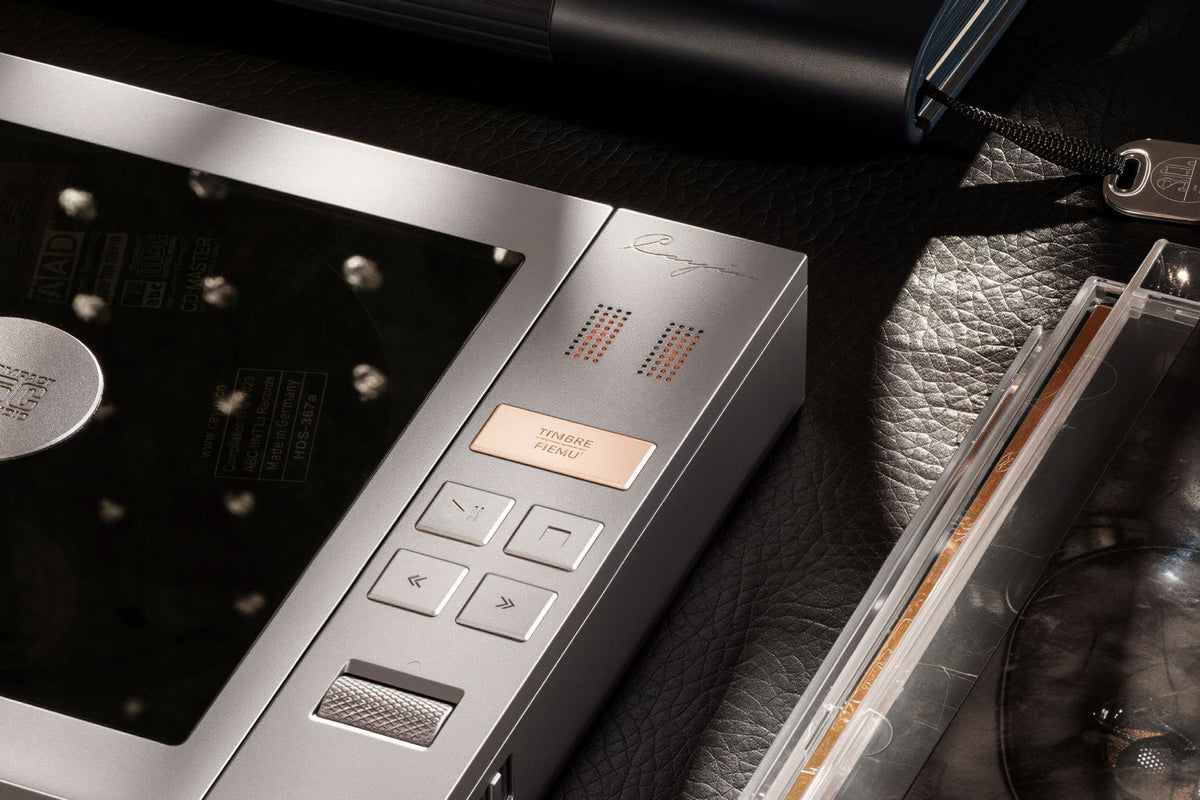

The Cayin CP6 is a flagship portable CD player, high-resolution USB DAC, and headphone amplifier that distills over two decades of Cayin's hybrid tube engineering into a mobile format. Built around a pair of US-made NOS (New Old Stock) Raytheon JAN6418 subminiature vacuum tubes, the CP6 features a proprietary anti-shock CD mechanism utilizing a multi-directional suspended chassis, tube-damping sleeves, and magnetic shielding to eliminate microphonic vibration. Driven by dual Cirrus Logic CS4308P DACs operating in mono differential mode and a 16-core XMOS XU316 USB platform, the CP6 delivers reference-grade desktop performance on the go.
Designed for extreme versatility, the CP6 supports Triple-Timbre selection (Classic Tube, Modern Tube, and Solid-State) across all phone outputs, line outputs, and wireless Bluetooth streams. Its four-channel fully discrete push-pull headphone stage operates in either Class A or Class AB bias modes, delivering up to 1300 mW + 1300 mW into 16 Ω under external DC power, or up to 7.5 hours of continuous playback via its internal 7500 mAh battery. Housed in a precision CNC-machined 6063 aerospace-grade aluminum chassis with a smoked optical glass CD viewing window, the CP6 bridges portable convenience with high-end Hi-Fi craftsmanship.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- NOS Raytheon JAN6418 Tube Architecture: Features hand-matched subminiature directly heated pentode tubes operating in a dual-channel Class A common-cathode topology with a 22V ultra-low-noise regulated power supply and DC filament design.
- Selectable Triple-Timbre Output: Instant switching between Classic Tube (rich and warm), Modern Tube (dynamic and open), and Solid-State (neutral and precise) sound signatures across all physical and wireless outputs.
- Dual Power Modes (DC & BAT): Operates via internal 7500 mAh lithium-polymer battery (up to 7.5 hours) or external DC power, which boosts voltage and bias current to output 1300 mW + 1300 mW @ 16 Ω.
- Proprietary Anti-Shock CD Mechanism: Custom optical mechanism featuring advanced error correction, suspension shock mounting, and lossless CD ripping directly to external USB storage.
- Dual Mono CS4308P DAC & XMOS XU316 Engine: Dual 32-bit Cirrus Logic DACs operating in full parallel differential mode, paired with twin OPA1612 I/V conversion stages and asynchronous USB audio processing.
- Fully Discrete Class A / Class AB Headphone Amplifier: High-power discrete push-pull output stage utilizing Nexperia PHPT610030NPKX transistors to comfortably drive headphones from 8 Ω to 600 Ω.
- Bi-Directional High-Def Bluetooth 5.4: Qualcomm QCC3083 wireless solution supporting LDAC, aptX Adaptive, aptX HD, AAC, and SBC in both transmit (Tx) and receive (Rx) modes with active tube timbres.
- Fully Balanced Precision Volume Control: JRC NJW1195A 4-channel electronic volume attenuator featuring 0.5 dB steps and an onsemi FSA2275 low-distortion analog switch network.

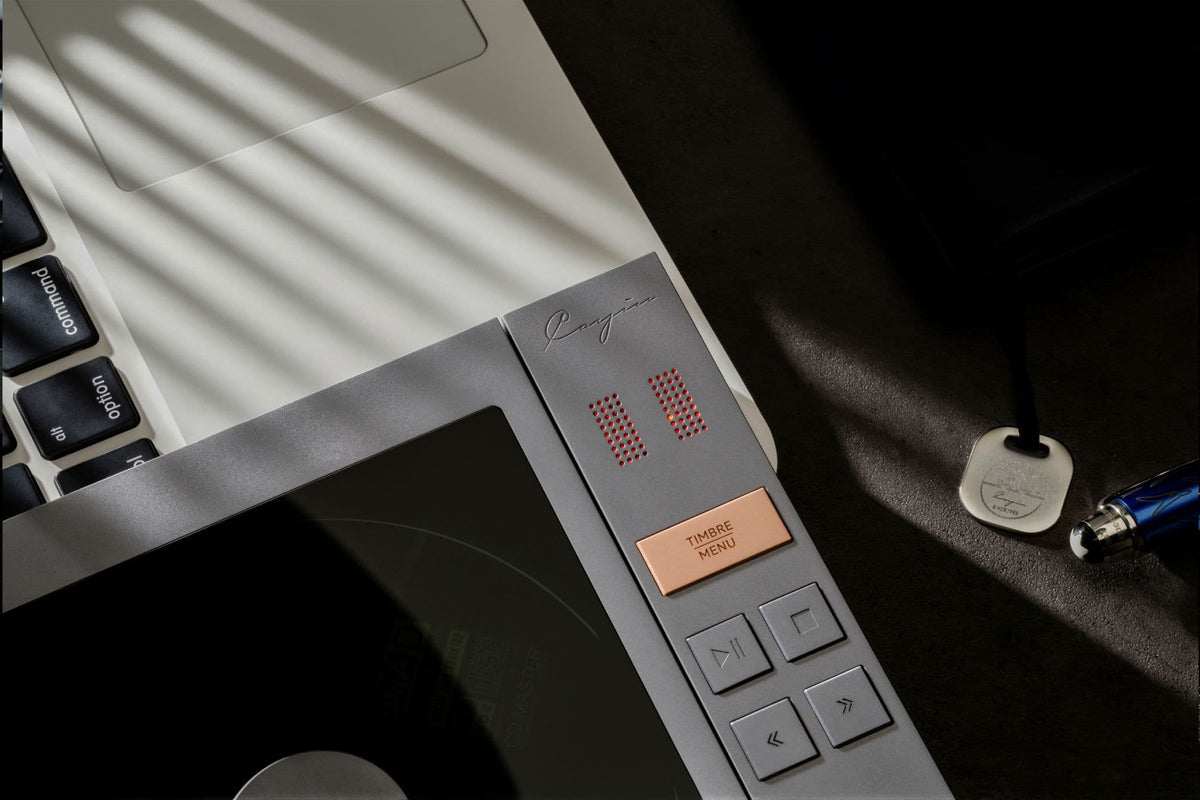

- Aerospace-Grade Aluminum Construction: Precision 6063 aluminum chassis with 180-grit sandblasted finish, Class 1 laser-safe smoked glass lid, 2.3-inch color display, and Cayin Control App integration.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Portable Hybrid Vacuum Tube CD Player / DAC / Headphone Amp |
| Vacuum Tubes | 2 x NOS Raytheon JAN6418 (USA Subminiature Directly Heated Pentodes) |
| Digital-to-Analog Converter (DAC) | 2 x Cirrus Logic CS4308P (Dual Mono Differential Output) |
| USB Audio Processor | 16-Core XMOS XU316 (Asynchronous, UAC 2.0 / UAC 1.0 Plug-and-Play) |
| Op-Amps & Transistors | 2x TI OPA1652 (Voltage Gain), 2x TI OPA1612 (I/V Filter), 4x Nexperia PHPT610030NPKX (Output) |
| Selectable Timbres | Classic Tube | Modern Tube | Solid-State (Active on PO, LO, and Bluetooth Tx) |
| Amplification Bias Modes | User-Selectable Class A / Class AB |
| Balanced Output Power (DC Mode) | 1300 mW + 1300 mW @ 16 Ω | 1100 mW + 1100 mW @ 32 Ω |
| Headphone Impedance Compatibility | 8 Ω – 600 Ω |
| Volume Controller | JRC NJW1195A 4-Channel Balanced Electronic Attenuator (0.5 dB Steps) |
| Bluetooth Solution | Qualcomm QCC3083 (Bluetooth v5.4, Bi-Directional Tx / Rx) |
| Supported Bluetooth Codecs | Rx Mode: LDAC, aptX Adaptive, aptX HD, aptX, AAC, SBC | Tx Mode: aptX Adaptive, aptX HD, aptX, SBC |
| Battery & Charging | 3.85V / 7500 mAh Lithium-Polymer (Up to 7.5 Hours Playtime; PD / QC Fast Charge) |
| Voltage Regulation Stage | 22V High-Voltage Tube LDO | 15 x Precision Ultra-Low-Noise Audio LDO Regulators |
| Display Screen | 2.3-Inch HD Color Display (76 x 284 Resolution) |

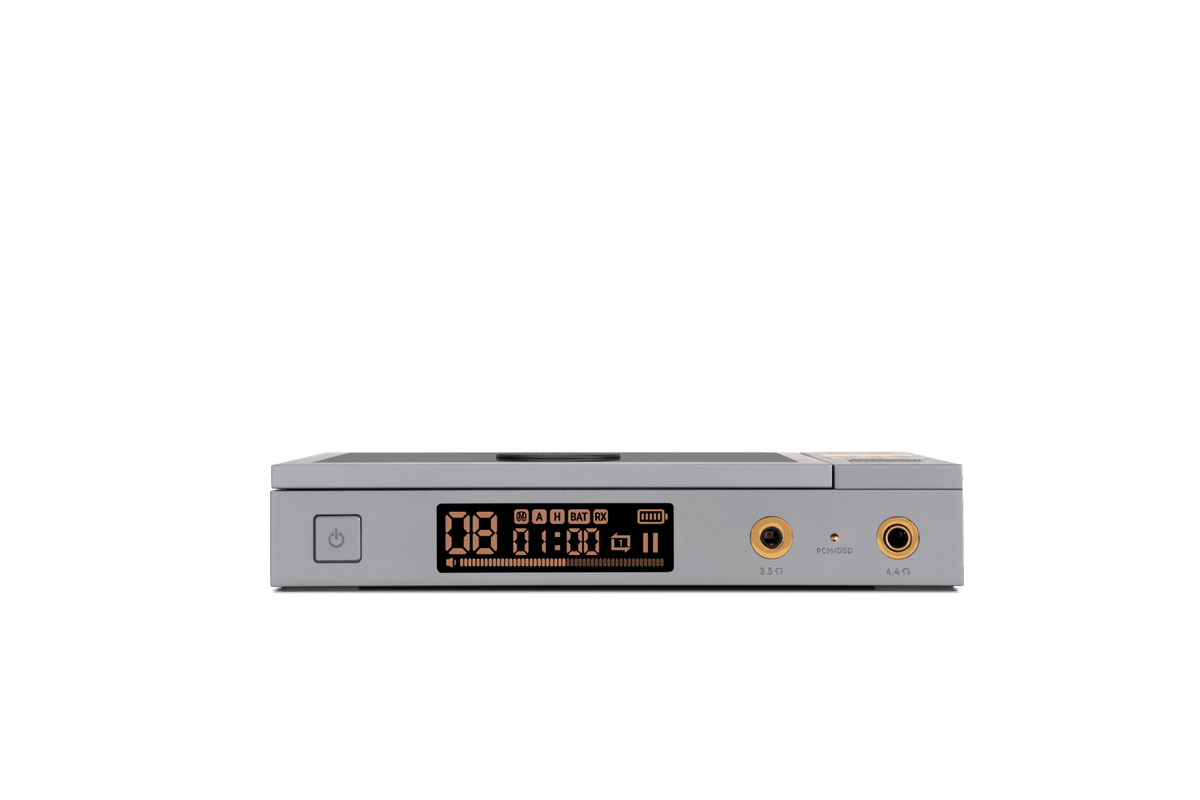

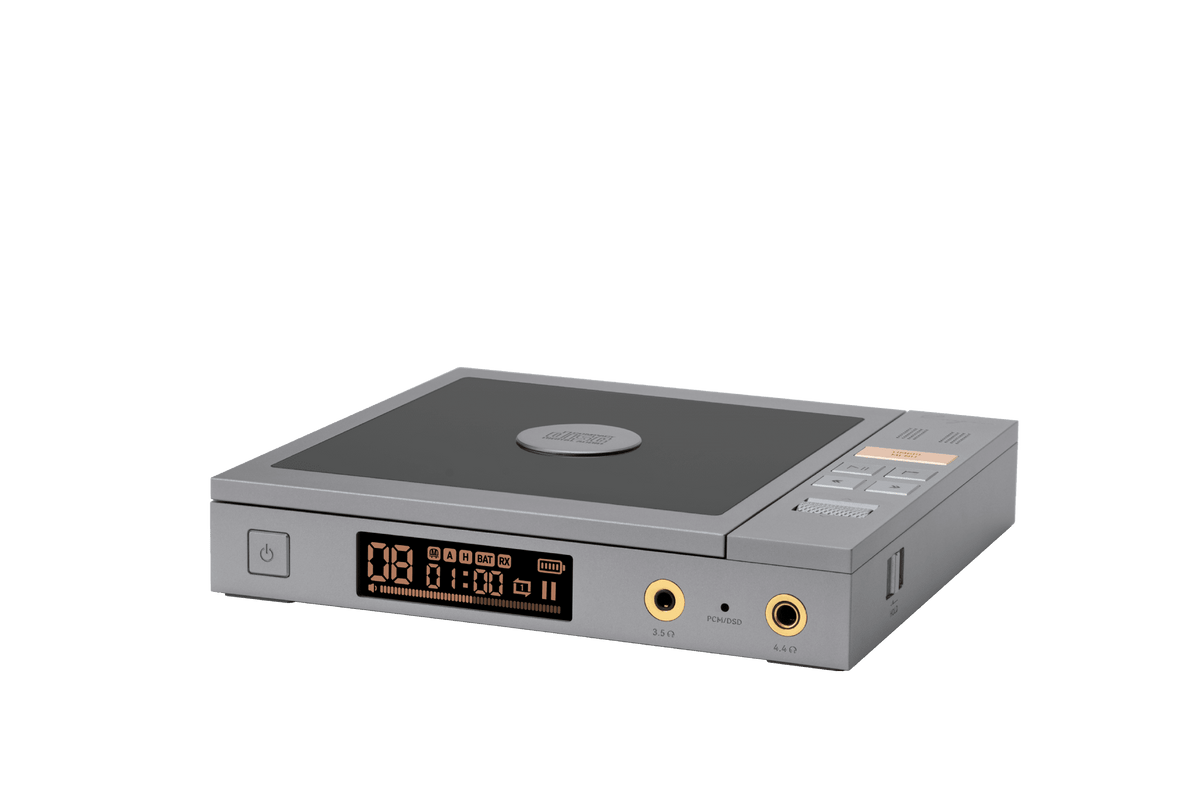

| Analog Headphone Outputs | 1x 3.5 mm Single-Ended, 1x 4.4 mm Fully Balanced |
| Analog Line Outputs | 1x 3.5 mm Single-Ended, 1x 4.4 mm Fully Balanced |
| Digital Audio Outputs | 1x Coaxial S/PDIF, 1x Optical Toslink, Wireless Bluetooth Transmitter |
| Chassis Material & Finish | CNC 6063 Aerospace Aluminum Alloy with Matte Iron-Gray 180-Grit Sandblasted Anodization |
| Optical Safety & Laser Rating | Class 1 Laser Product Certification (Smoked Optical Filter Viewing Glass) |
| App Control Support | Cayin Control APP (Android OS) |
| Manufacturer | Cayin |
