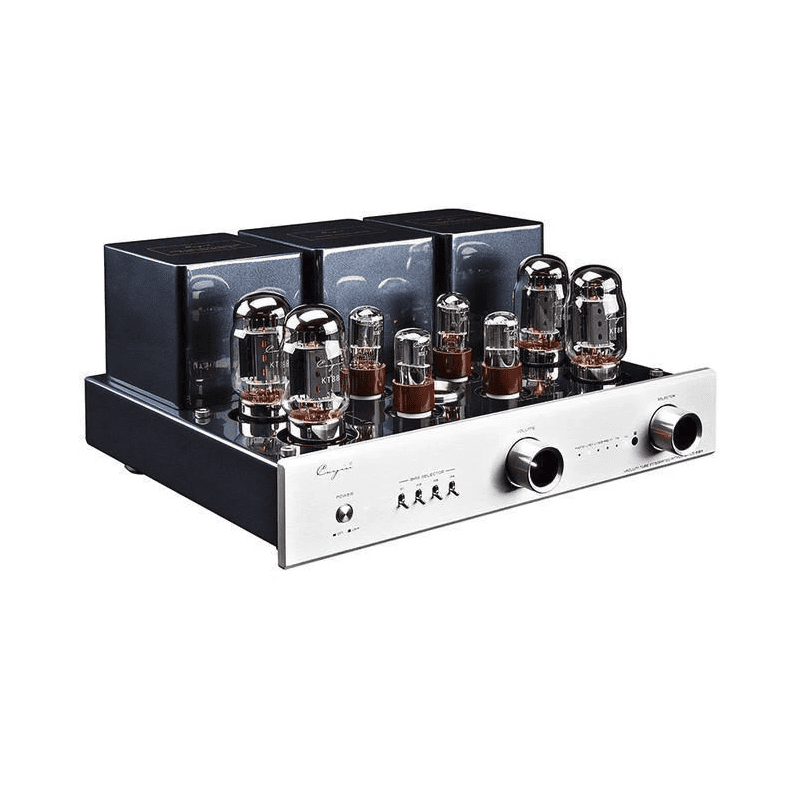

Cayin CS-88A KT88 Tube Amplifier - Type UK
Frequently Bought Together
Product Overview & Specifications
The brand new successor to the popular and incredibly well reviewed Cayin A-88TMK2, the CS-88A now has an beautifully designed and implemented MM phono input.
We have also quite a bit extra going on behind that 42 cm wide solid aluminium front panel, with significant circuit and design improvements - want the perfect digital front end for this tube amplifier, then look no further than the all new Cayin CS-100CD.
Its larger and entirely re-designed power supply gives it more dynamic headroom and load stability.
In particular the all new 'broadband' output transformers also ensure even more fine detail in the sound pattern.
The tube assembly of the Cayin CS-88A makes the connoisseurs' heart beat faster: Hand matched 2 x 6SL7 2 x 6SN7, 4 x KT88 in combination ensure that your neck hairs dance while listening to music !
To ensure that the performance is still convincing years later, the Cayin CS-88A can be fine-tuned with its integrated bias measuring instrument, making it an absolute pleasure to frequently check the bias levels and ensure maximum longevity of the tube compliment.
Technical Specifications
| Type of device | Integrated amplifier with MM phono input |
| Frequency Response | 10Hz - 42kHz (-3dB> |
| Harmonic distortion (THD) | 1% (1kHz) |
| Signal to Noise Ratio | 93 dB |
| inputs | 1 x Phono MM, 2 x Line, 1 x Pre-In |
| Input Impedance | 100K |
| Input Sensitivity | 260mV |
| Damping factor | >65 |
| PHONO | |
| input sensitivity | 3mv |
| input impedance | 47k |
| RIAA deviation | Less than ± 0.25dB |
| tubes | 2 x 6SL7 2 x 6SN7, 4 x KT88 |
| domestic equipments | Remote control, integrated bias meter |
| circuit | Class A (Triode) - Class A/B (Ultralinear) |
| housing Color | black |
| front panel | Silver or black |
| Speaker Impedance | 4 ohms, 8 ohms |
| Output power (RMS) at 4 and 8 ohms | 27W + 27W Triode, 48W + 48W Ultralinear |
| Maximum power consumption | 280VA |
| mains voltage | 230V AC / 50Hz |
| Dimensions (W x D x H) | 420mm x 382mm x 195mm |
| mass | 28.5 kg |
Manufacturer site
