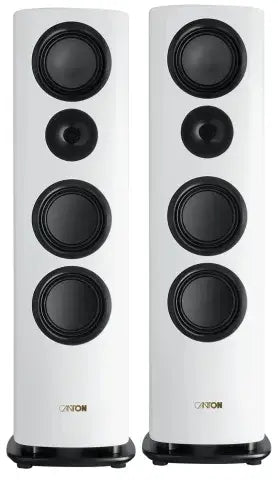

The Canton Reference 5 is a high-performance 3-way floorstanding loudspeaker manufactured in Germany to exacting acoustic standards. Designed around the "Form Follows Function" philosophy, the cabinet features curved side walls, top, and bottom sections, paired with 5-axis CNC-milled rounded front baffles to reduce cabinet resonances and optimize off-axis dispersion. Low frequencies are handled by a down-firing bass reflex system coupled with a high-capacity internal cabinet volume.
The speaker utilizes dual 174 mm Black Ceramic Tungsten (BCT) woofers and a dedicated 174 mm BCT midrange driver housed in its own isolated chamber. The BCT diaphragms convert 25% of the aluminum molecular structure into ceramic, infused with tungsten and metal particles for an exceptional stiffness-to-weight ratio and low harmonic distortion. High frequencies are reproduced by a 25 mm Black Aluminum Oxide Ceramic (BC) dome tweeter. Signal connections are managed via German WBT nextgen™ binding posts with bi-wiring/bi-amping support, complete with Canton's Room Compensation (RC) technology for fine-tuning mid and high frequencies in 1.5 dB steps.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Advanced BCT (Black Ceramic Tungsten) Cones: Diaphragms convert 25% of an aluminum base into a ceramic structure infused with tungsten and metal particles, achieving high rigidity and optimized self-damping.
- Triple Curved Cone (TCC) Technology: Specially shaped ceramic midrange cone geometry stabilizes the diaphragm structure to eliminate unwanted resonances and standing waves.
- 5-Axis CNC Curved Cabinet Architecture: Elaborately curved side panels, top, bottom, and rounded front baffles minimize cabinet colorations and standing waves.
- Down-Firing Bass Reflex System: Bottom-ported bass guide system enhances low-frequency response down to 21 Hz while simplifying room placement.
- WBT nextgen™ Terminals with Bi-Wiring/Bi-Amping: High-grade binding posts equipped with Room Compensation (RC) level adjustments (±1.5 dB for midrange and treble) and hard-gold-plated copper jumper bridges.
- Latest-Generation Wave Surrounds: Precision-engineered surrounds ensure smooth, linear diaphragm excursion and low-distortion performance during high-volume transients.
SPECIFICATIONS
| Product Type | 3-Way Bass Reflex Floorstanding Loudspeaker |
| Country of Origin | Germany |
| Acoustic Design | 3-Way System with Down-Firing Bass Reflex Resonator |
| High Frequency Driver | 1 x 25 mm (1") Black Aluminum Oxide Ceramic (BC) Dome Tweeter |
| Midrange Driver | 1 x 174 mm (6.8") Black Ceramic Tungsten (BCT) with TCC & Wave Surround |
| Low Frequency Drivers | 2 x 174 mm (6.8") Black Ceramic Tungsten (BCT) Woofers |
| Nominal / Music Power Handling | 200 Watts / 370 Watts |
| Frequency Response | 21 Hz – 40,000 Hz |
| Nominal Impedance | 4 – 8 Ω |
| Level Adjustment | RC Technology (1.5 dB steps for Midrange and Tweeter) |
| Binding Posts | WBT nextgen™ (Supports Bi-Wiring / Bi-Amping) |
| Included Accessories | Hard-Gold-Plated Copper Jumper Bridges |
| Available Cabinet Finishes | White Silk-Matte / Black Piano High-Gloss (12-Layer Polished Lacquer) |
