Astell&Kern PD5 Hi-Res Portable Player
Frequently Bought Together
Product Overview & Specifications

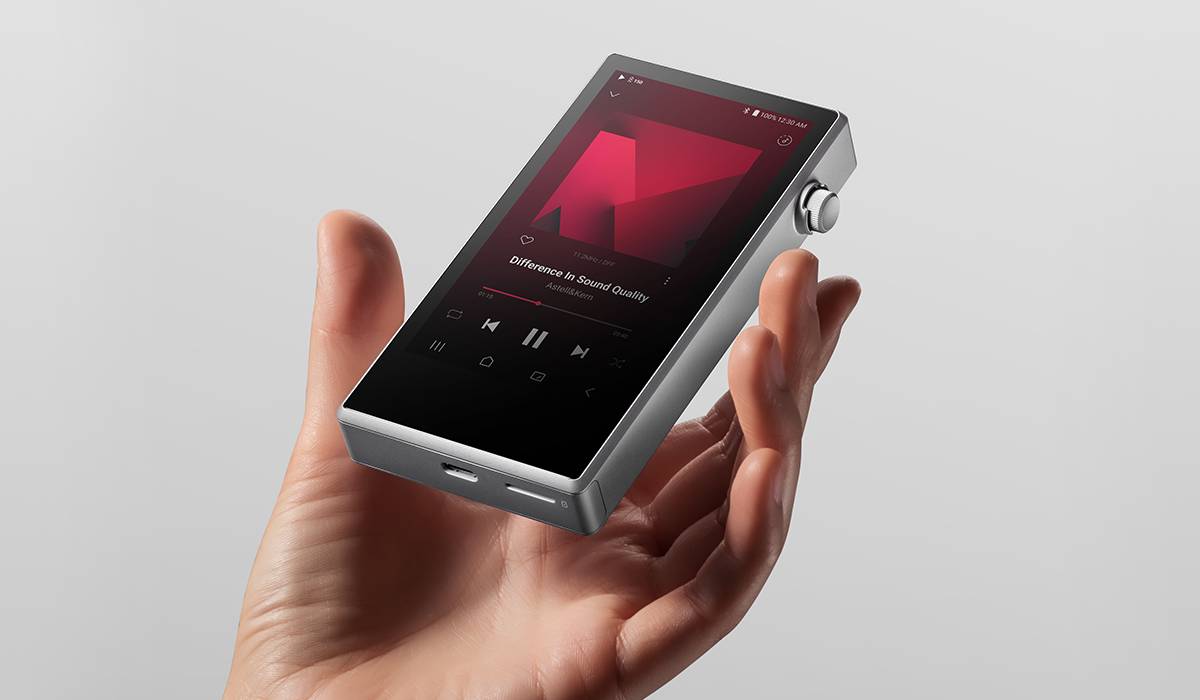

The Astell&Kern PD5 is a high-resolution digital audio player (DAP) that combines a switchable Octa-DAC architecture with portability. Designed to bridge the gap between compact hand-friendly players and desktop-class fidelity, the PD5 features eight Cirrus Logic CS43198 DACs, an octa-core CPU, and up to 28 hours of continuous battery life within a CNC-machined aluminium housing.
Equipped with Astell&Kern's TERATON ALPHA sound engine, the player offers a Dual Drive Mode that allows users to toggle between Quad-DAC mode (optimised for power efficiency and natural tonality) and Octa-DAC mode (unlocking maximum dynamic performance and up to 8Vrms output). Running a full Android operating system, the PD5 supports streaming services alongside offline hi-res audio playback, real-time ambient noise compensation via EnviroTune, and extensive wireless streaming options.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Switchable Octa-DAC Architecture: Powered by eight Cirrus Logic CS43198 DAC chips arranged to deliver wide dynamic range, extreme channel separation, and low total harmonic distortion.
- Dual Drive Mode (Quad / Octa): Allows switching between Quad-DAC mode (3Vrms unbalanced / 6Vrms balanced; up to 28 hours battery life) and Octa-DAC mode (4Vrms unbalanced / 8Vrms balanced; up to 15 hours battery life).
- EnviroTune Real-Time Acoustic Compensation: Utilises an integrated microphone to monitor ambient environment noise in real time, automatically compensating for masked frequencies without increasing total volume.
- TERATON ALPHA Sound Solution: Astell&Kern's ultimate sound engine designed to remove power supply noise, optimize amplification, and maintain signal purity from conversion to output stage.
- Enhanced Signal Alignment (ESA) & DAR: ESA technology minimises group delay for frequency alignment, while Digital Audio Remaster (DAR) upsamples audio streams for refined analog-like expression.
- Full Android OS & High-Res Wireless: Octa-core CPU running full Android with Google Play Store support, dual-band Wi-Fi, Bluetooth 5.3 (LDAC, LHDC, aptX HD), Roon Ready, and Qobuz Certification.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | Portable High-Resolution Digital Audio Player (DAP) |
| Brand / Model | Astell&Kern — PD5 |

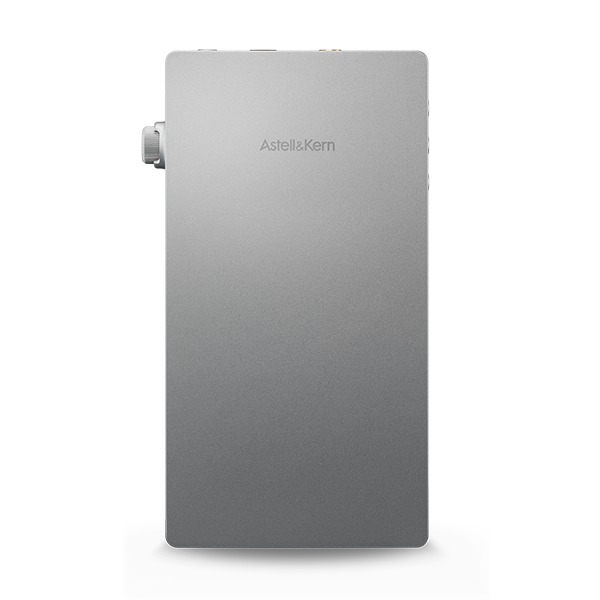

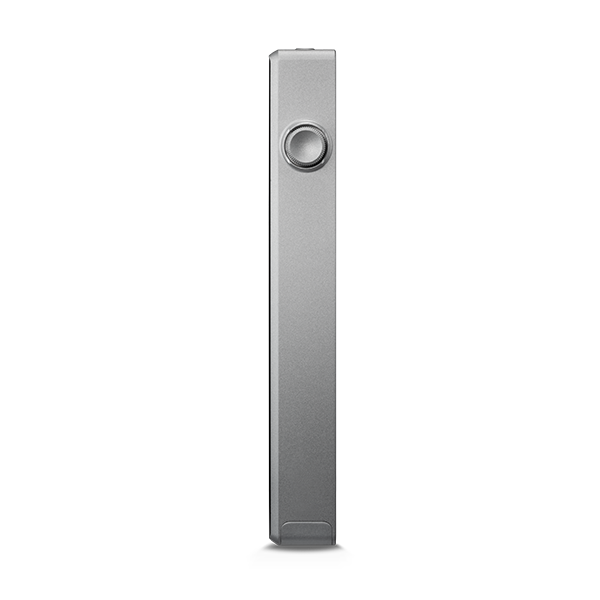

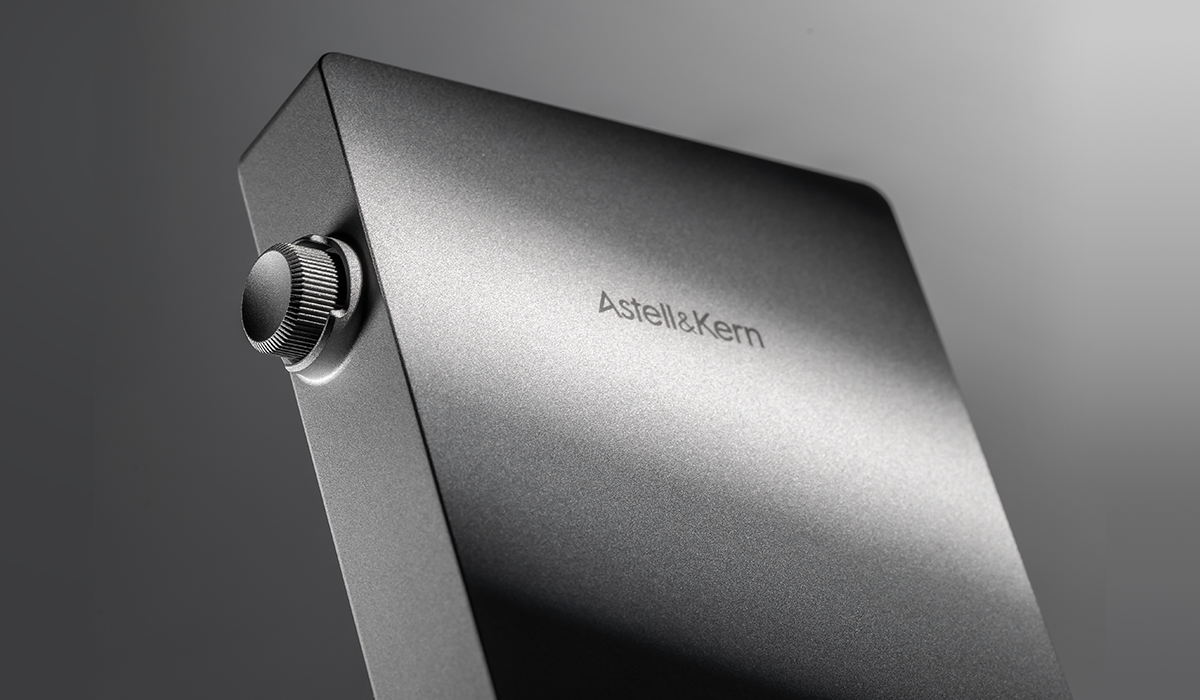

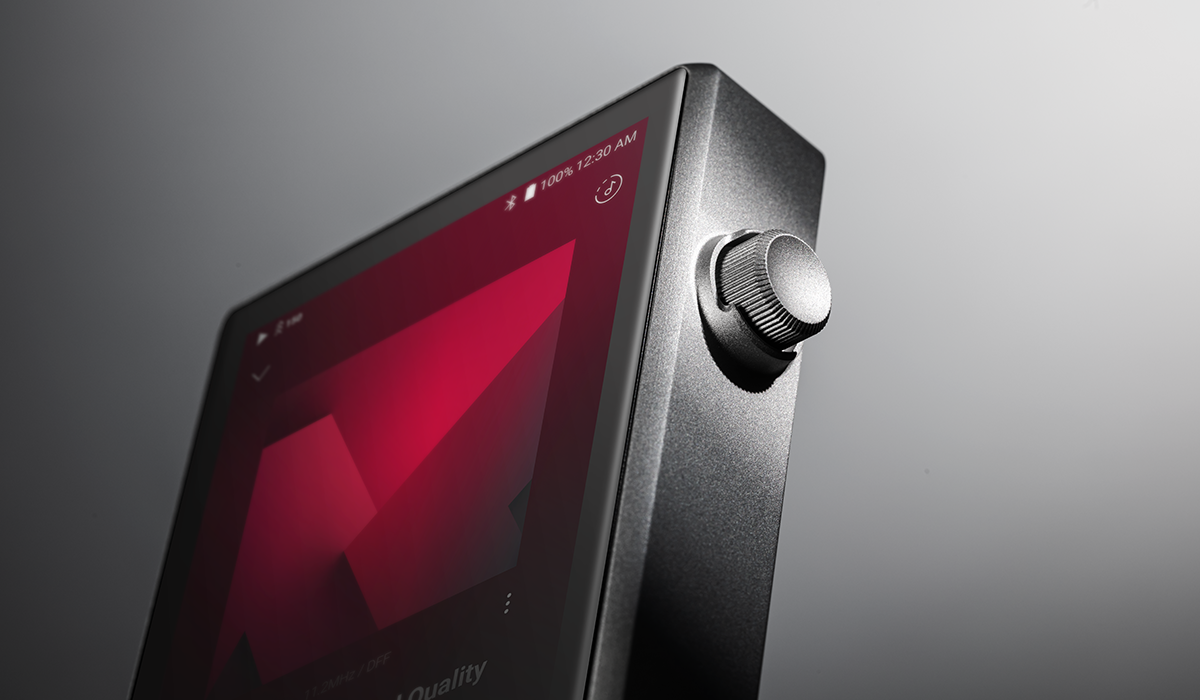

| Chassis Material & Colour | CNC Aluminium Housing (Silver Finish) |
| Display | 4.1-inch HD Touchscreen (720 x 1280 Resolution) |
| CPU / Operating System | Octa-Core Processor | Full Android OS (Google Play Store Support) |
| DAC Configuration | 8x Cirrus Logic CS43198 (Switchable Quad-DAC / Octa-DAC Modes) |
| Audio Resolution Support | PCM: Bit-to-bit up to 32-bit / 384 kHz | DSD: Native DSD64 to DSD256 (Stereo) |
| Supported Audio Formats | WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF |
| Output Levels (Quad-DAC Mode) | Unbalanced 3.0Vrms | Balanced 6.0Vrms (Condition No Load) |
| Output Levels (Octa-DAC Mode) | Unbalanced 4.0Vrms | Balanced 8.0Vrms (Condition No Load) |
| Analogue Audio Outputs | 1x 3.5mm Unbalanced Out | 1x 4.4mm Balanced Out (5-Pole Only) |
| Audio Performance Metrics | SNR: 125dB (Unbalanced) / 129dB (Balanced) | THD+N: 0.0006% @ 1kHz | Crosstalk: -145dB (Unbalanced) / -147dB (Balanced) |
| Storage Capacity | 64GB Internal NAND Flash + 1x microSD Card Slot (Supports up to 1.5TB) |
| Wireless & Network Connectivity | Dual-Band Wi-Fi (802.11 a/b/g/n/ac 2.4/5GHz) | Bluetooth 5.3 (LDAC, LHDC, aptX HD, AAC, SBC) | BT Sink |
| Streaming & Ecosystem Support | Roon Ready, Qobuz Certified, Tidal, Apple Music, Spotify, ReplayGain, Crossfeed Processing |
| Battery Life & Capacity | 4,000 mAh 3.8V Li-Polymer | Approx. 28 Hours (Quad-DAC Mode) / ~15 Hours (Octa-DAC Mode) |
| Charging Interface | USB Type-C (Supports PD 3.0 Fast Charging, Approx. 2.5 Hours Full Charge) |
| Dimensions (W x H x D) | 69.7 x 119.7 x 16.1 mm |
| Net Weight | Approx. 198 g |
| Included Accessories | Clear High-Grip TPU Protective Case, USB Type-C Cable, Quick Start Guide |
