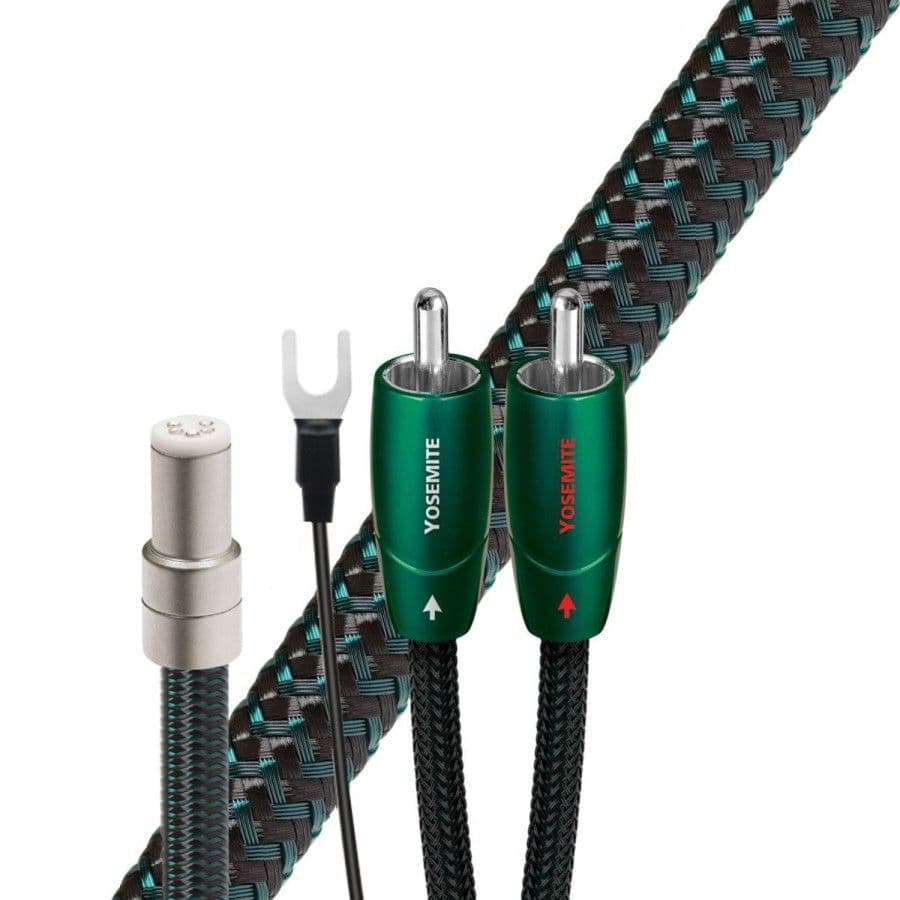

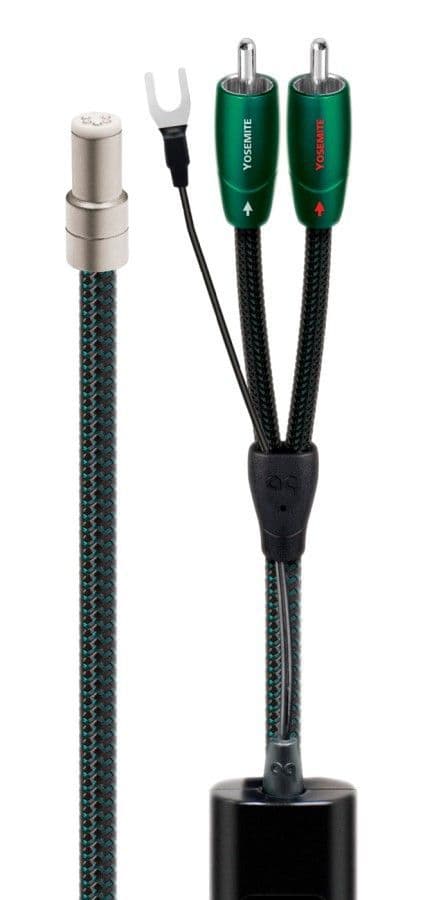

AudioQuest Yosemite Tonearm Cable
AudioQuest Yosemite Tonearm Cable
Our price match promise...
If you find an identical item cheaper from one of our online competitors, tell us and not only will we match the price, we'll beat it by 10% of the difference.
Estimated Shipping Widget will be displayed here!
The AudioQuest Yosemite Tonearm Cable is a high-performance analog phono interconnect engineered specifically to transmit delicate, low-level micro-signals from turntable tonearms to phono preamplifiers without distortion or RF degradation. Available in a 1.2-meter length with a choice of straight or 90° angled DIN connectors to two RCA plugs, it includes an integrated external grounding wire to eliminate hum.
At its core, the Yosemite Tonearm cable uses solid core Perfect-Surface Copper+ (PSC+) conductors insulated by FEP Air-Tubes to minimize energy storage and phase smearing. AudioQuest’s active 72V Dielectric-Bias System (DBS) maintains a stable electrostatic field across the insulation to reduce non-linear time delays. Signal purity is further safeguarded by a 3-Layer Carbon-Based Noise-Dissipation System (NDS) and double-balanced asymmetrical geometry terminated with solderless, cold-welded direct-silver plated Red Copper RCA plugs.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- Solid Perfect-Surface Copper+ (PSC+) Conductors: Ultra-pure solid-core copper with an exceptionally smooth surface eliminates strand-interaction distortion and grain-boundary interference.
- FEP Air-Tube Insulation: Utilizes Fluorinated Ethylene Propylene air-tubes to keep conductor contact with solid dielectric materials to a minimum, preserving dynamic contrasts and signal speed.
- 72V Dielectric-Bias System (DBS): Polarizes and saturates the cable's insulation with a continuous 72V electrostatic field, preventing dielectric energy absorption and time-delay distortion.
- Carbon-Based 3-Layer Noise-Dissipation System (NDS): Alternating layers of metal and carbon-synthetics absorb and reflect RFI before it can reach the ground plane and modulate the audio signal.
- Double-Balanced Asymmetrical Geometry: Separates single-ended positive and negative signal paths from the ground shield for lower ground impedance and lower noise floor.
- Cold-Welded Direct-Silver Plated Red Copper Plugs: Solderless cold-welded RCA terminations using direct silver plating over pure Red Copper eliminate solder-induced distortion.
- Integrated Grounding Conductor: Features a dedicated separate grounding wire alongside split-tail terminations (5 cm split length) for straightforward turntable grounding.
SPECIFICATIONS
| Product Category | Turntable Tonearm Phono Interconnect Cable |
| Conductor Metallurgy | Solid Perfect-Surface Copper+ (PSC+) |
| Cable Geometry | Asymmetrical Double-Balanced (Separate Ground / Shield) |
| Dielectric / Insulation | FEP (Fluorinated Ethylene Propylene) Air-Tubes |
| Active Bias System | 72V Dielectric-Bias System (DBS) with Test Button & LED Indicator |
| Noise Suppression | 3-Layer Carbon-Based Noise-Dissipation System (NDS) |
| Connector Types | Tonearm DIN (Straight or 90° Angled) to 2 x RCA Plugs + Separate Ground Wire |
| Connector Metallurgy | Cold-Welded Direct-Silver Plated Pure Red Copper (Solderless) |
| Capacitance | < 90 pF / 1.5 m |
| Cable Length | 1.2 m (3.9 ft) |
| Jacket Braid & Tail Design | Black/Green Braided Jacket | 5 cm Split Tail from Junction to RCA Base |
| Manufacturer | AudioQuest (USA) |
