Musical Fidelity M6 Encore 225 2TB - Black
Condition Report
Score: 5 / 5 Mint
Visually and mechanically indistinguishable from new.
- Complete with everything, only powered up, never used.
- Still has screen protector.
- 4 Years old, never used.
Highly Commended
Product Overview & Specifications

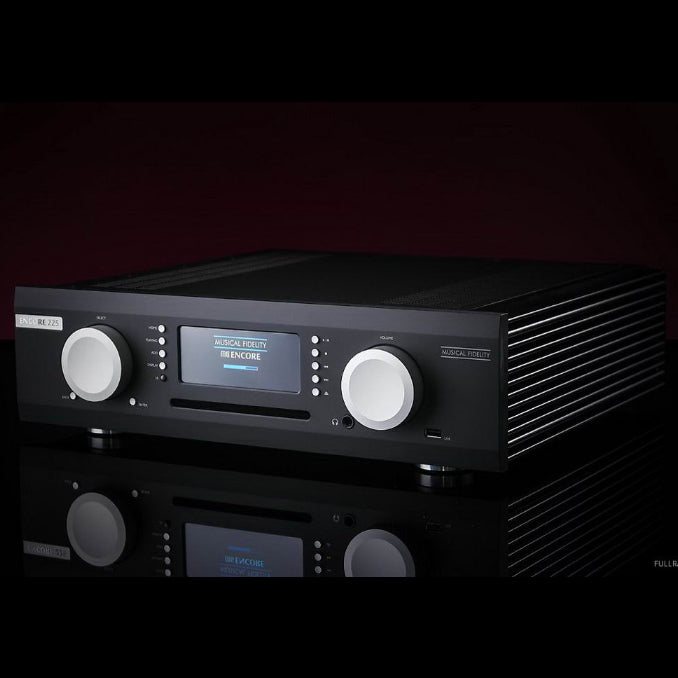

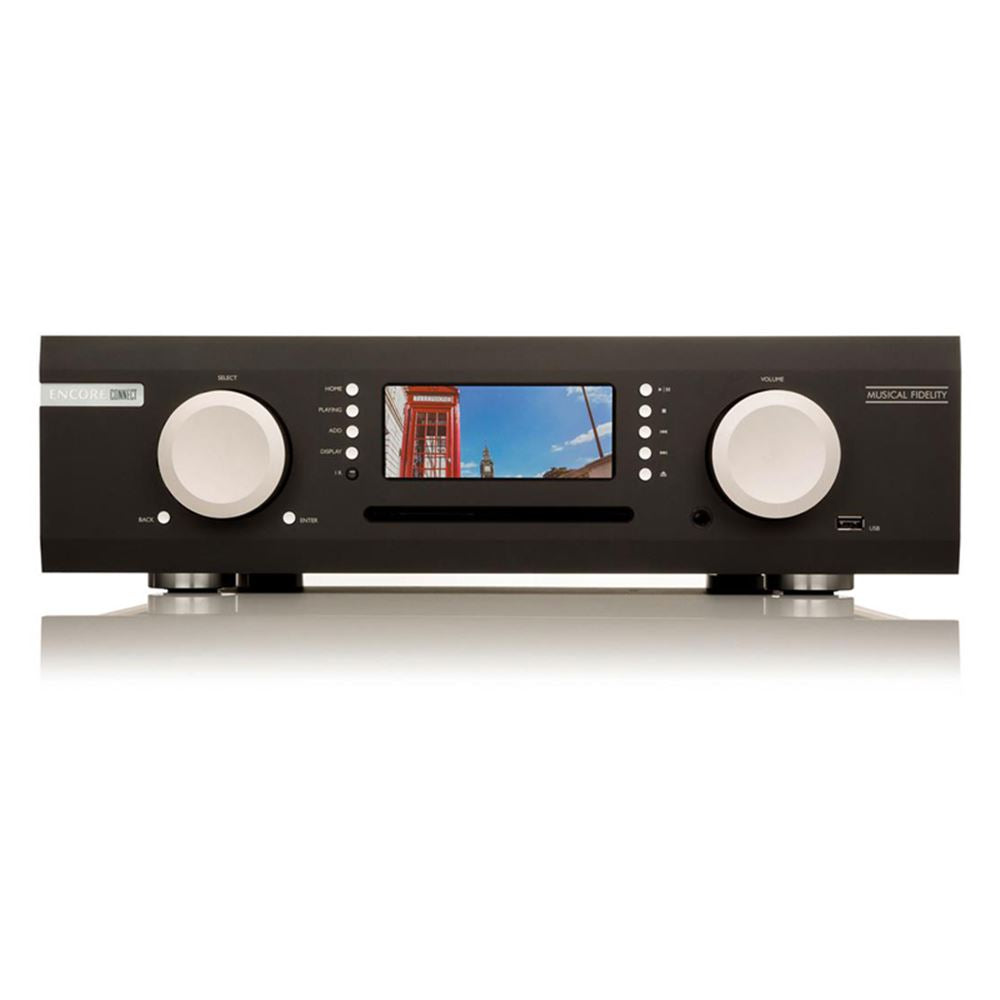

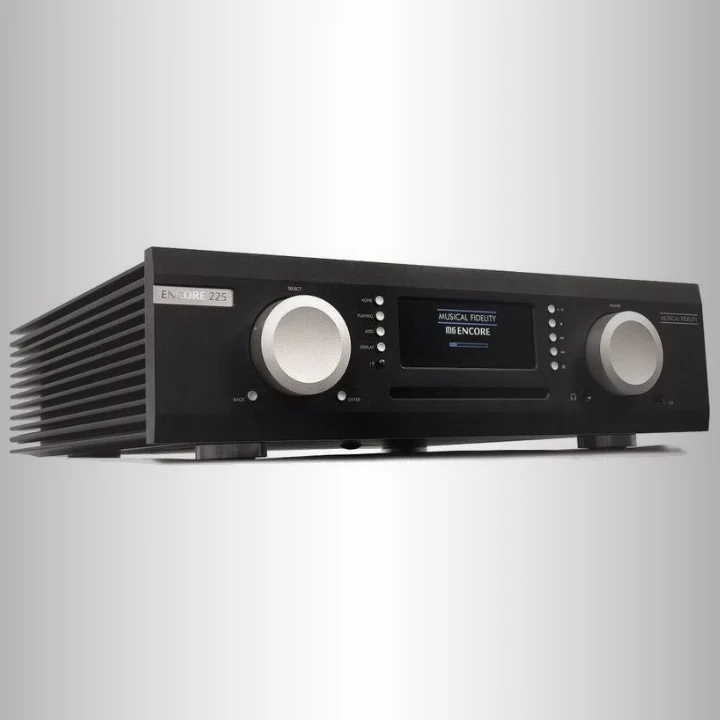

The Musical Fidelity Encore 225 is an all-in-one integrated network music system combining a CD transport/ripper, internal 2 TB storage, high-resolution digital-to-analogue conversion, network streaming, and a 225-watt-per-channel stereo power amplifier. Built around a dual-core 64-bit Intel processor and a 32-bit/384kHz DAC, the unit consolidates physical disc playback, local library management, and streaming from services including TIDAL, Qobuz, and Spotify, while offering multi-room compatibility with network wireless speakers such as Sonos.
Derived from the M6si power amplifier architecture, the output stage delivers 225 watts per channel into 8 ohms with less than 0.007% THD+N across the 20 Hz to 20 kHz bandwidth and a signal-to-noise ratio exceeding 107 dB (A-weighted). Housed in a 440 mm wide chassis featuring a large full-colour high-resolution display, the Encore 225 provides extensive analogue and digital connectivity—including three line-level RCA inputs, four S/PDIF digital inputs, four USB Type-A ports, fixed and variable pre-outs, digital outputs, and a dedicated headphone amplifier with independent volume memory—controllable via the included IR remote or iOS and Android applications.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- 225W Dual-Mono Power Amplification (M6si Topology): Delivers 225 watts per channel into 8 Ω with < 0.007% THD+N (20 Hz – 20 kHz) and > 107 dB A-weighted signal-to-noise ratio.

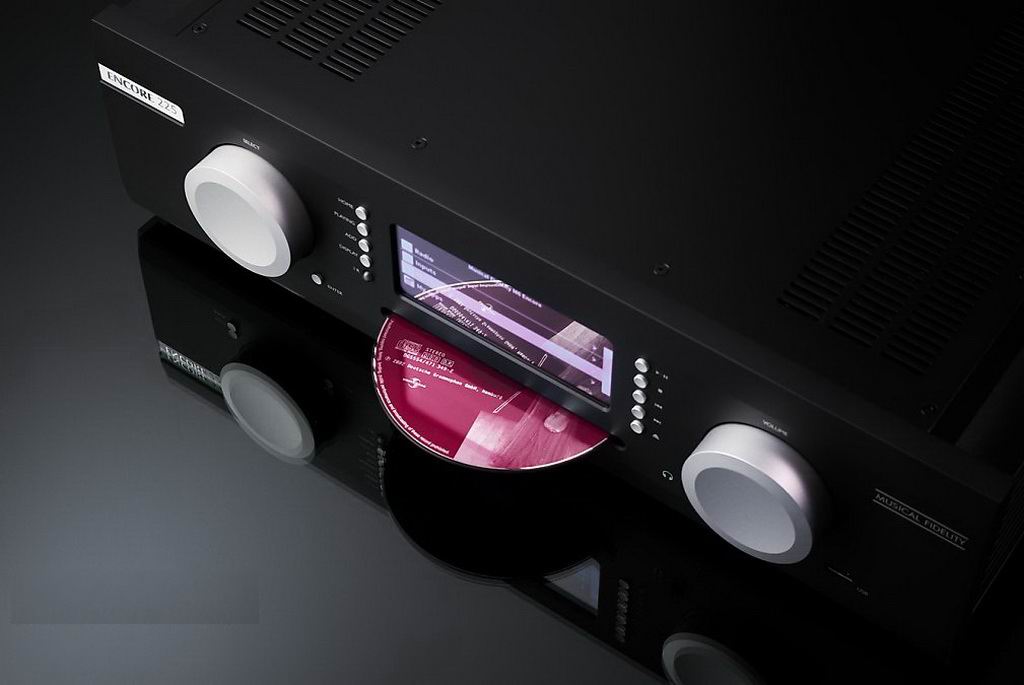

- Integrated CD Player & Upgradeable 2 TB Internal Storage: Includes a built-in CD drive and a 2.5" 2 TB SATA II internal hard disk drive (upgradeable to SSD) for local music archiving and playback.
- 32-Bit / 384kHz DAC & Dual-Core 64-Bit Intel Processing: Powered by a 64-bit dual-core Intel CPU and a 32-bit/384kHz DAC supporting bit-accurate playback and firmware upgradability.
- Network Streaming & Multi-Room Compatibility: Integrates Gigabit Ethernet (10/100/1000 Base-T) with native access to TIDAL, Qobuz, and Spotify, alongside compatibility with network speaker systems including Sonos.

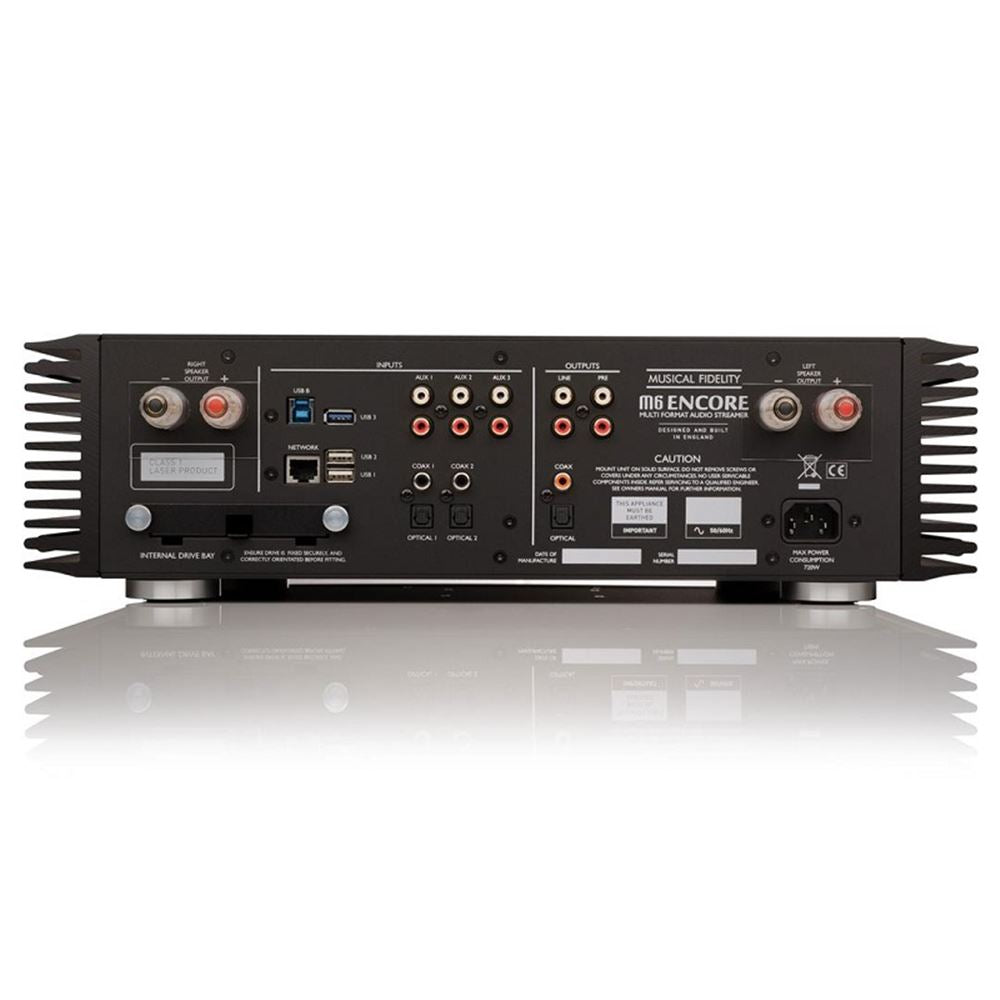

- Comprehensive Analogue, Digital & USB Connectivity: Equipped with 3x stereo line-level RCA inputs, 2x optical and 2x coaxial 24-bit/192kHz S/PDIF inputs, 4x USB Type-A ports (1x USB 3.0, 3x USB 2.0), plus fixed line-out, variable pre-out, and optical/coaxial digital outputs.
- Dedicated Headphone Stage & High-Resolution Display: Features a front-panel high-resolution full-colour screen and a headphone output supporting impedances from 8 Ω to ∞ with independent volume control.
SPECIFICATIONS
| Specification | Detail |
|---|---|
| Product Category | All-In-One Integrated Network Music System, CD Player & Stereo Amplifier |
| Brand / Model | Musical Fidelity — Encore 225 |
| Amplifier Architecture | M6si-Derived Stereo Power Amplifier Stage |
| Rated Power Output | 225 Watts per channel into 8 Ω |
| Total Harmonic Distortion (THD+N) | < 0.007% typical (20 Hz – 20 kHz) |
| Signal-to-Noise Ratio (SNR) | > 107 dB (A-weighted) |
| Frequency Response | 10 Hz – 20 kHz (+0, -0.1 dB) |
| DAC & System Processor | 32-Bit / 384 kHz DAC | Dual-Core 64-Bit Intel CPU |
| Disc Drive & Internal Storage | Built-In CD Drive | 2.5" 2 TB SATA II Hard Disk Drive (Included, Upgradeable to SSD) |
| Analogue Inputs | 3x Stereo Line-Level RCA (300 mV nominal, 2 V typical, up to 7 Vrms max) |
| Digital & Data Inputs | 2x Optical S/PDIF (24-Bit/192 kHz), 2x Coaxial S/PDIF (24-Bit/192 kHz), 1x USB 3.0 Type-A, 3x USB 2.0 Type-A (1 front, 2 rear), 1x USB 3.0 Type-B (expansion) |
| Analogue & Speaker Outputs | 1x Fixed Line-Level RCA (2.0 V @ 0 dBFS, > 6 Vrms max), 1x Variable Pre-Amp Out (> 6 Vrms max, +13 dB / 4.5x gain), 1x Pair 4 mm Banana Speaker Terminals |
| Digital & Headphone Outputs | 1x Optical S/PDIF (24-Bit/192 kHz), 1x Coaxial S/PDIF (24-Bit/192 kHz), 1x Headphone Output (8 Ω – ∞ load impedance, independent volume) |
| Network & Streaming | 10/100/1000 Base-T Gigabit Ethernet | TIDAL, Qobuz, Spotify, Sonos Network Speaker Compatible |
| Display & Control | Large High-Resolution Full-Colour Display | IR Remote Handset & iOS / Android Control Apps |
| Dimensions (W x H x D) | 440 x 125 x 400 mm |
| Net Weight | 23 kg |
