Powerful Audio Anywhere, CA1000T

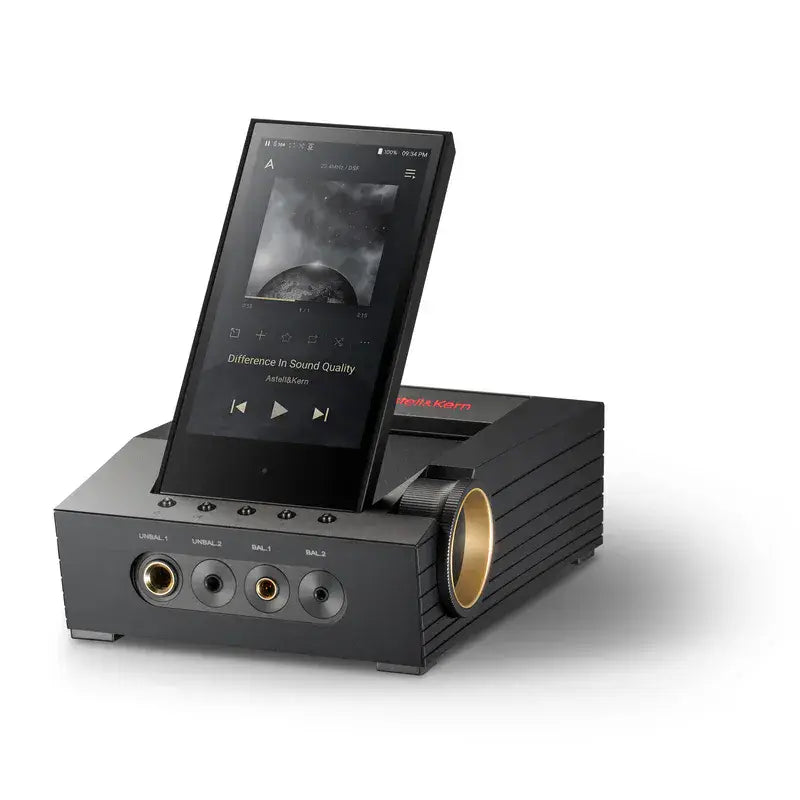

Introducing the Astell&Kern CA1000T Carryable Headphone Amp.

The worlds first device to feature a dual-tube triple amp system and the latest ESS flagship DAC.

Designed for audio connoisseurs, the ACRO CA1000T pushes the sonic limitations beyond that of a standalone headphone amplifier with additional terminals for multiple connections.

The versatile ACRO CA1000T provides compatible I/O terminals that can satisfy the diverse needs of audio enthusiasts who want to build a complete head-Fi system.

By providing XLR and RCA output, Wi-Fi, and Bluetooth to connect external audio devices and speakers, the ACRO CA1000T consolidates all your premium audio connections into one device.

Key features

• Worlds first use of flagship ESS ES9039MPRO Dual-DACs
• 4-step gain level with maximum 15Vrms output
• Maximum options Multiple inputs and outputs
• Support for 32bit/768kHz PCM and Native DSD512
• Triple Amp System with dual Triode KORG Nutube tubes

MQA 16X full hardware decoding.

Included in the box

• 1x Astell&Kern ACRO CA1000T
• 1x USB-C to USB-A Cable
• 1x Screen Protector
• 1x Quick start guide
• 1x Warranty Card

Building on the success of the ACRO CA1000, the CA1000T features the companys own unrivalled TERATON ALPHA technology which provides distortion-free sound even at the highest output.

The device also supports a four-stage Gain Level setting of up to 15Vrms for the most sophisticated IEM and headphones.

The compact audio system is a stellar design piece with the brands signature sharp edges and parallel lines on each side coupled with a stunning gold coloured dial.

This, combined with the brushed grey aluminium body, reflects the power and detail of the CA1000T.

Model : AC1000T

Body Colour : Rich Grey

Body Material : Aluminium

Display : 4.1-inch, 720 x 1280px touch screen

Supported Audio Formats : WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF

Sample rate

PCM: 8kHz ~ 768kHz (8/16/24/32bits per Sample), DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), DSD512(1bit, 22.4MHz) Stereo

Output Level:

Headphone Out: [Low] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load), [Mid] Unbalanced 4Vrms / Balanced 8Vrms (Condition No Load), [High] Unbalanced 6Vrms / Balanced 12Vrms (Condition No Load), [Super] Unbalanced 8Vrms / Balanced 15Vrms (Condition No Load)

RCA Out

2Vrms (Condition No Load)

XLR Out

4Vrms (Condition No Load)

CPU : Quad-core

DAC : ESS ES9039MPRO x2 (Dual-DAC)

Vacuum Tube : KORG Nutube 6P1 x2

Decoding : Support up to 32bit / 768kHz Bit to Bit playback

Headphone Outputs : Unbalanced (3.5mm, 6.35mm) / Balanced (2.5mm, 4.4mm)

Analogue Inputs

RCA (Stereo pair) x1

Analogue Outputs

RCA (Stereo pair) x1, XLR (Stereo pair) x1

Digital Inputs

Coaxial x1, Optical x1, USB(Type-C) x1

Digital Outputs

Optical(3.5mm) x1, USB(Type-C) x1

Wi-Fi

802.11 a/b/g/n/ac (2.4/5GHz)

Bluetooth

V5.0 (A2DP, AVRCP, Qualcomm® aptX HD, LDAC)

Dimensions:

4.12"(104.9mm)[W] x 1.77"(45mm)[H] x 6.13"(155.8mm)[D]

Weight

about 980g (34.56oz)

Feature Enhancements

Firmware upgrade supported (OTA)
