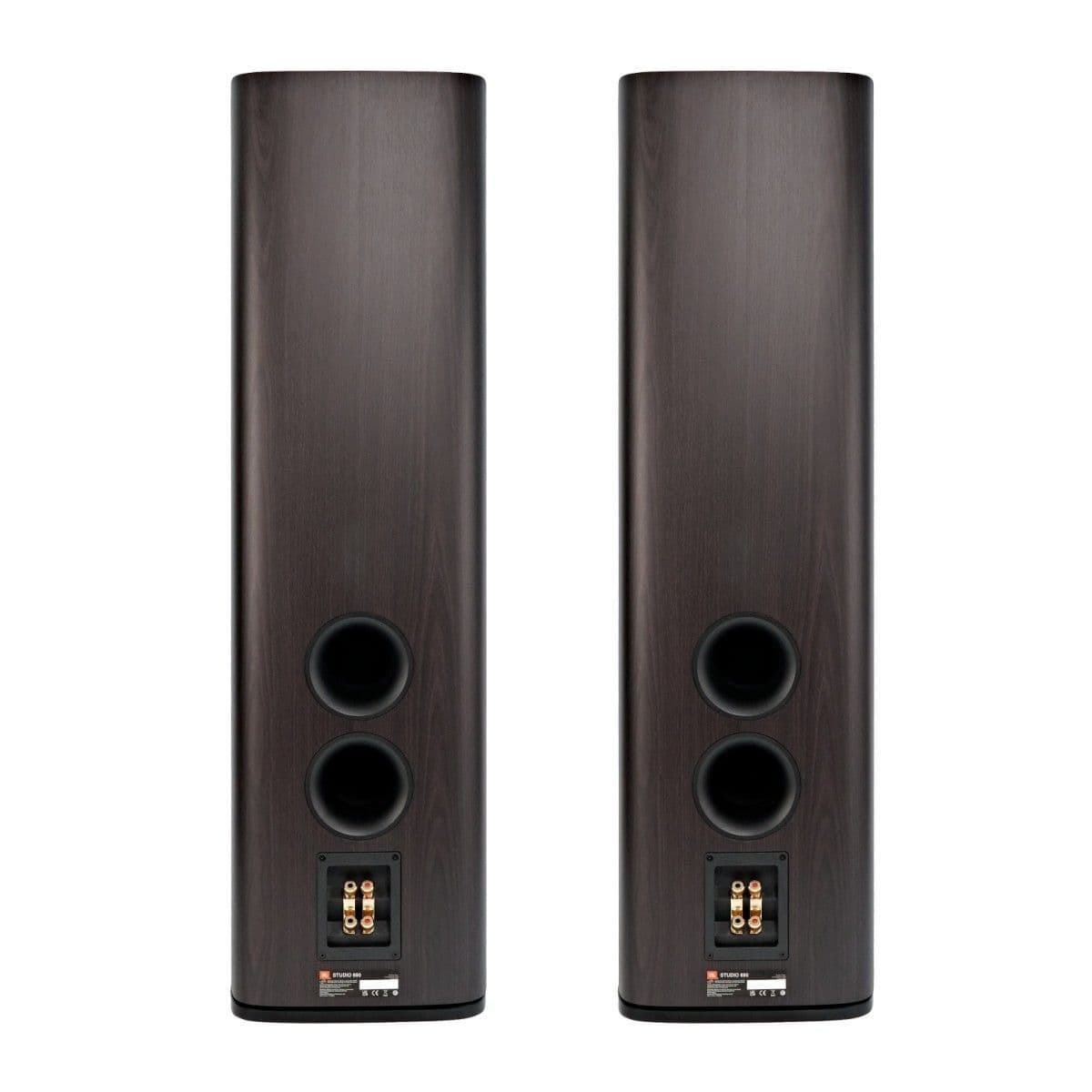

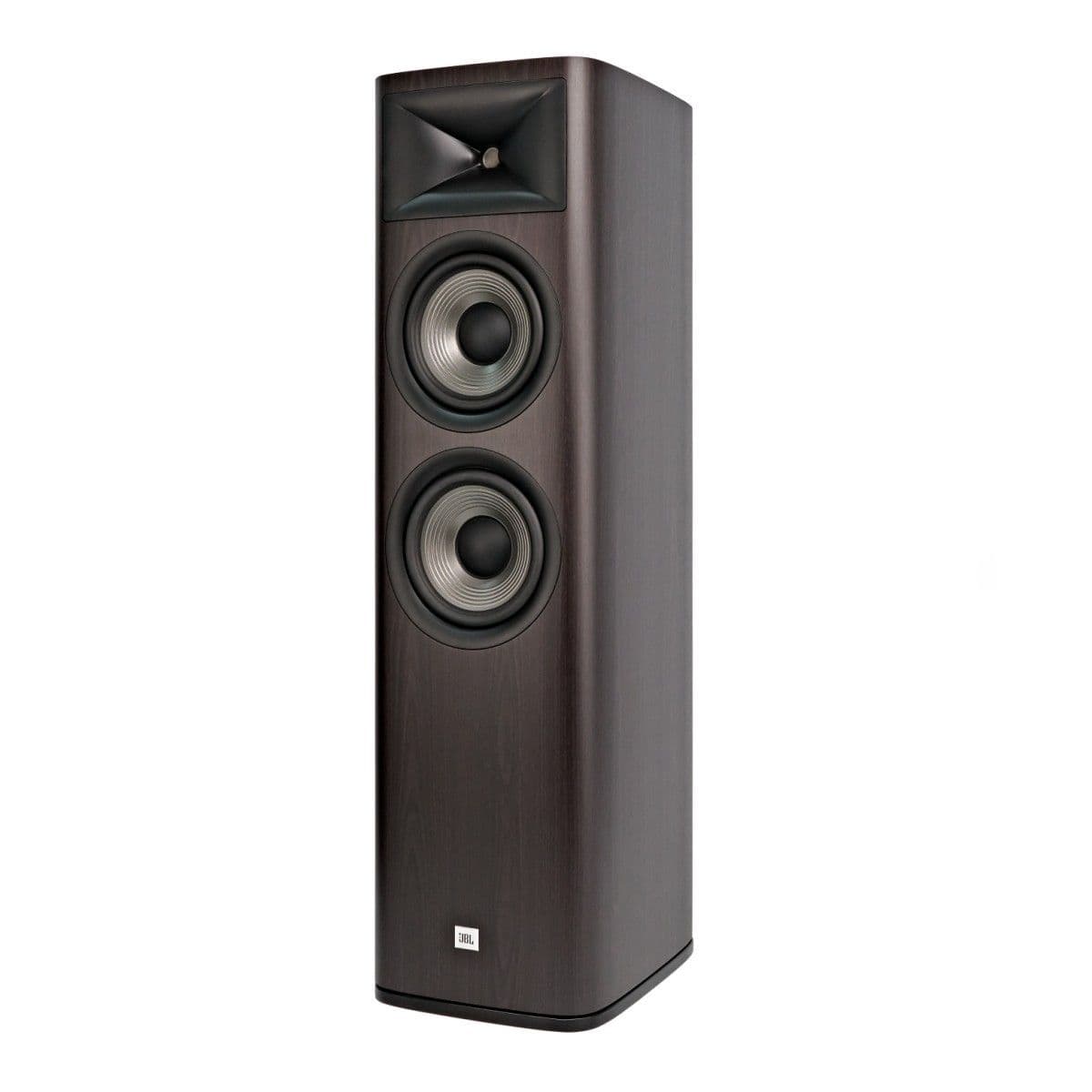

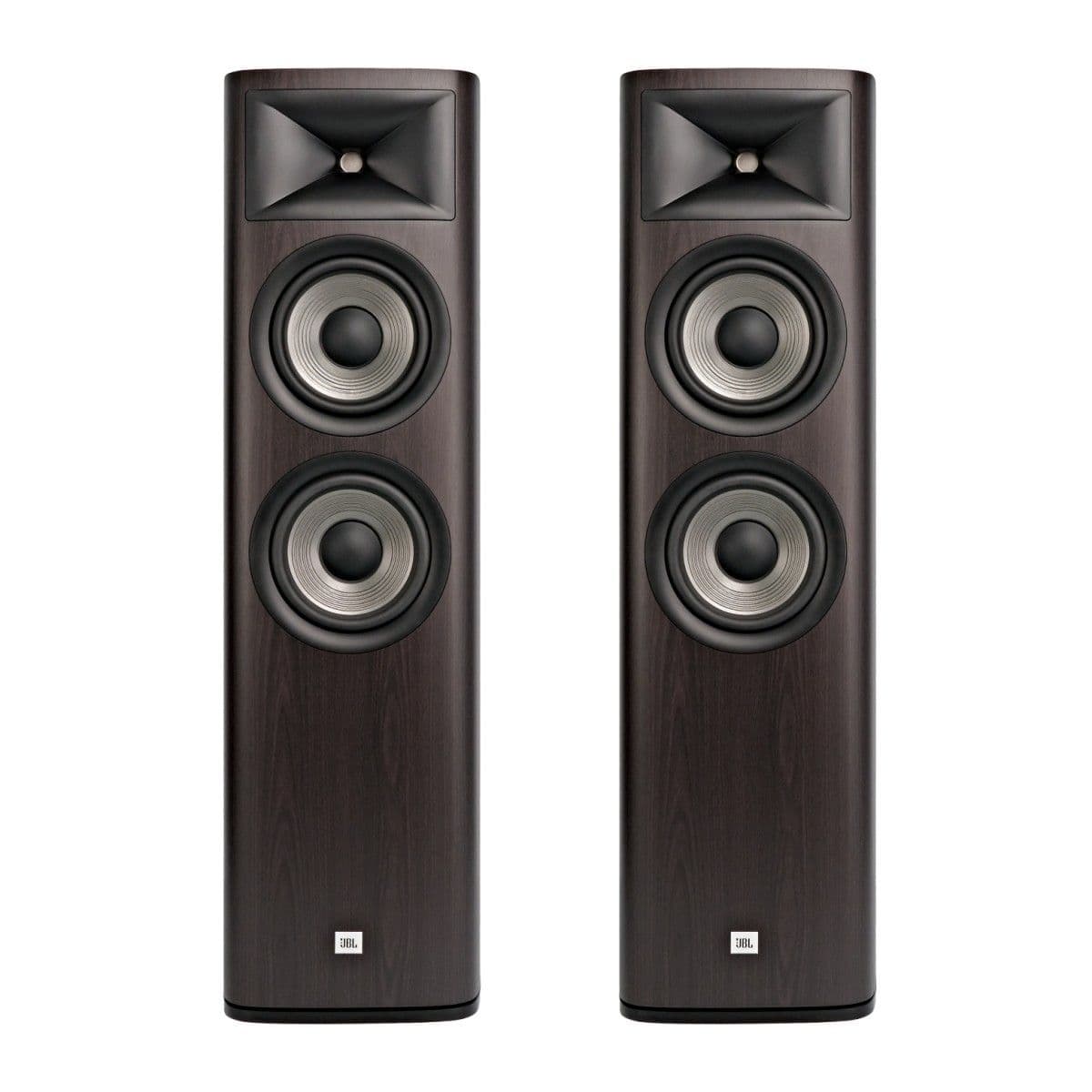

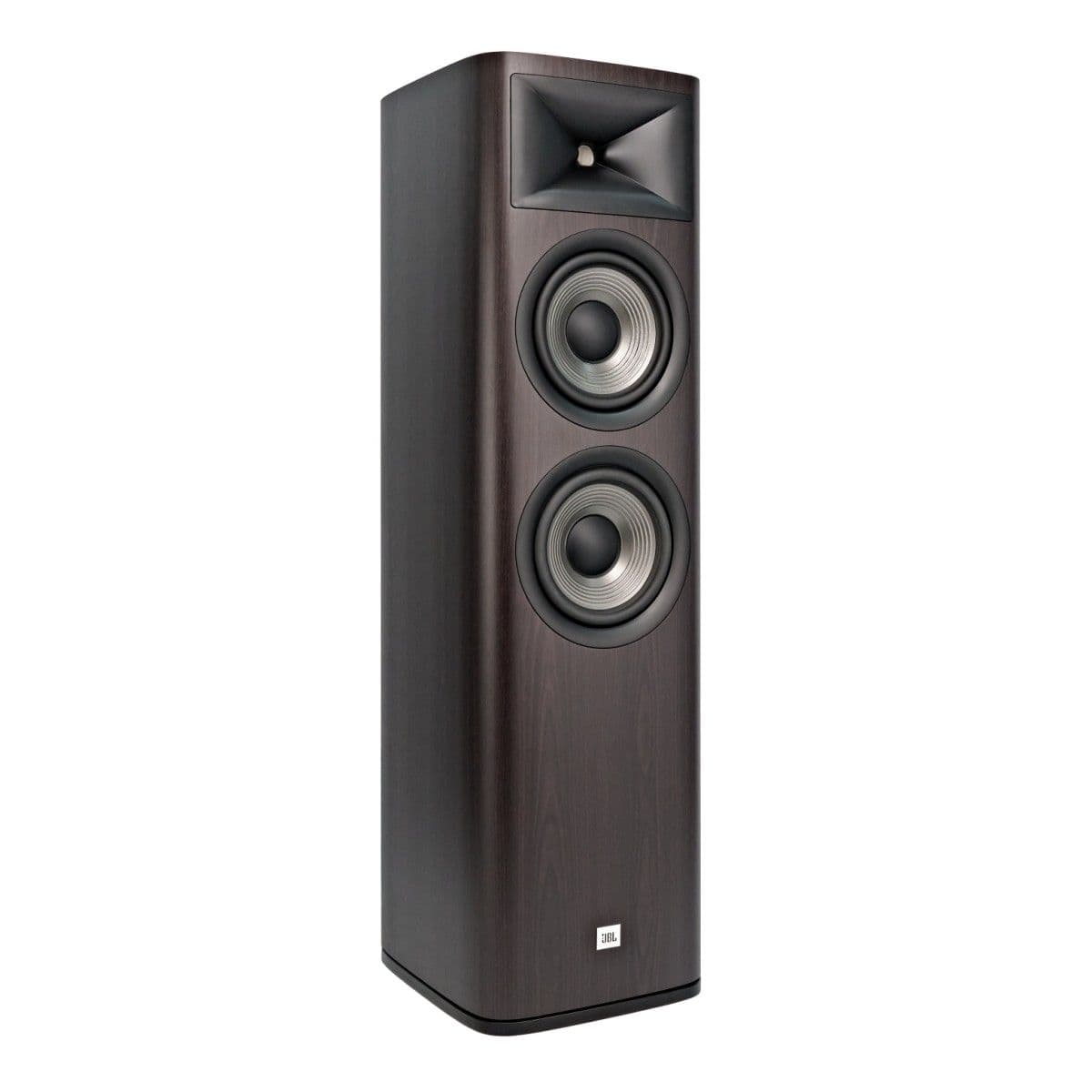

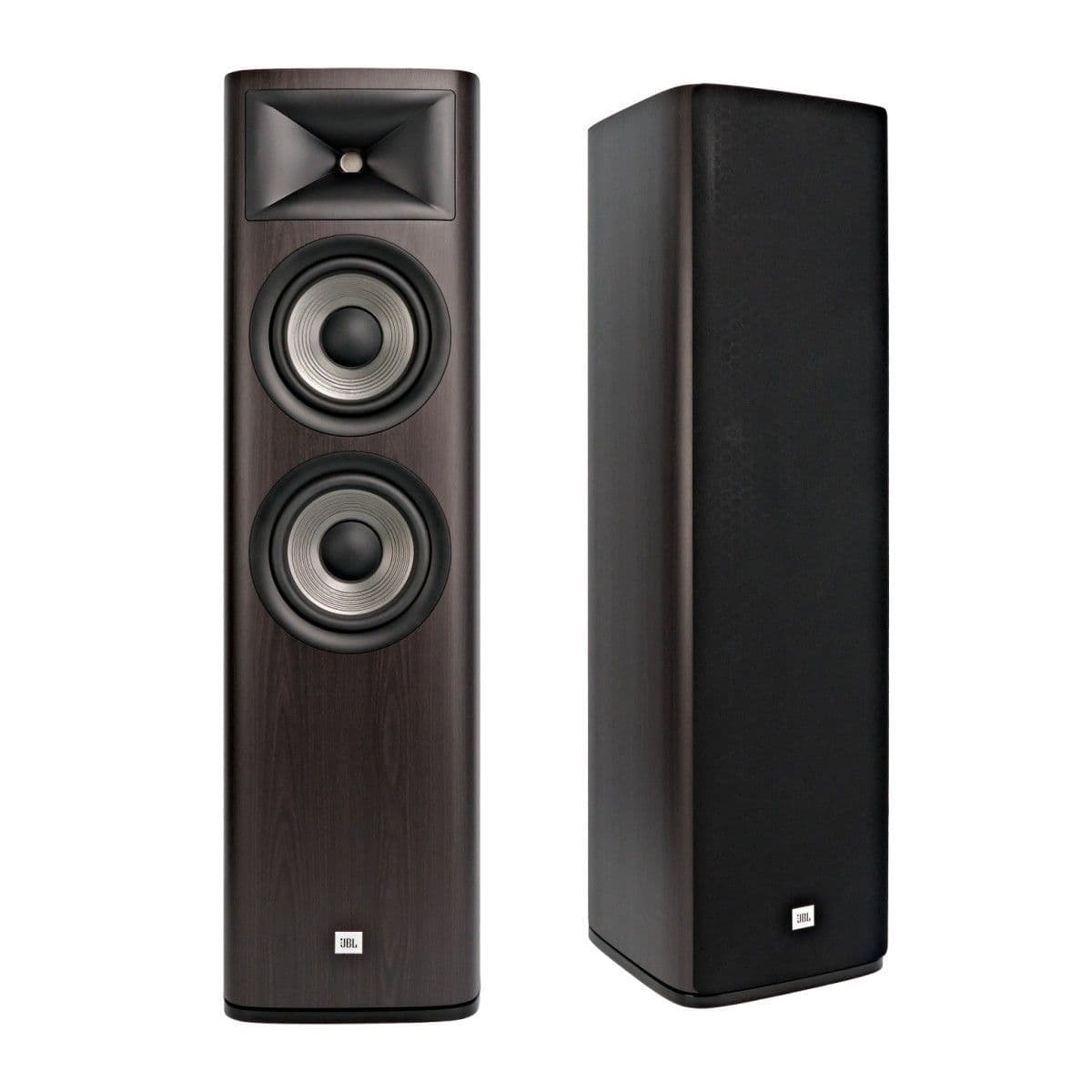

JBL Studio 690 Floorstanding Speaker (Pair) - Dark Wood Finish
JBL Studio 690 Floorstanding Speaker (Pair) - Dark Wood Finish
Estimated Shipping Widget will be displayed here!
Score: 4 / 5 Excellent
The JBL Studio 690 is a high-performance 2.5-way floorstanding loudspeaker engineered for dynamic home theater and two-channel Hi-Fi systems. Positioned as the second-largest model in JBL's Studio 6 series, the Studio 690 combines live-concert acoustic dynamics with clean, room-friendly aesthetics.
At the top of the driver array is JBL's 2414H-1 1-inch high-frequency compression driver mated to a proprietary High-Definition Imaging (HDI) horn waveguide, delivering precise stereo imaging, wide soundstage dispersion, and high clarity. Low-frequency duties are handled by dual 8-inch PolyPlas cone woofers operating in a 2.5-way crossover network and backed by a rear-firing tuned bass-reflex port, delivering controlled bass extension down to 36 Hz with low distortion.
KEY FEATURES & PROPRIETARY TECHNOLOGIES
- High-Definition Imaging (HDI) Waveguide: Horn-loaded 1-inch compression driver optimizes high-frequency dispersion and detail for live-concert acoustic accuracy.
- Dual 8-Inch PolyPlas Woofers: Low-mass, high-rigidity polymer-coated paper cones minimize driver breakup and distortion during heavy dynamic peaks.
- 2.5-Way Crossover Architecture: Dual crossover network (600 Hz and 1.7 kHz) allows both woofers to deliver low bass, while dedicated upper-midrange frequencies pass cleanly to the horn.
- Rear-Ported Bass-Reflex Enclosure: Tuned rear port minimizes turbulence and enhances low-end impact.
- Gold-Plated Binding Posts: Heavy-duty, bi-amp / bi-wire capable gold-plated binding terminals ensure optimal signal conductivity.
- Vibration Isolation Base: Sturdy cabinet construction supported by included carpet spikes and rubber feet for mechanical stability.
SPECIFICATIONS
| Product Category | 2.5-Way Floorstanding Loudspeaker |
| Brand / Series | JBL — Studio 6 Series |
| Model Designation | Studio 690 |
| High-Frequency Driver | 1" (25 mm) High-Frequency Compression Driver (JBL 2414H-1) with HDI Waveguide |
| Low-Frequency Drivers | 2 x 8" (203 mm) PolyPlas Low-Frequency Woofers |
| Crossover Frequencies | 600 Hz / 1.7 kHz |
| Frequency Response | 36 Hz – 40,000 Hz |
| Sensitivity | 90 dB @ 1m, 2.83V |
| Nominal Impedance | 6 Ohms |
| Recommended Amplifier Power | Up to 250 Watts RMS |
| Enclosure Type | Bass-Reflex via Rear-Firing Tuned Port |
| Terminal Type | Gold-Plated Binding Posts (Bi-Wire / Bi-Amp Capable) |
| Dimensions (W x D x H) | 300 x 350 x 1058 mm (11.8" x 13.8" x 41.7") |
| Net Weight | 29.38 kg (64.8 lbs) each |
| Included Accessories | Floor Spikes, Rubber Feet Pads, Magnetic Grille |
Pre-owned Terms & Condition
Pre-owned Terms & Condition
Our Grading Guarantee
All equipment listed on this site undergoes a multi-point inspection by our staff. While we use a standardised 1–5 Grading Scale, please note that "pre-owned" implies some degree of previous life. We strive for transparency and use the following terms:
- Visual Inspection: Condition grades are subjective but applied conservatively. We provide high-resolution photography of the actual unit for sale (no stock photos). We encourage buyers to zoom in on all images as they constitute part of the formal product description.
- Functional Testing: Unless labelled Grade 1 , all units have been tested for power, input/output integrity, and basic mechanical operation. Vintage units (20+ years) are tested for "period-appropriate" functionality; unless specified, internal components like capacitors are original.
- "Fair" Exclusions: Items graded 1 (Fair) are sold strictly for parts or repair. These items are ineligible for returns, refunds, or "Item Not as Described" claims regarding their condition.
- Return Window: If a unit arrives in a condition significantly different than its assigned grade (e.g., a Grade 4 unit arrives with a shattered faceplate), you must notify us within 24 hours of delivery.
Condition Grading Guide
Condition Grading Guide
Mint
Visually and mechanically indistinguishable from a new unit.
Excellent
Extremely clean. The item has been handled with care and shows only the slightest signs of use.
Very Good
Looks "used" but has been respected.
Good
Functional, but shows its age.
Fair
Functional, but may have some damage or missing parts.
